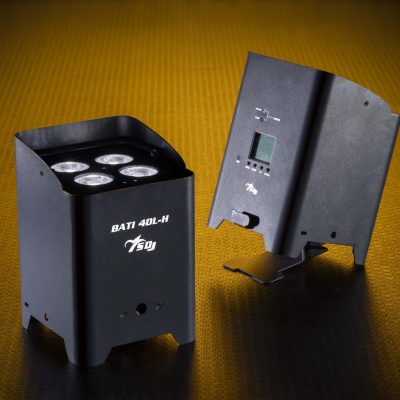

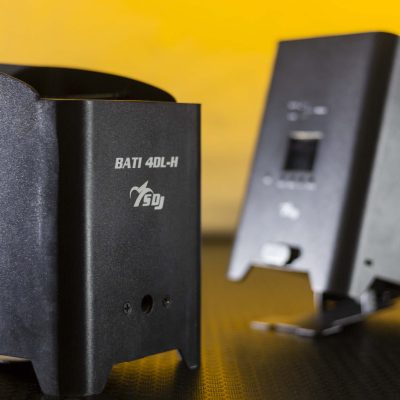

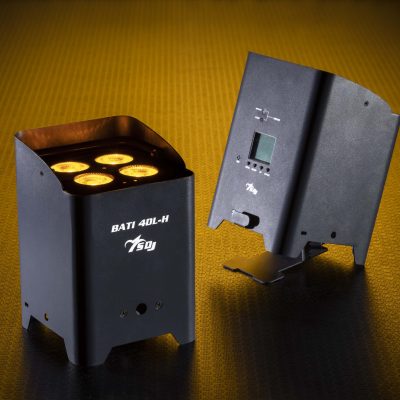

Bati 4 DLH is a portable battery projector, which offers a large number of cuttingedge technological solutions. As LED source has been choosed one of the strongest and most effective already used in successful lines as Slimpar and Slimbar, it is a source comprising 4 LED of 12W with DL technology (dark light) RGBWA-UV full color 6 in 1, able of satisfy even the most complex color requirements. Power is provided by a lithium, high capacity battery, that makes this projector truly portable and can be recharged many times, avoiding the “memory” effect. There are four control possibilities of Bati 4 DL: DMX with cable, IRC (remote control included), Wireless DMX, WIFI (directly from your smartphone or tablet without the need for external uncomfortable hardware).
| Light source | 4x12W led RGBWA-UV LED lifespan: > 50.000h LED refresh frequency: > 400Hz flicker-free |
| Optic system | Beam Angle: 15° |
| Color system | LED source RGBWA-UV Infinite chromatic possibilities |
| Effects | Linear dimmer 0-100% Adjustable strobe effect Static color mode: manual adjustment for each color Manual color mode: static built-in color macros Auto mode: built-in automatic programs with adjustable speed Sound mode: sound activation with internal microphone with adjustable sensitivity |
| Control and programming | 3 DMX configurations available: 6/6b/10 channels Protocol USITT DMX 512 Built-in Wi-Fi protocol for direct control by smartphone with App Built-in DMX wireless transceiver (DMX wireless transmitter SG BATI4TX, sold separately) Remote controller included Master/Slave mode Auto mode |

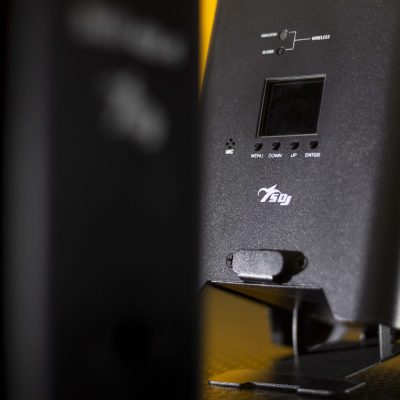

| Structure and cabinet | Metal housing LCD color graphic display “Light up” positioning with adjustable angle IP rating: IP20 3-poles DMX IN/OUT Convection cooling system without fans |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz, for normal working and battery recharge Switching power supply unit Internal rechargeable battery: 14,8VDC Capacity: 7,8 Ah Runtime battery: ~ 5 hrs (full ON) Charging cycle: ~ 5 hrs (Projector off ) Power consumption: 50W @ 230VAC Power IN/OUT connection with powerCON socket |
| Weight and dimensions | Net weight: 3,5 kg Dimensions: 140x140x205 mm |
