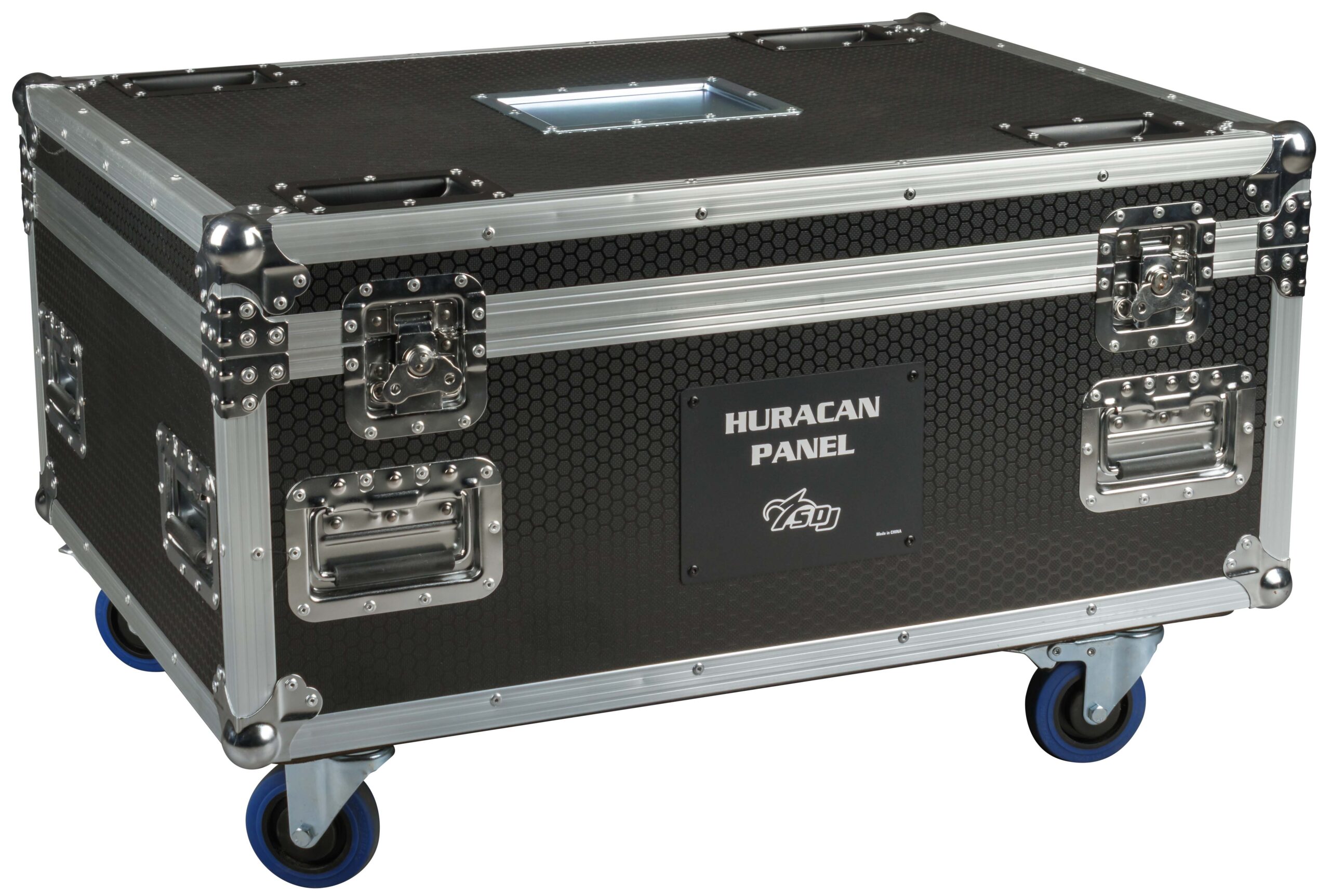

Case for Huracan Strobe Panel
| Light source | 1350×0,5W SMD 5050 RGBW LEDs LED lifespan: > 50.000h |
| Optic system | Beam Angle: 120° Luminous flux of RED: 58,3 lux @ 5m Luminous flux of GREEN: 139,4 lux @ 5m Luminous flux of BLUE: 41,7 lux @ 5m Luminous flux of WHITE: 281,0 lux @ 5m Luminous flux of FULL ON: 461,1 lux @ 5m |
| Color system | Led RGBW |
| Effects | Electronic dimmer 0-100% High speed electronic strobe, pulse, single sectors FX with adjustable speed, duration and rate 30 controllable sections 127 dynamic and static patterns with adjustable speed and fades Foreground and background virtual colour wheels CTC from 2500K to 10000K Color macros selectable via DMX |
| Control and programming | 4 DMX configurations available: 4/6/15/120 channels Protocol USITT DMX 512, RDM Plate sectors mapping swap by DMX Master/Slave mode |
| Structure and cabinet | Die cast aluminium housing LED display red color Front tempered glass Mounting points: 2 pairs of 1/4-turn locks omega bracket IP rating: IP65 DMX 3-poles XLR IN/OUT IP65 connectors Forced air cooling system with electronic fans control |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Max power: 360W @ 230VAC Seetronic X Series IP65 Power Connectors IN/OUT Power supply cable 1,0 mt included |
| Weight and dimensions | Net weight: 11,7 kg Dimensions: 525x145x280(h) mm |
| Light source | 1350×0,5W SMD 5050 RGBW LEDs LED lifespan: > 50.000h |
| Optic system | Beam Angle: 120° Luminous flux of RED: 58,3 lux @ 5m Luminous flux of GREEN: 139,4 lux @ 5m Luminous flux of BLUE: 41,7 lux @ 5m Luminous flux of WHITE: 281,0 lux @ 5m Luminous flux of FULL ON: 461,1 lux @ 5m |
| Color system | Led RGBW |
| Effects | Electronic dimmer 0-100% High speed electronic strobe, pulse, single sectors FX with adjustable speed, duration and rate 30 controllable sections 127 dynamic and static patterns with adjustable speed and fades Foreground and background virtual colour wheels CTC from 2500K to 10000K Color macros selectable via DMX |
| Control and programming | 4 DMX configurations available: 4/6/15/120 channels Protocol USITT DMX 512, RDM Plate sectors mapping swap by DMX Master/Slave mode |
| Structure and cabinet | Die cast aluminium housing LED display red color Front tempered glass Mounting points: 2 pairs of 1/4-turn locks omega bracket IP rating: IP65 DMX 3-poles XLR IN/OUT IP65 connectors Forced air cooling system with electronic fans control |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Max power: 360W @ 230VAC Seetronic X Series IP65 Power Connectors IN/OUT Power supply cable 1,0 mt included |
| Weight and dimensions | Net weight: 11,7 kg Dimensions: 525x145x280(h) mm |
