WECON USB PEN wireless DMX receiver
| Light source | 1x250W white led high brightness Color temperature: 8500K LED lifespan: > 50.000h LED refresh frequency: > 400Hz flicker-free |
| Optic system | Beam Angle: zoom from 9° to 36° Electronic focus Luminous flux: 16000 lux @ 5mt (9°) |
| Color system | Color wheel with 7 colors + white |
| Effects | 6 dichroic rotating gobos, the gobos are interchangeable with the “plug & play” system. Gobo size 23mm / focus 18mm Bidirectional rotating and indexable gobos Gobo shacking effect Gobo scroll effect with adjustable speed Gobo wheel: 8 metal static gobos + white 3-facets circular rotating prism with adjustable speed Color rainbow effect High speed and precision Zoom Linear dimmer 0-100% High speed electronic strobe max.25 flashes/s, with adjustable speed Random strobe and pulse dimmer effects with adjustable speed |
| Control and programming | 3 DMX configurations available: 14/16/18 channels Protocol USITT DMX 512 Pan&Tilt 8/16 bit selectable Master/Slave mode Reset via DMX |

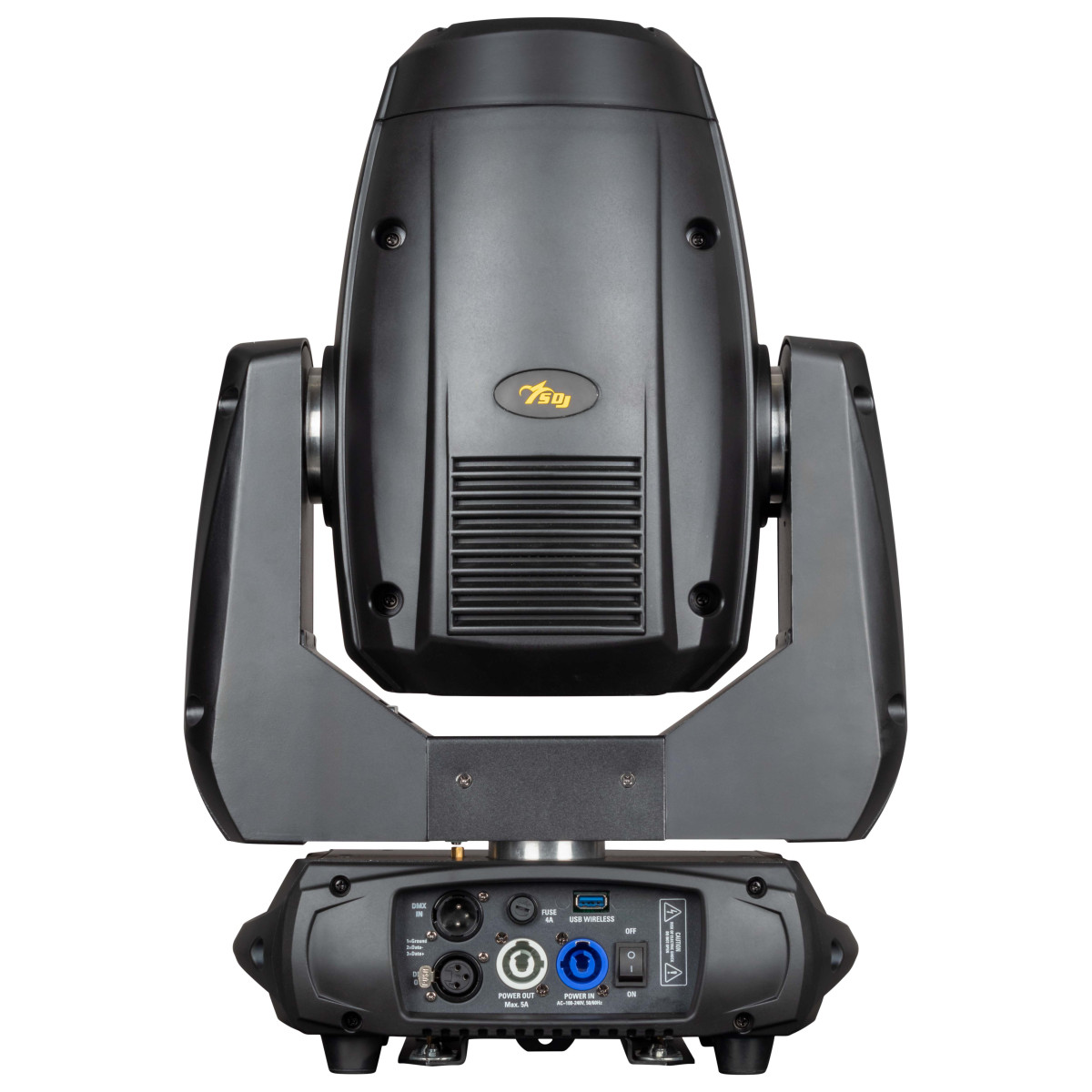

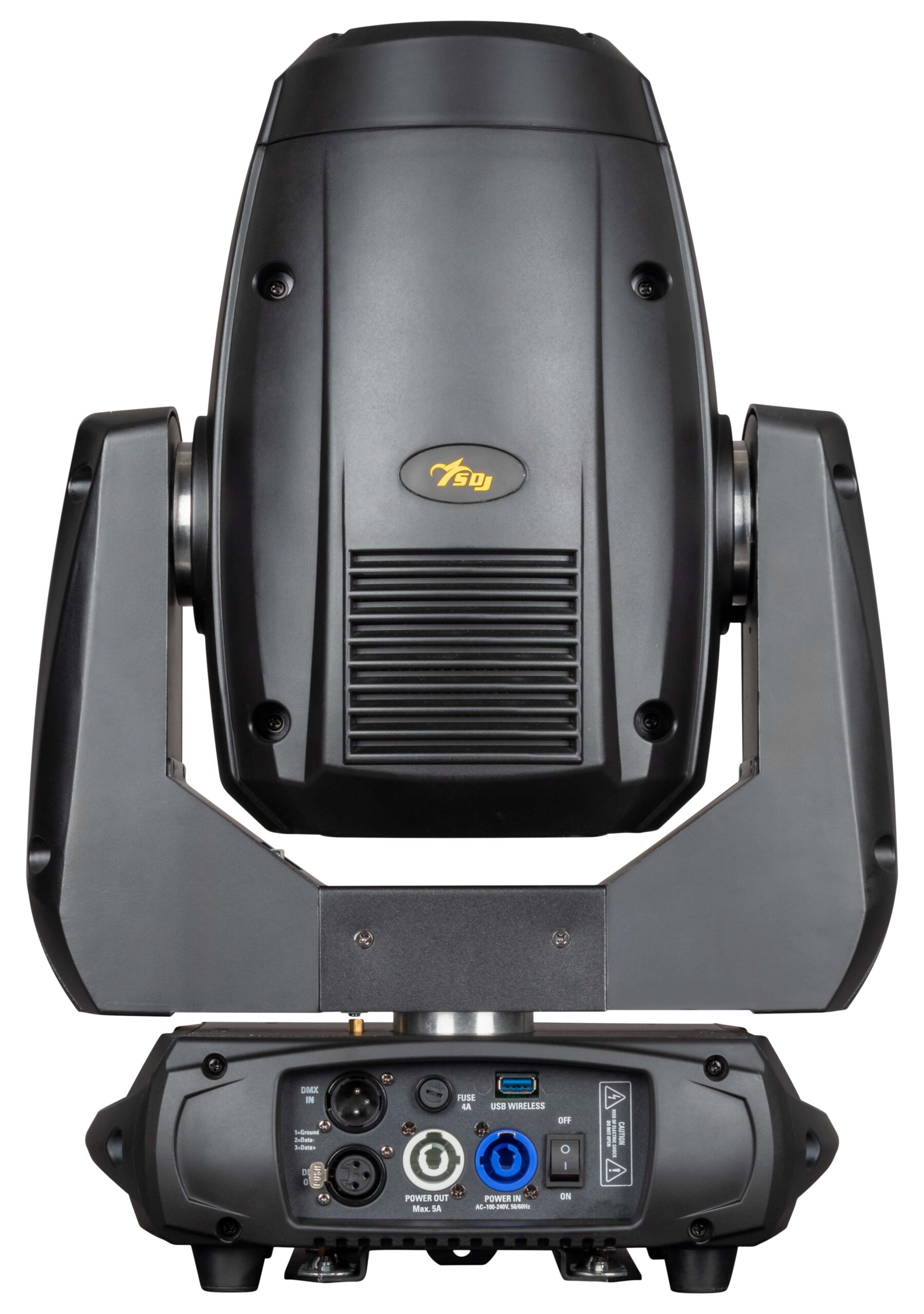

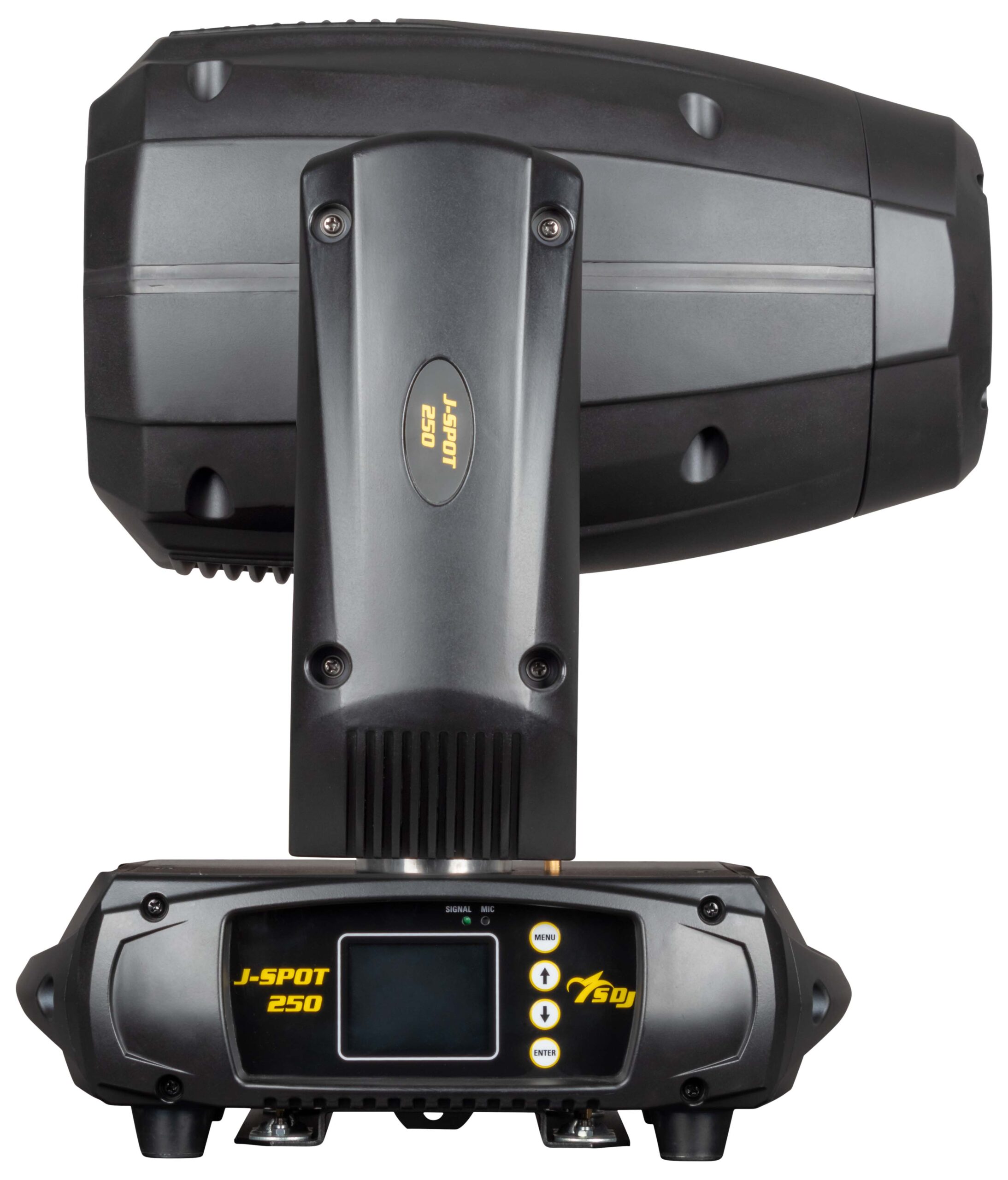

| Structure and cabinet | Black metal housing and high resistance plastic ABS materials Color LCD display Selectable Pan angle 360° / 540° / 630° Selectable tilt angle 90° / 180° / 270° Mounting points: 1 pairs of 1/4-turn locks omega older Automatic repositioning of Pan and Tilt XLR 3-poles DMX IN/OUT connection USB port for optional wireless DMX receiver (order code: SG WECONUSB) IP rating: IP20 Forced air cooling system with electronic control |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Max power: 320W @ 230VAC Power input with PowerCON connector Power supply cable 1,0 mt included |
| Weight and dimensions | Net weight: 14,2 kg Dimensions: 357x224x505 mm |
| Light source | 1x250W white led high brightness Color temperature: 8500K LED lifespan: > 50.000h LED refresh frequency: > 400Hz flicker-free |
| Optic system | Beam Angle: zoom from 9° to 36° Electronic focus Luminous flux: 16000 lux @ 5mt (9°) |
| Color system | Color wheel with 7 colors + white |
| Effects | 6 dichroic rotating gobos, the gobos are interchangeable with the “plug & play” system. Gobo size 23mm / focus 18mm Bidirectional rotating and indexable gobos Gobo shacking effect Gobo scroll effect with adjustable speed Gobo wheel: 8 metal static gobos + white 3-facets circular rotating prism with adjustable speed Color rainbow effect High speed and precision Zoom Linear dimmer 0-100% High speed electronic strobe max.25 flashes/s, with adjustable speed Random strobe and pulse dimmer effects with adjustable speed |
| Control and programming | 3 DMX configurations available: 14/16/18 channels Protocol USITT DMX 512 Pan&Tilt 8/16 bit selectable Master/Slave mode Reset via DMX |
| Structure and cabinet | Black metal housing and high resistance plastic ABS materials Color LCD display Selectable Pan angle 360° / 540° / 630° Selectable tilt angle 90° / 180° / 270° Mounting points: 1 pairs of 1/4-turn locks omega older Automatic repositioning of Pan and Tilt XLR 3-poles DMX IN/OUT connection USB port for optional wireless DMX receiver (order code: SG WECONUSB) IP rating: IP20 Forced air cooling system with electronic control |
| Power supply | Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Max power: 320W @ 230VAC Power input with PowerCON connector Power supply cable 1,0 mt included |
| Weight and dimensions | Net weight: 14,2 kg Dimensions: 357x224x505 mm |
