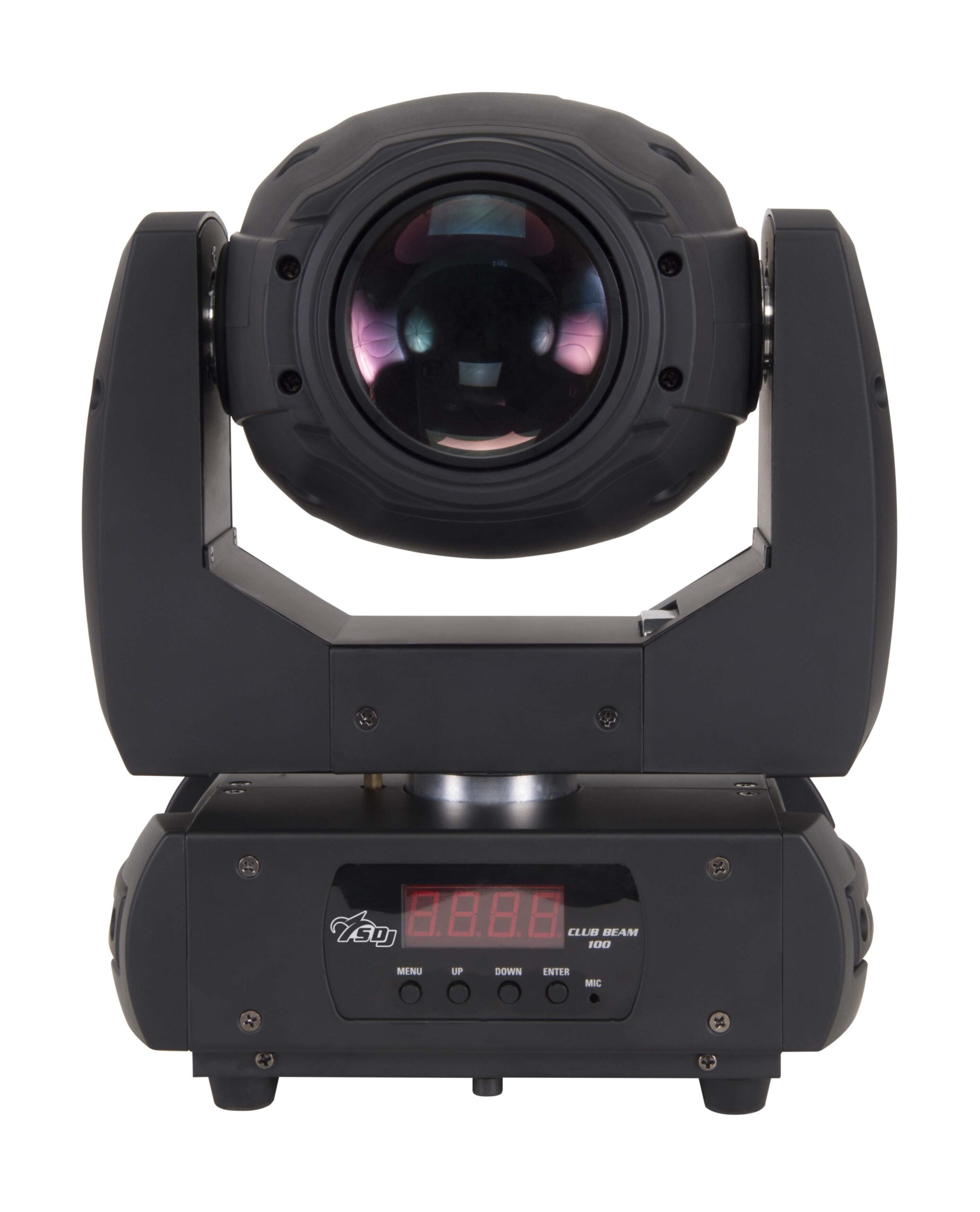

| Light source | 1x100W white led high brightness Color temperature 5600K LED lifespan: >50.000h LED Refresh frequency: >400Hz flicker-free |
| Optic system | Beam angle: 4° Electronic focus Luminous flux: 21300 lux @5mt (4°) |
| Color system | Color wheel with 14 colors + white |
| Effects | Gobo wheel: 17 fixed gobos Bidirectional gobo scroll with adjustable speed 8-facet rotating prism with adjustable speed Color rainbow effect in both directions Linear dimmer 0 – 100% High speed electronic strobe max.25 flashes/s, with adjustable speed Random strobe and pulse dimmer effects with adjustable speed |
| Control and programming | 2 DMX configurations available: 10/12 channels Protocol USITT DMX 512 Pan&Tilt 8/16 bit selectable Master / Slave mode Sound mode with adjustable microphone sensitivity Auto mode with 7 internal programs selectable from display Reset via DMX |

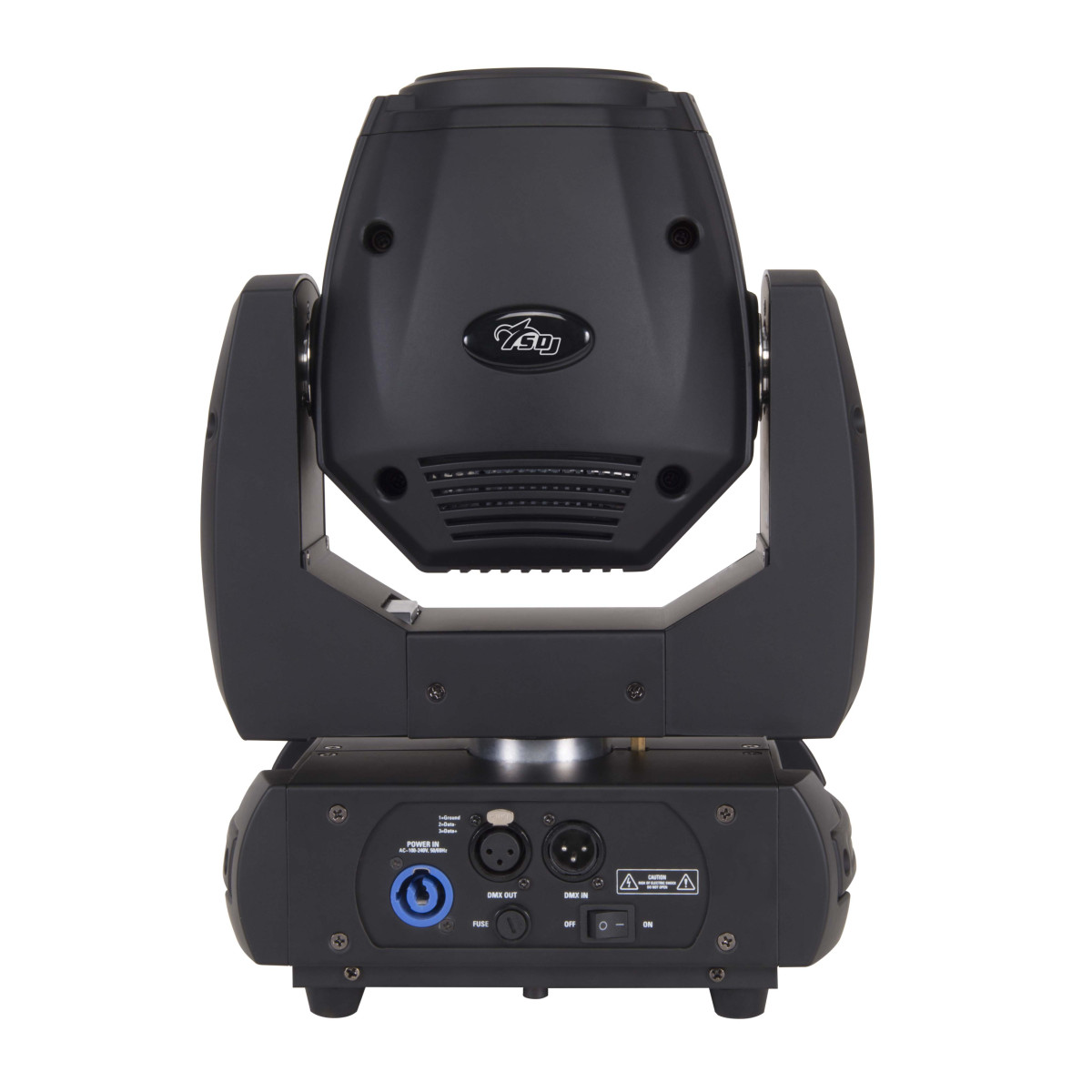

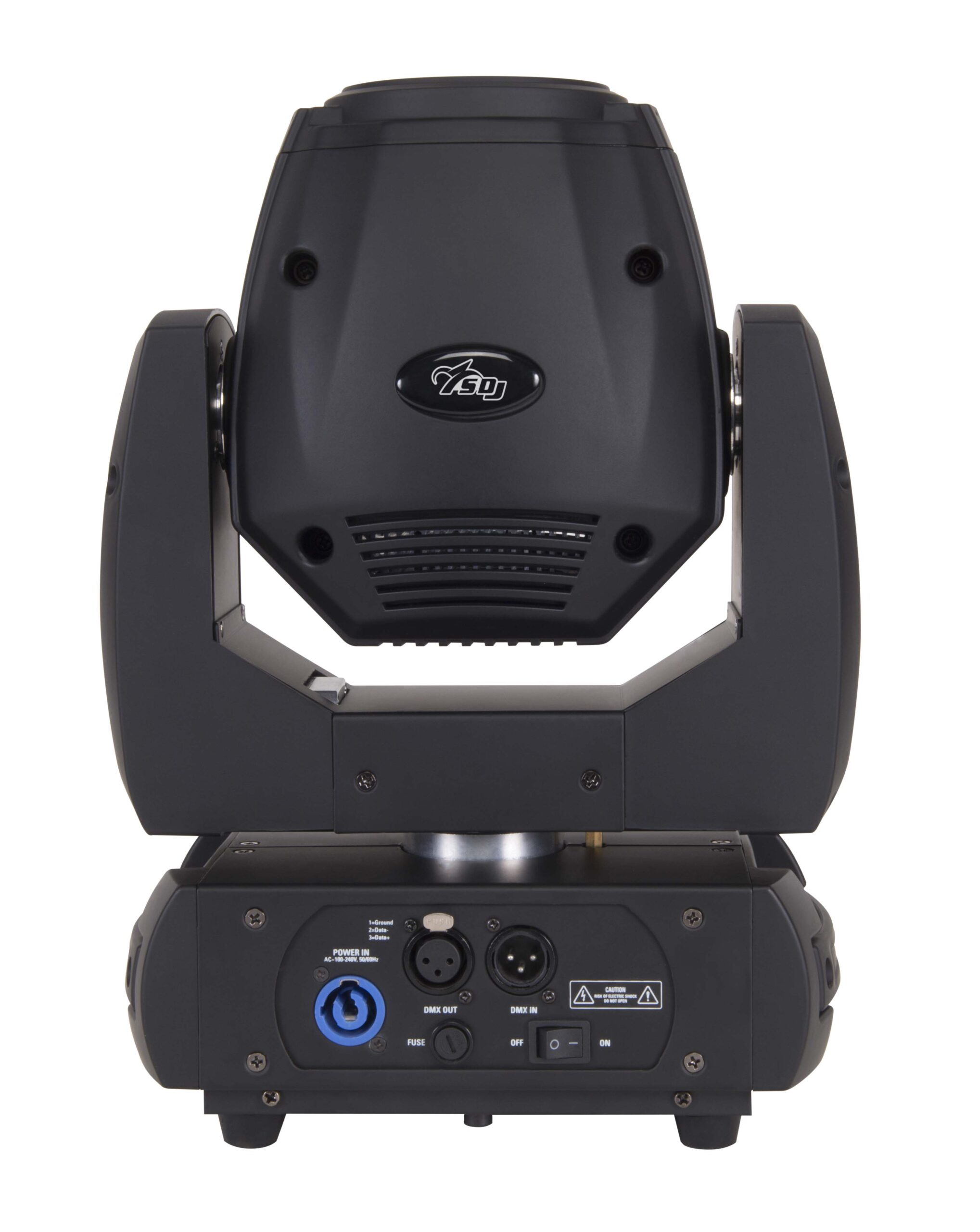

| Structure and cabinet | Black aluminium/metal Housing, and plastic materials with high resistance Red LED display 3 different Pan&Tilt angle presets: PAN 360°-540°-630°, TILT 90°-180°-270° Mounting points with 1 omega holder Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit 3-poles XLR in/out connection IP Rating: IP 20 Forced air fan cooling system with electronic control |
| Power supply | Input Voltage: AC~100-240V 50/60Hz Switching power supply unit Max power: 120W @ 230VAC IN power connection with powerCON sockets Power supply cable 1,5 mt included |
| Weight and dimensions | Net weight: 7,3 kg Dimensions:: 270x149x364 mm |
| Light source | 1x100W white led high brightness Color temperature 5600K LED lifespan: >50.000h LED Refresh frequency: >400Hz flicker-free |
| Optic system | Beam angle: 4° Electronic focus Luminous flux: 21300 lux @5mt (4°) |
| Color system | Color wheel with 14 colors + white |
| Effects | Gobo wheel: 17 fixed gobos Bidirectional gobo scroll with adjustable speed 8-facet rotating prism with adjustable speed Color rainbow effect in both directions Linear dimmer 0 – 100% High speed electronic strobe max.25 flashes/s, with adjustable speed Random strobe and pulse dimmer effects with adjustable speed |
| Control and programming | 2 DMX configurations available: 10/12 channels Protocol USITT DMX 512 Pan&Tilt 8/16 bit selectable Master / Slave mode Sound mode with adjustable microphone sensitivity Auto mode with 7 internal programs selectable from display Reset via DMX |
| Structure and cabinet | Black aluminium/metal Housing, and plastic materials with high resistance Red LED display 3 different Pan&Tilt angle presets: PAN 360°-540°-630°, TILT 90°-180°-270° Mounting points with 1 omega holder Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit 3-poles XLR in/out connection IP Rating: IP 20 Forced air fan cooling system with electronic control |
| Power supply | Input Voltage: AC~100-240V 50/60Hz Switching power supply unit Max power: 120W @ 230VAC IN power connection with powerCON sockets Power supply cable 1,5 mt included |
| Weight and dimensions | Net weight: 7,3 kg Dimensions:: 270x149x364 mm |
