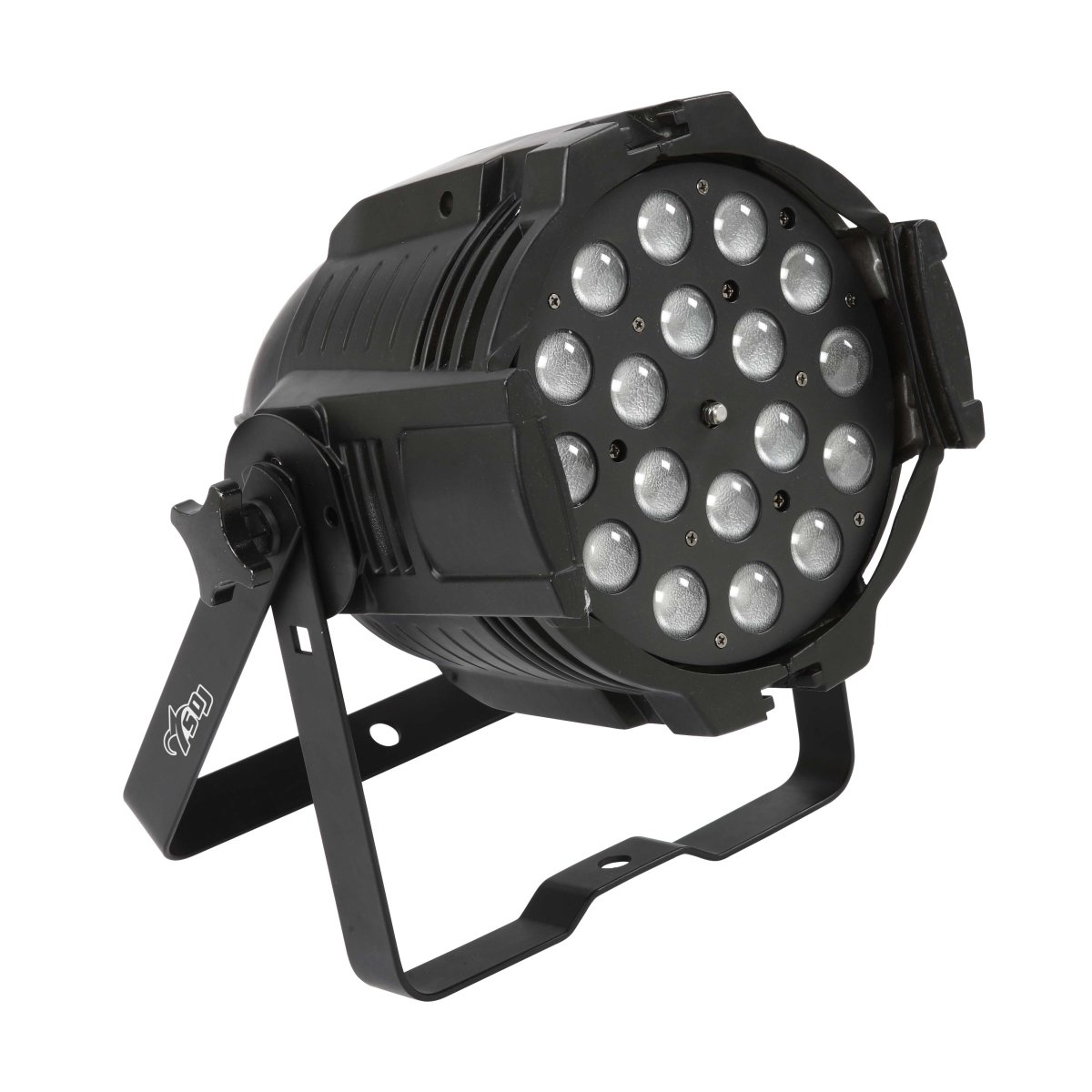

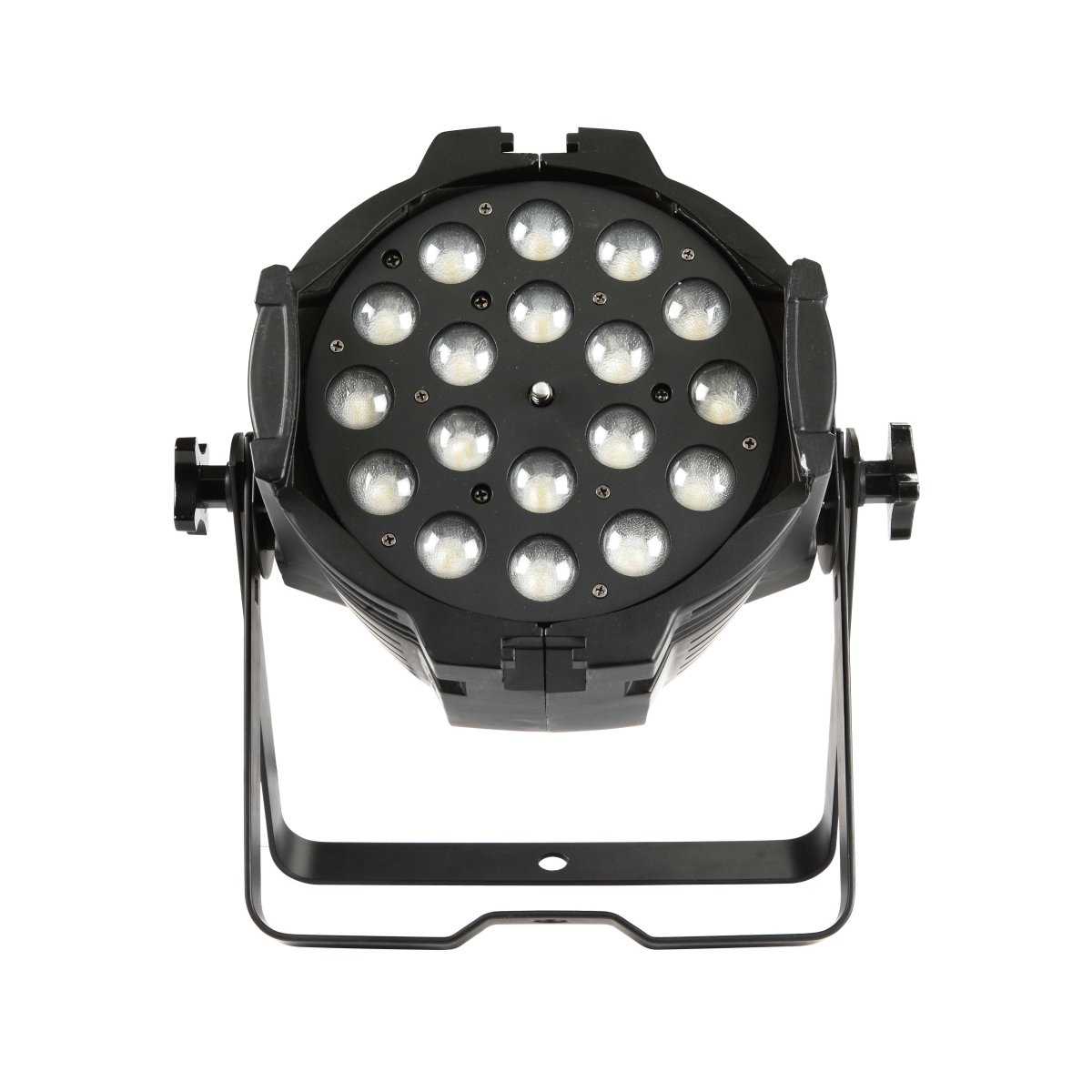

HTZLEDC is a projector with LED source designed for the various needs of rental companies, featuring a versatile concept for the lighting professional and amateur stages. Thanks to its light source consisting of 18 8W RGBW/FC LED and the 15° – 60° optical zoom, it is possible to cover and illuminate large areas by simply adjusting the width of its beam via a DMX control.
| Light source | 18x8W led RGBW Full Color LED lifespan: >50.000h LED refresh frequency: >400Hz flicker free |
| Optic system | Beam angle: zoom from 15° to 60° Luminous flux: 2250 lux @3mt (15°) |
| Color system | LED source 4 in 1 RGBW Full Color Infinite chromatic possibilities and colour temperature control Color macros can be recalled by DMX |
| Effects | Linear Dimmer 0-100% Electronic strobe: 1-25 flashes/s with adjustable speed |
| Control and programming | 6 DMX configurations available: 5/6/6/7/3/13 channels 4 selectable dimmer curves Protocol USITT DMX 512 Master / Slave mode Sound mode with adjustable mic sensitivity Static color mode with independent adjustment of strobe Automatic mode with 10 different programs selectable from the display with independent adjustment of the speed and strobe Color mode with different pre-programmed color macros |

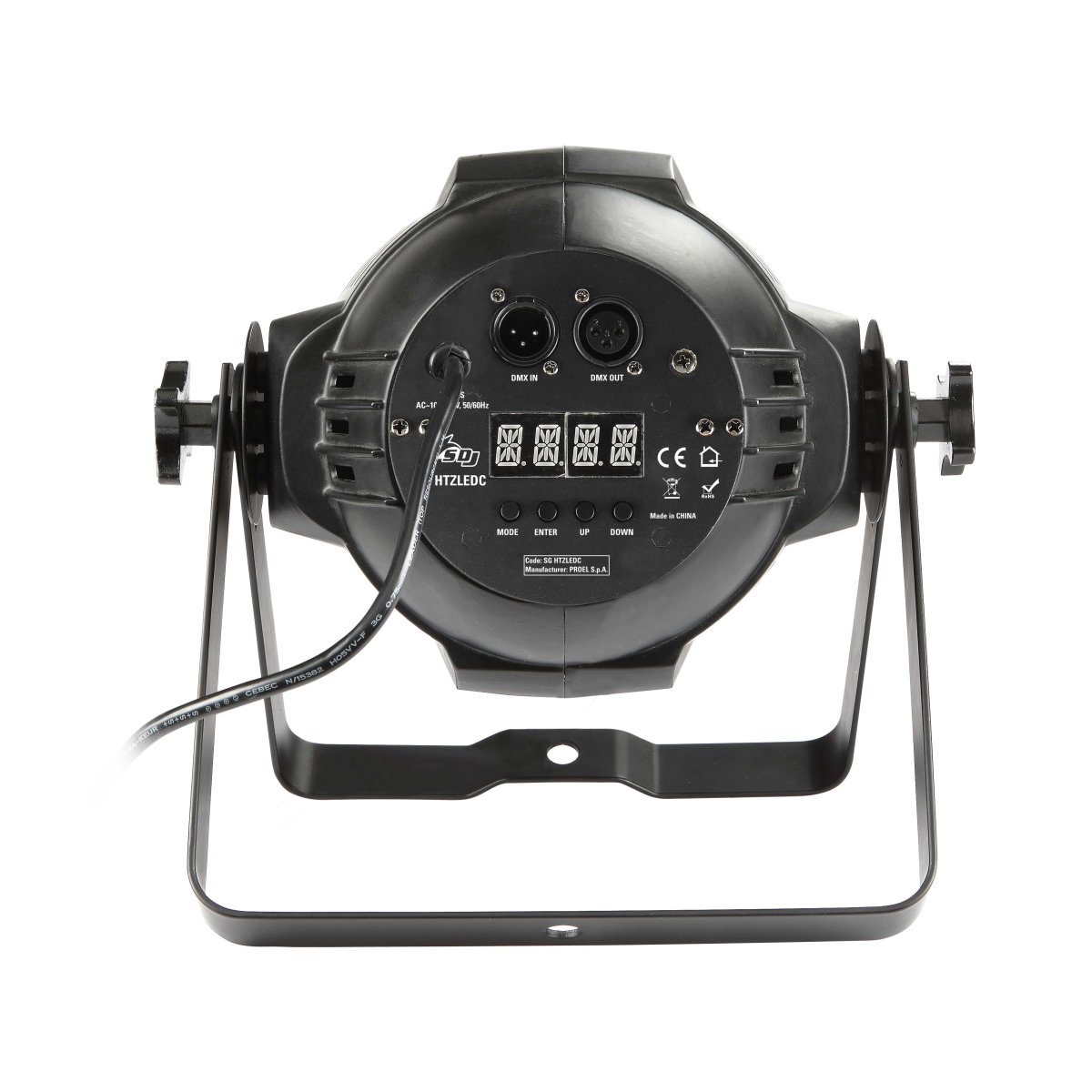

| Structure and cabinet | Die cast aluminium black color Red LED display Mounting points: double adjustable bracket 3-poles XLR in/out connection IP rating: IP 20 Forced air fan cooling system |
| Power supply | Input Voltage: AC~100-240V 50/60Hz Switching power supply unit Power consumption 160W |
| Weight and dimensions | Net weight: 4 kg Dimensions: 325x310x216 mm |
HTZLEDC is a projector with LED source designed for the various needs of rental companies, featuring a versatile concept for the lighting professional and amateur stages. Thanks to its light source consisting of 18 8W RGBW/FC LED and the 15° – 60° optical zoom, it is possible to cover and illuminate large areas by simply adjusting the width of its beam via a DMX control.
| Light source | 18x8W led RGBW Full Color LED lifespan: >50.000h LED refresh frequency: >400Hz flicker free |
| Optic system | Beam angle: zoom from 15° to 60° Luminous flux: 2250 lux @3mt (15°) |
| Color system | LED source 4 in 1 RGBW Full Color Infinite chromatic possibilities and colour temperature control Color macros can be recalled by DMX |
| Effects | Linear Dimmer 0-100% Electronic strobe: 1-25 flashes/s with adjustable speed |
| Control and programming | 6 DMX configurations available: 5/6/6/7/3/13 channels 4 selectable dimmer curves Protocol USITT DMX 512 Master / Slave mode Sound mode with adjustable mic sensitivity Static color mode with independent adjustment of strobe Automatic mode with 10 different programs selectable from the display with independent adjustment of the speed and strobe Color mode with different pre-programmed color macros |
| Structure and cabinet | Die cast aluminium black color Red LED display Mounting points: double adjustable bracket 3-poles XLR in/out connection IP rating: IP 20 Forced air fan cooling system |
| Power supply | Input Voltage: AC~100-240V 50/60Hz Switching power supply unit Power consumption 160W |
| Weight and dimensions | Net weight: 4 kg Dimensions: 325x310x216 mm |
