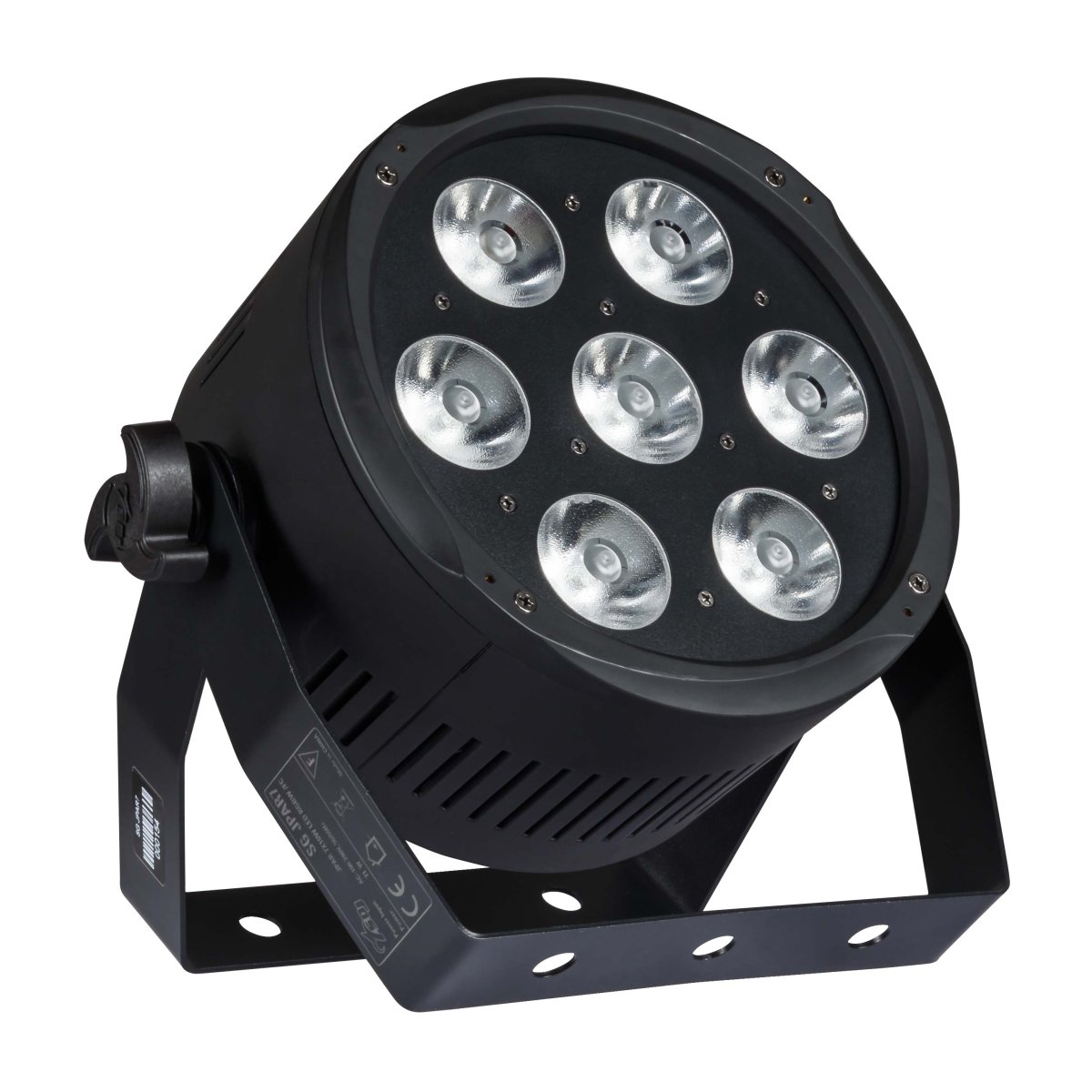

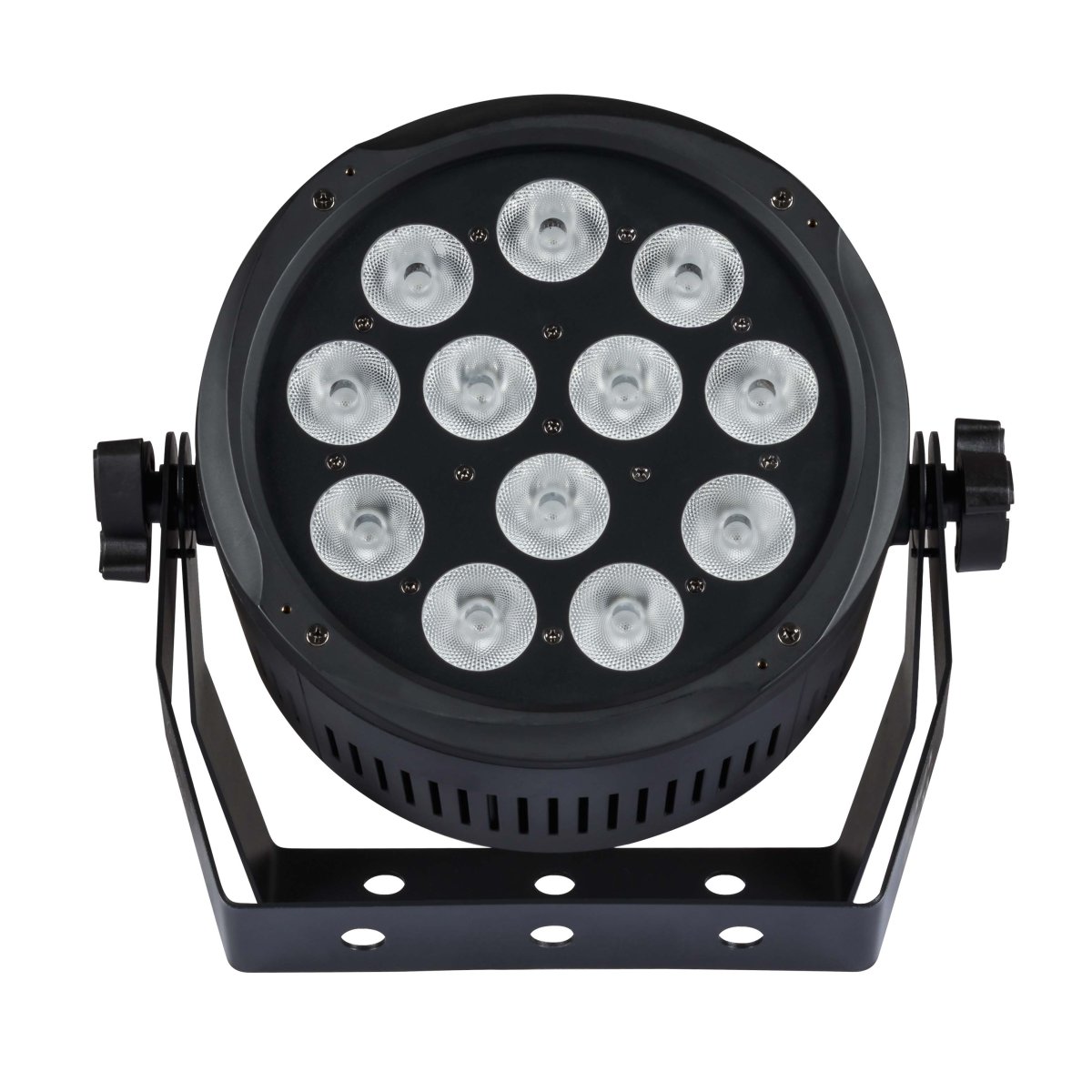

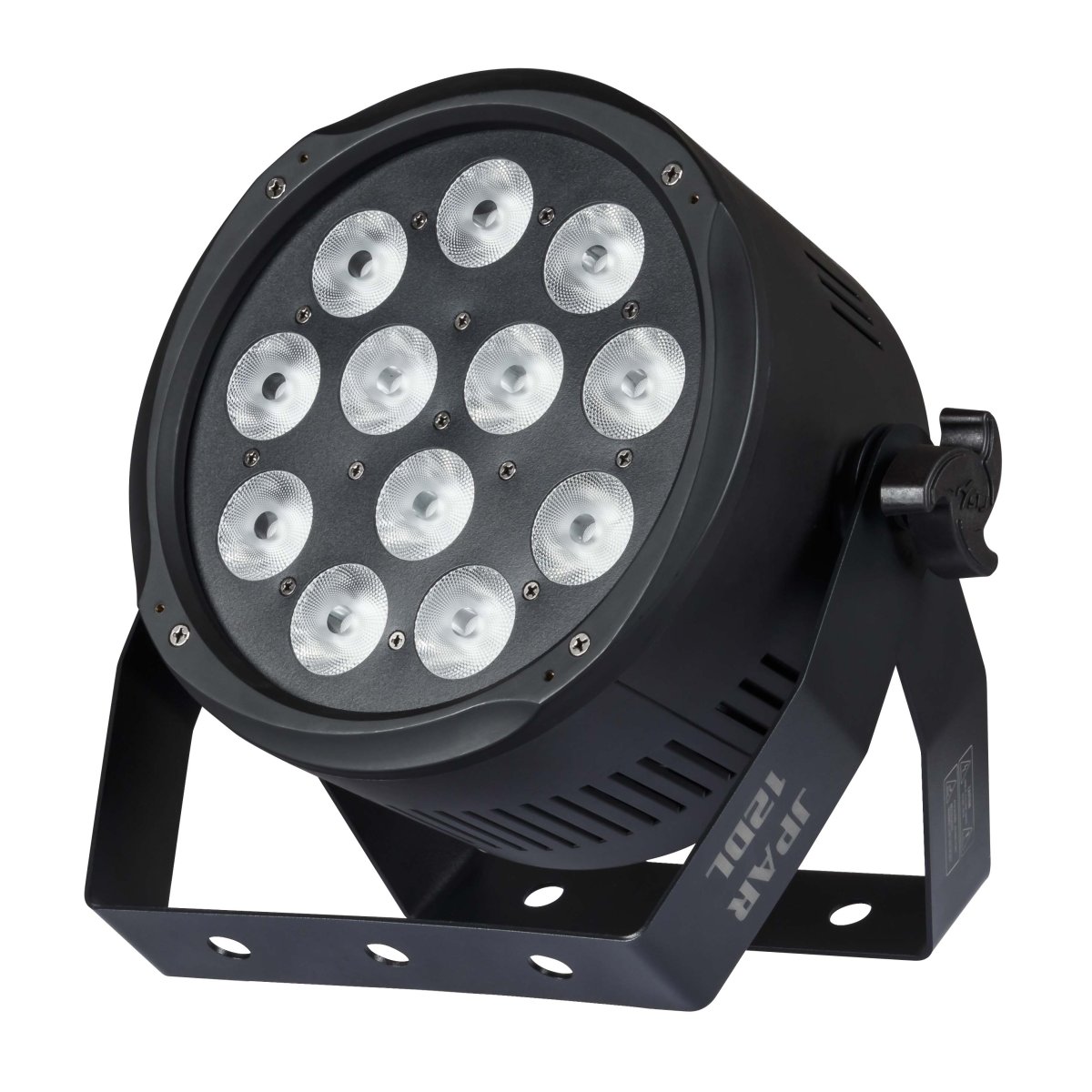

JPar 7

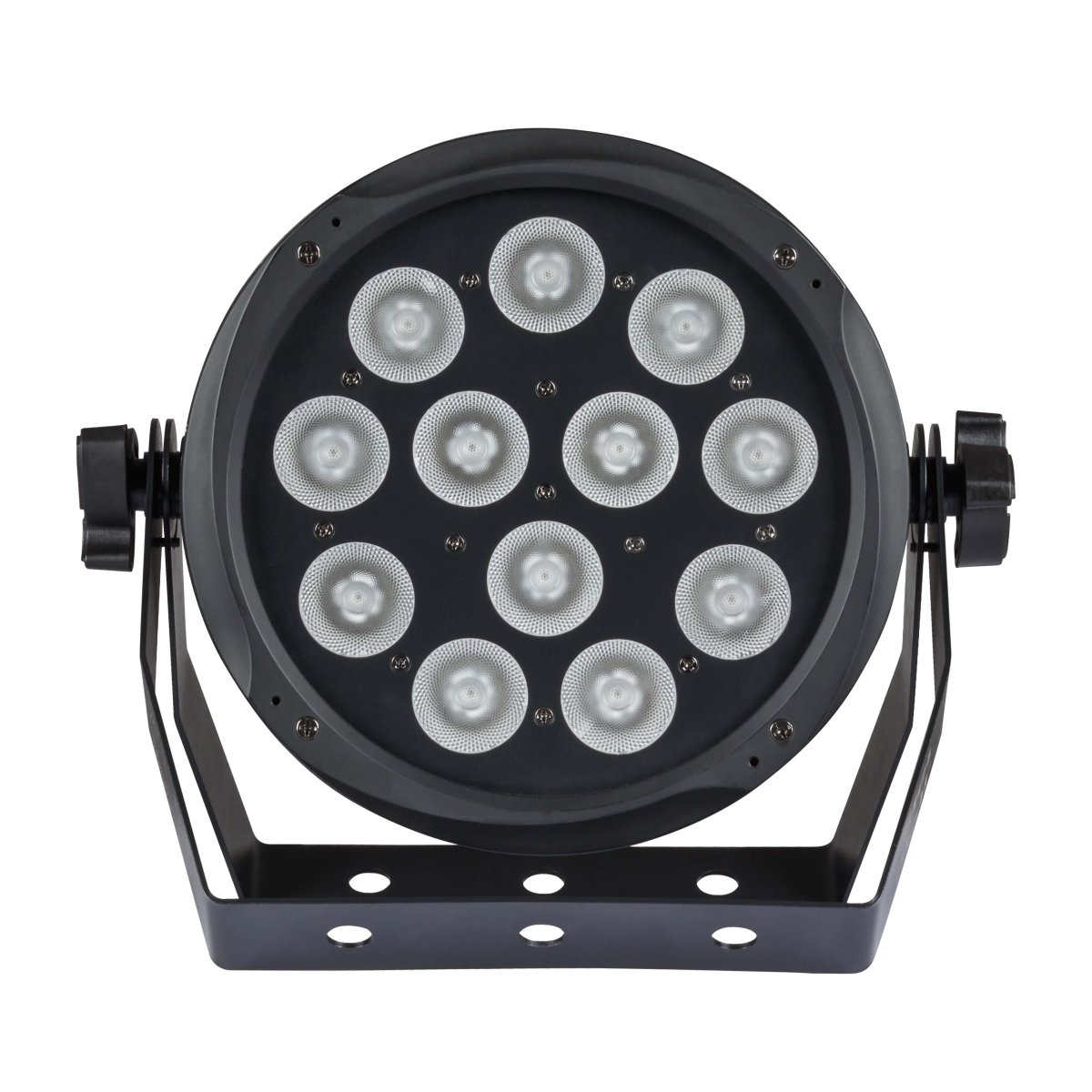

| Light source | 12x12W led RGBWAU Full Color LED lifespan: >50.000h Adjustable LED refresh frequency from 800Hz to 20 KHz |
| Optic system | Beam angle: 25° Luminous flux 670 lux @5mt (25°) |
| Color system | LED source 6 in 1 RGBWAU Full Color Infinite chromatic possibilities and colour temperature control Color temperature control with Amber color “Dark Light” technology LED UV (Ultra Violet) 51 color macros controllable via DMX 19 white macros from 3000K to 6000K controllable via DMX |
| Effects | Linear Dimmer 0-100% Electronic strobe: 1-20 flashes/s with adjustable speed |
| Control and programming | 6 DMX configurations available: 3/3A/4/6/12/17 channels Protocol USITT DMX 512 Master / Slave mode Sound mode with adjustable mic sensitivity Static color mode with independent adjustment of strobe Automatic mode with 8 different programs selectable from the display Color mode with 51 different pre-programmed color macros with independent adjustment of the strobe |

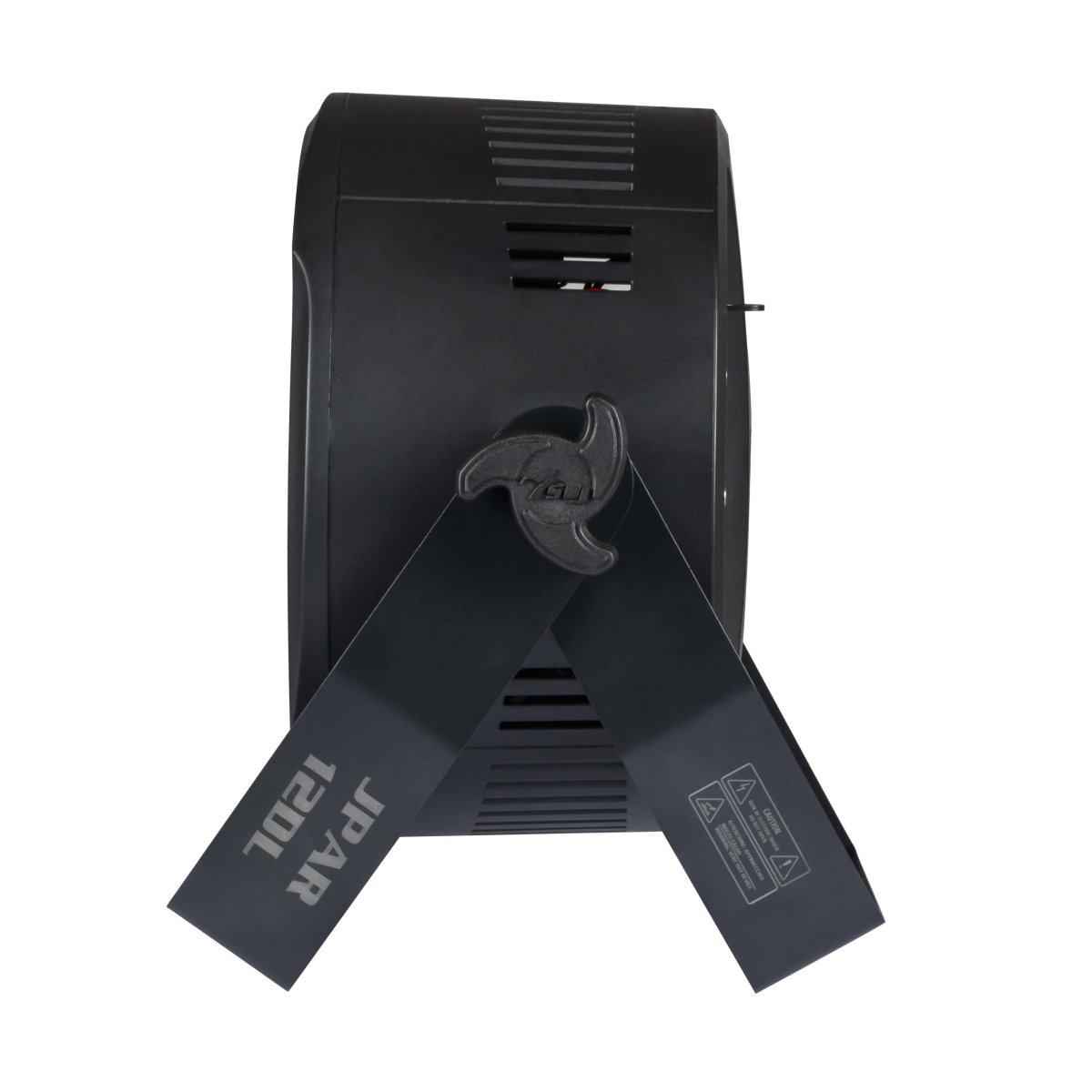

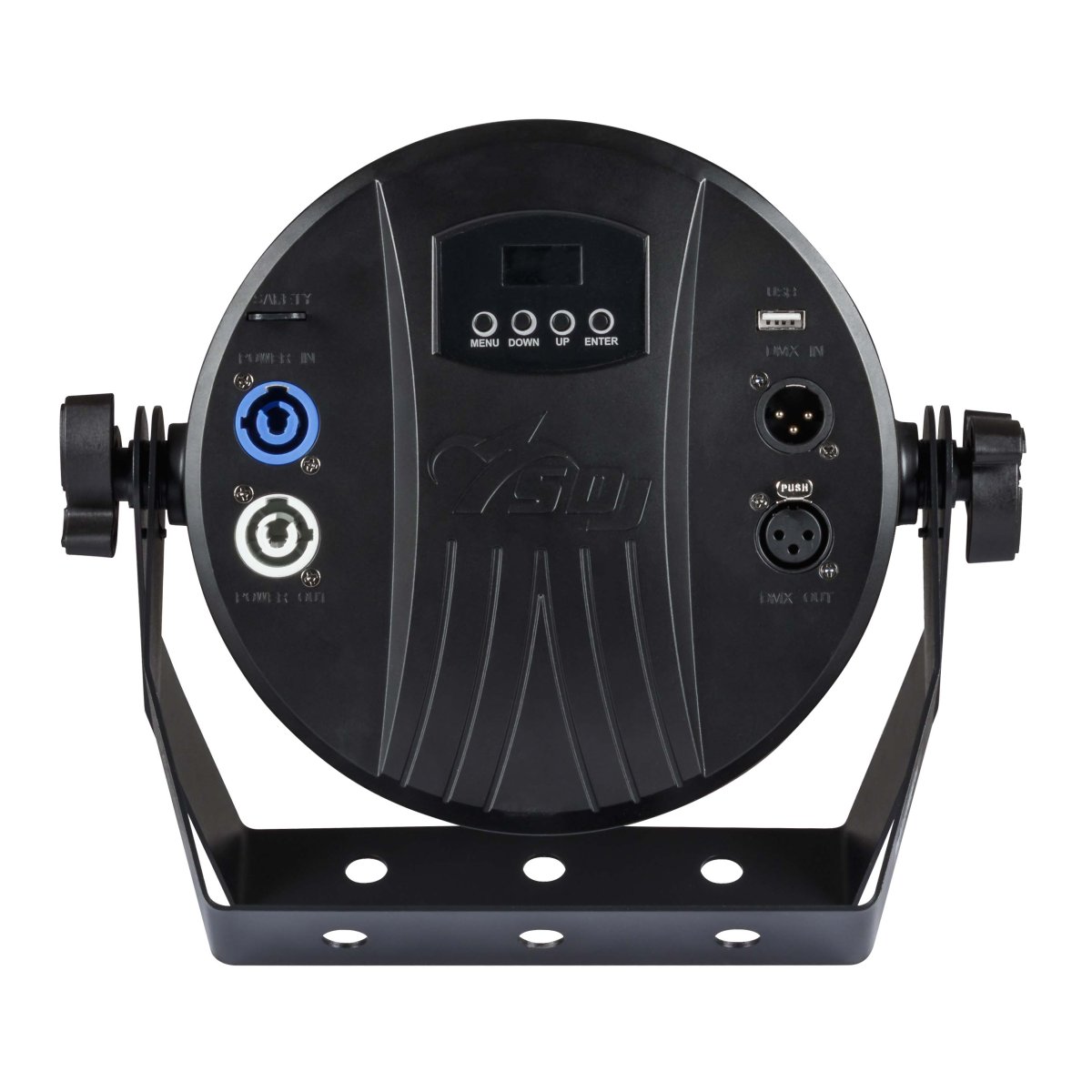

| Structure and cabinet | ABS housing, black color LCD color display Mounting points: double adjustable bracket 3-poles XLR in/out connection USB port for optional wireless DMX receiver (order code: SG WECONUSB) IP rating: IP 20 Forced air fan cooling system |
| Power supply | Input Voltage: AC~100-240V 50/60Hz Switching power supply unit Power consumption 115W Power IN/OUT connection with powerCON socket Power supply cable 1 mt included Max 6 pcs linkable @240V |
| Weight and dimensions | Net weight: 1,5 kg Dimensions: 280x260x130 mm |
