Matix 5×5 led 10W RGBW/FC pixel control

Pixi 5

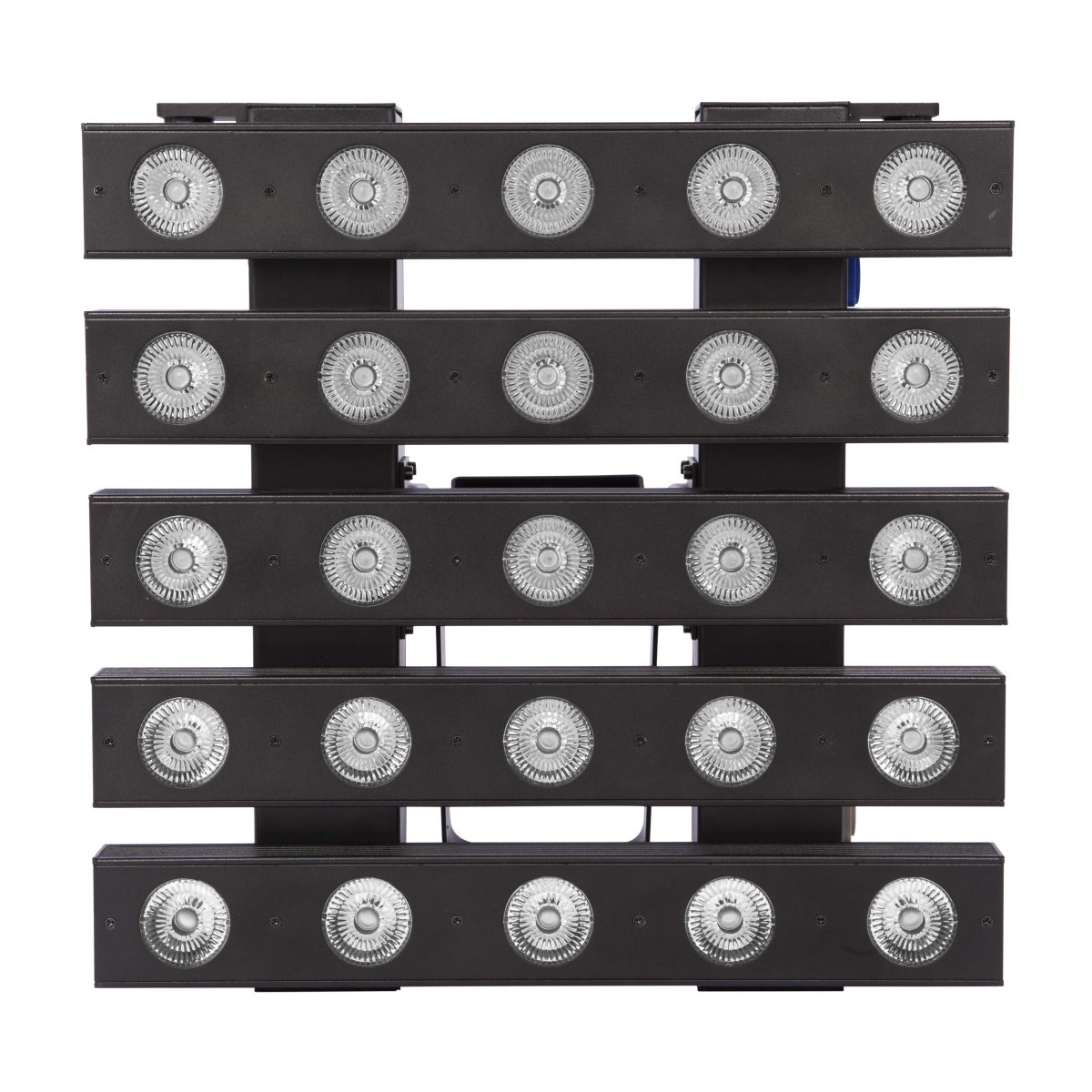

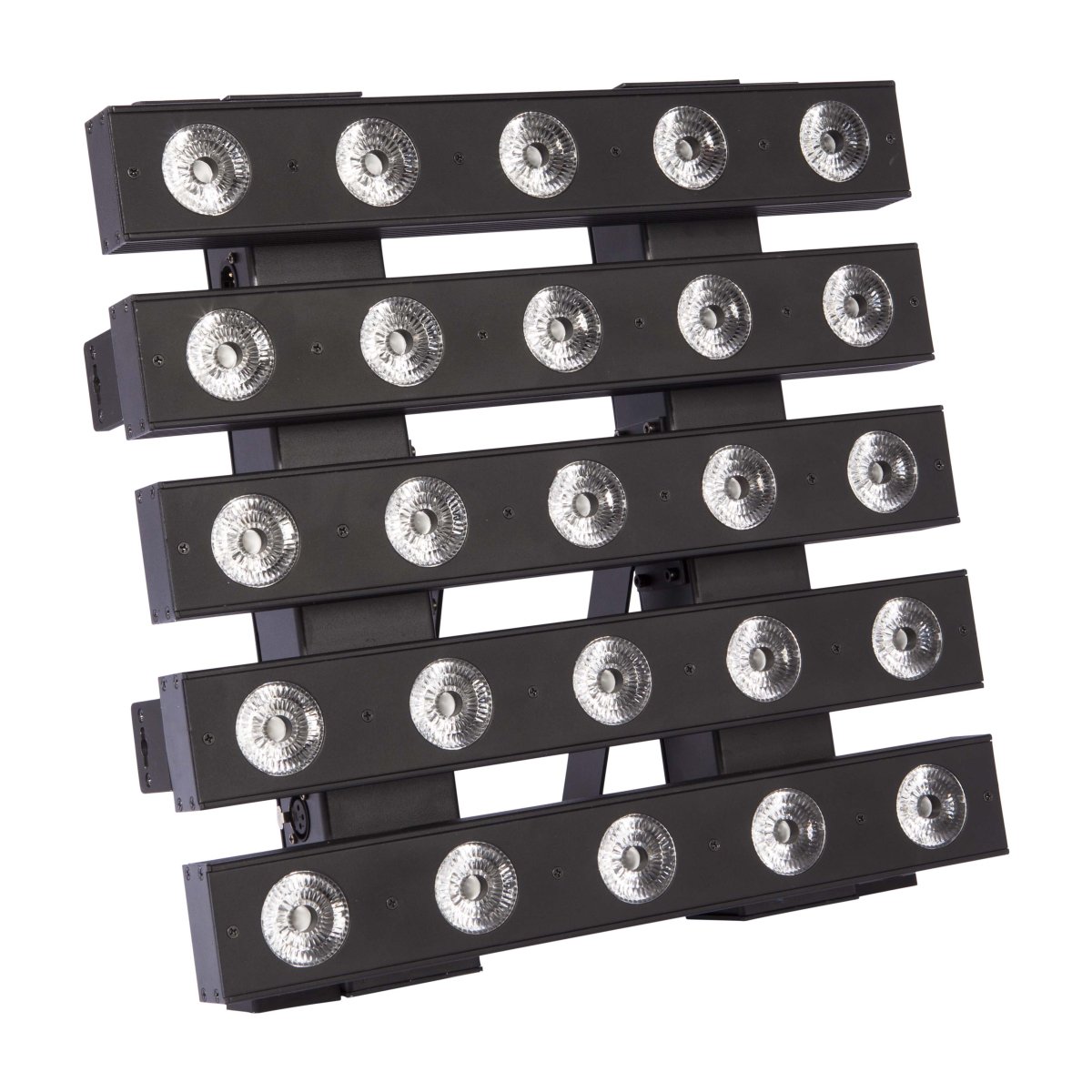

5×5 led matrix
25x10W led RGBW/FC
Single pixel control
DMX control

Description

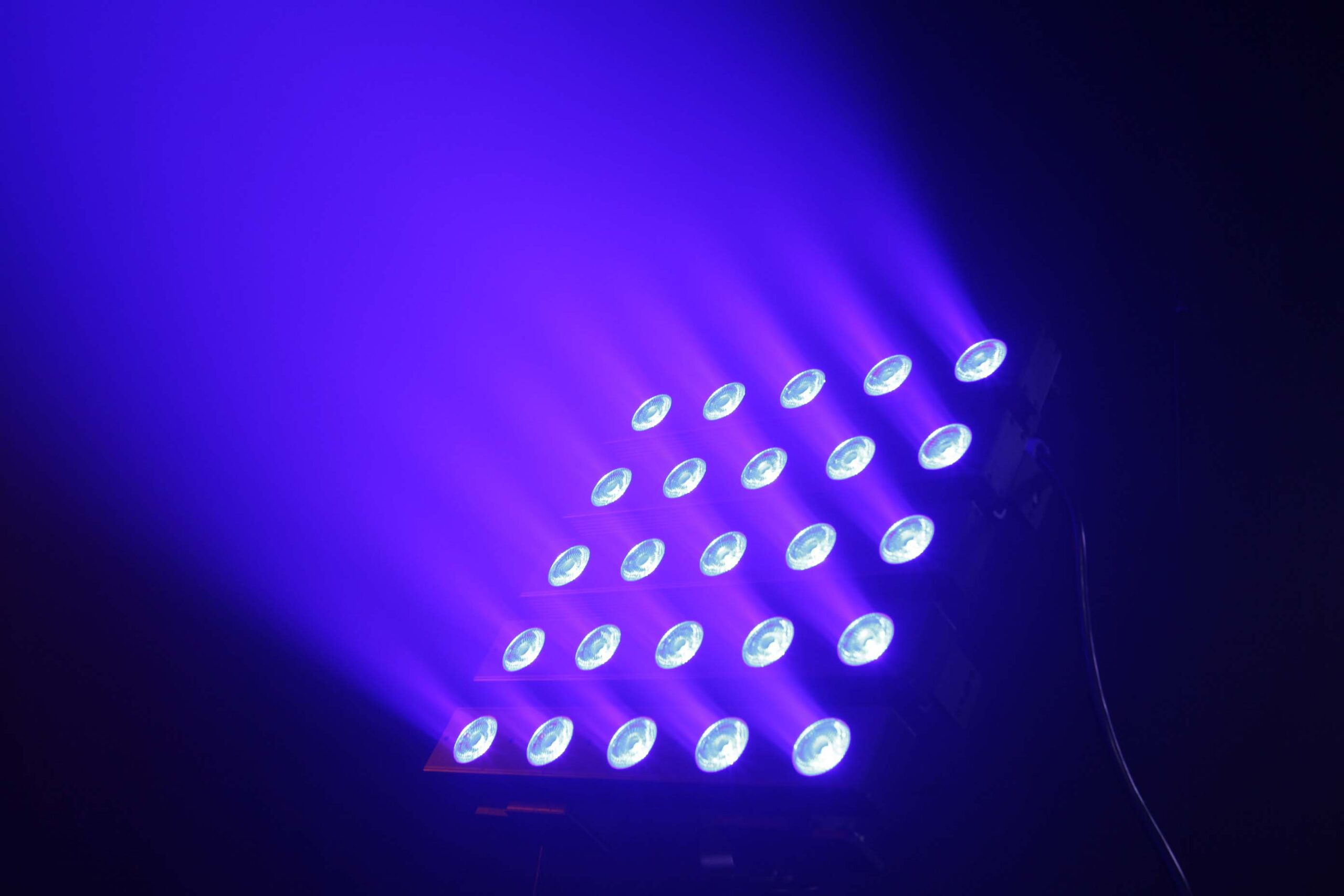

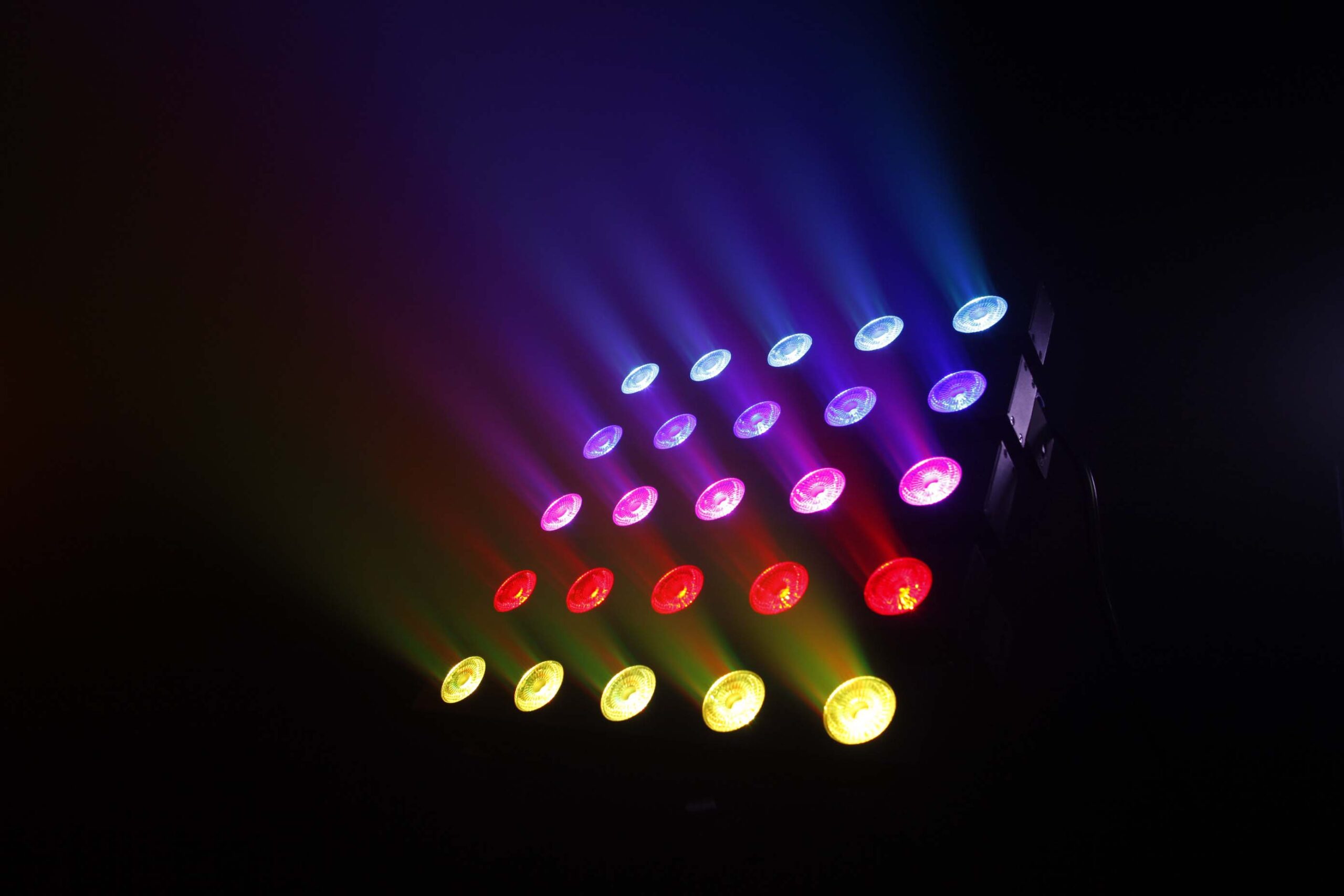

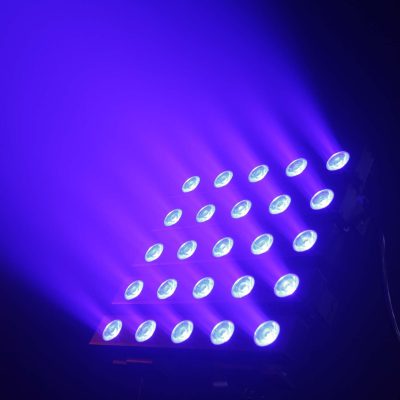

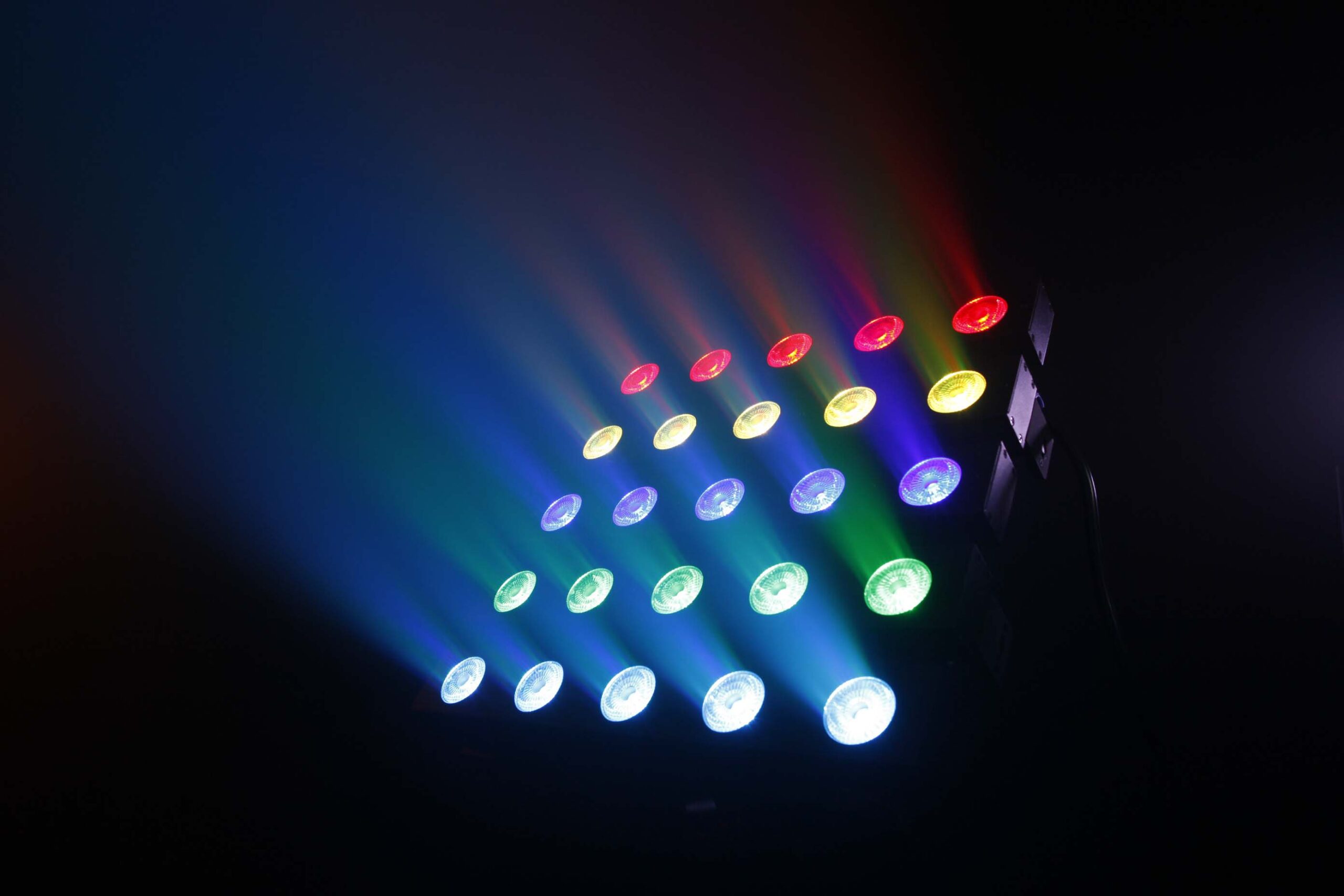

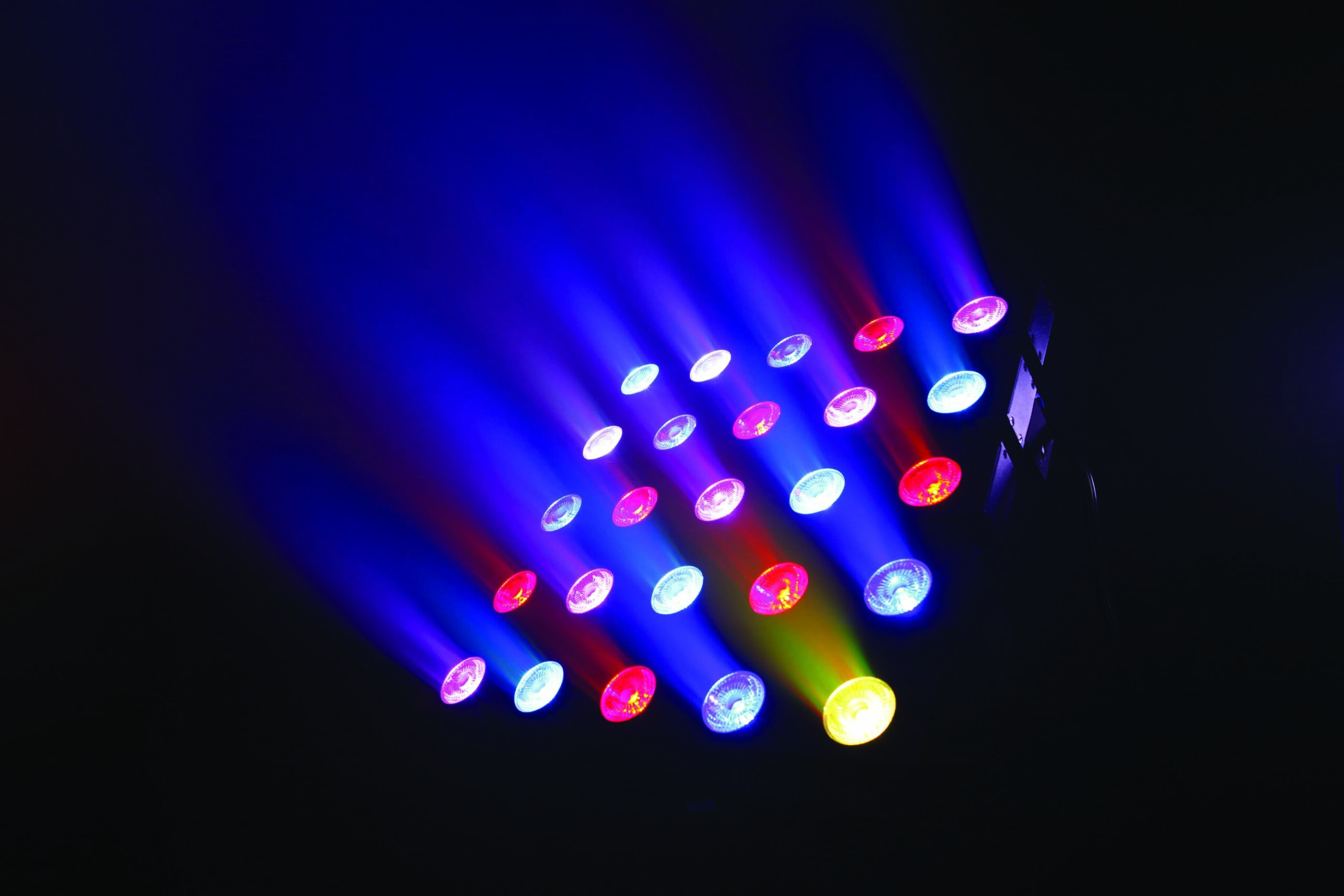

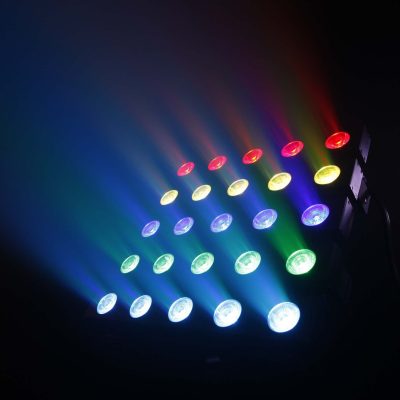

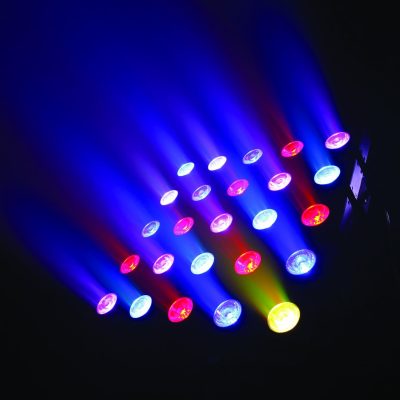

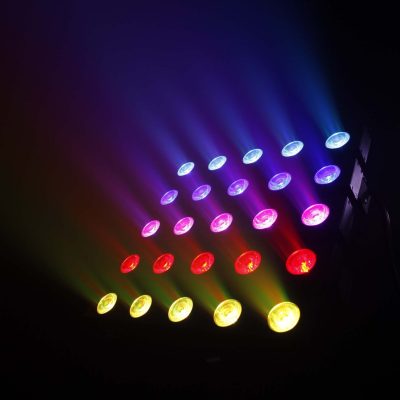

The PIX.i series has been designed by transferring the many needs of the live entertainment world in the indoor club entertainment industry, letting the occasional and non-occasional user to approach the “pixel to pixel” control with a pair of innovative 5×5 matrices, easy to use and install. PIX.i 5 is a 25 pixel LED matrix with a high power 10W RGBW full colour source. The optics, conceived with a projection angle of 15°, is equipped with an anti-reflection DC (dark cover) optical insulation system which ensures a precise and defined pixel effect, without any internal reflection interfering in the light effect. For an ultra easy-to-use experience, many macros have been included, which can be recalled via DMX with graphic pixel effects such as letters of the alphabet and numbers. A colour LCD display features an intuitive software interface, a black aluminium body with “fast lock” hardware for the connection of the modules ensures low weight and perfect alignment between the pixels.

SG PIXI5

Technical Specifications

Light source 25x10W led RGBW Full Color
LED lifespan: >50.000h
LED refresh frequency: >400Hz flicker free
Optic system Beam angle: 15°
Luminous flux: 2130 lux @5mt (15°)
DC (dark cover) optical insulation system
Color system LED source 4 in 1 RGBW Full Color
Infinite chromatic possibilities
Color macros can be recalled by DMX
Effects Linear Dimmer 0-100%
Electronic strobe: 1-20 flashes/s with adjustable speed
Color macros and pixel can be recalled by DMX
Control and programming 5 DMX configurations available: 4/6/8/10/100 channels
Pixel to pixel control
3 selectable dimmer curve
Protocol USITT DMX 512
Master / Slave mode
Sound mode with adjustable mic sensitivity
Static color mode with independent adjustment of strobe
Automatic mode with 19 different programs selectable from the display with independent adjustment of the speed

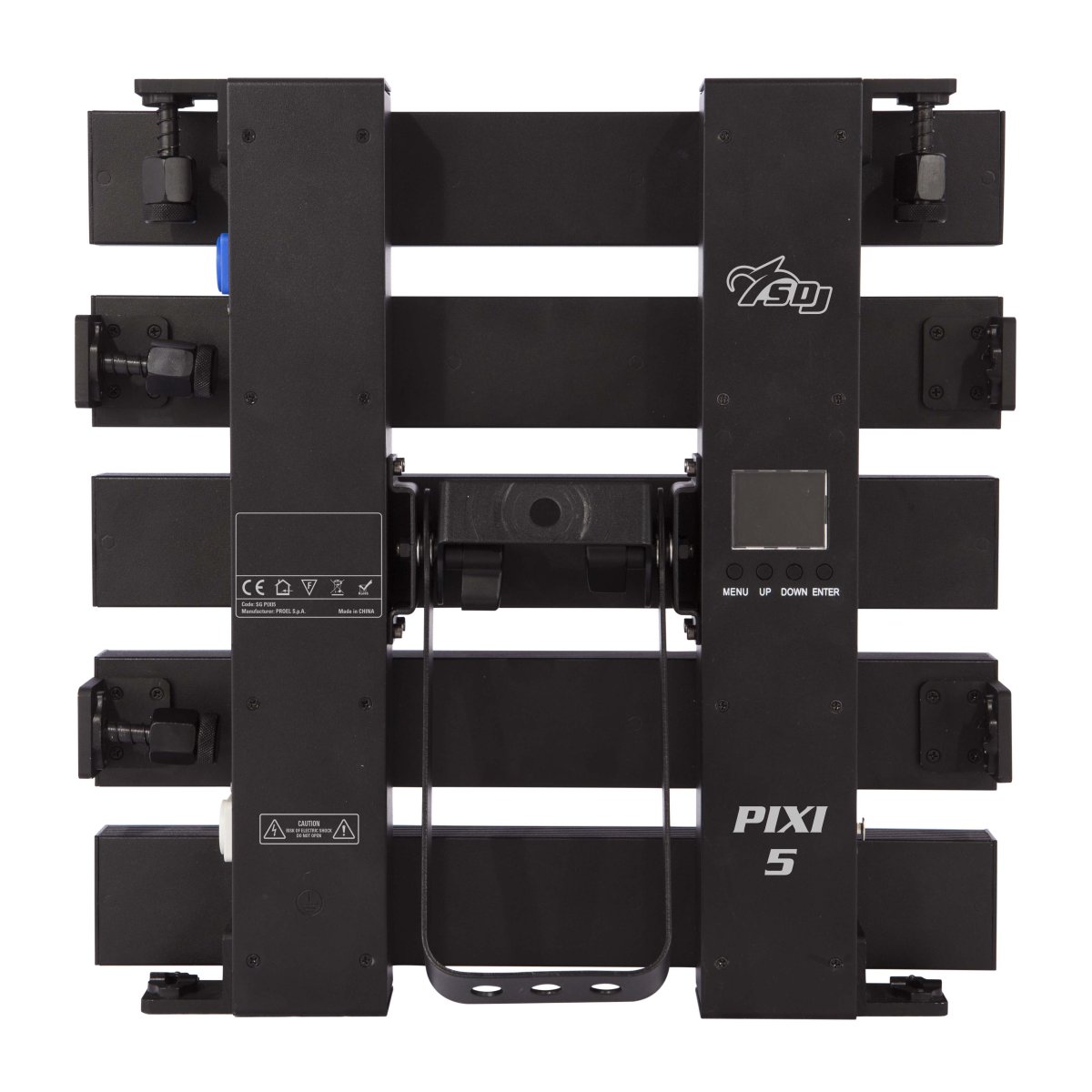

Structure and cabinet Aluminum housing, black color

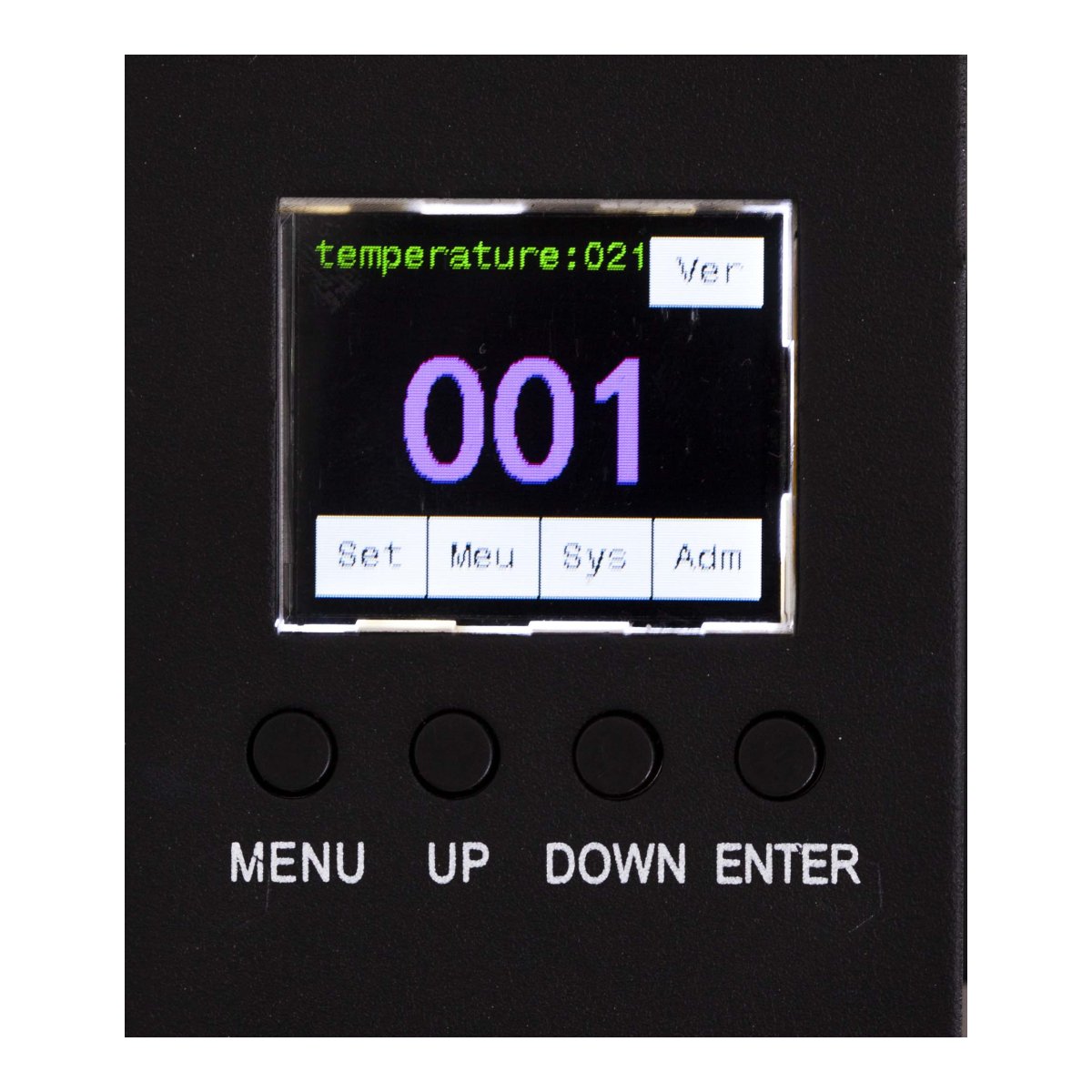

LCD color display
Mounting points: double central adjustable bracket

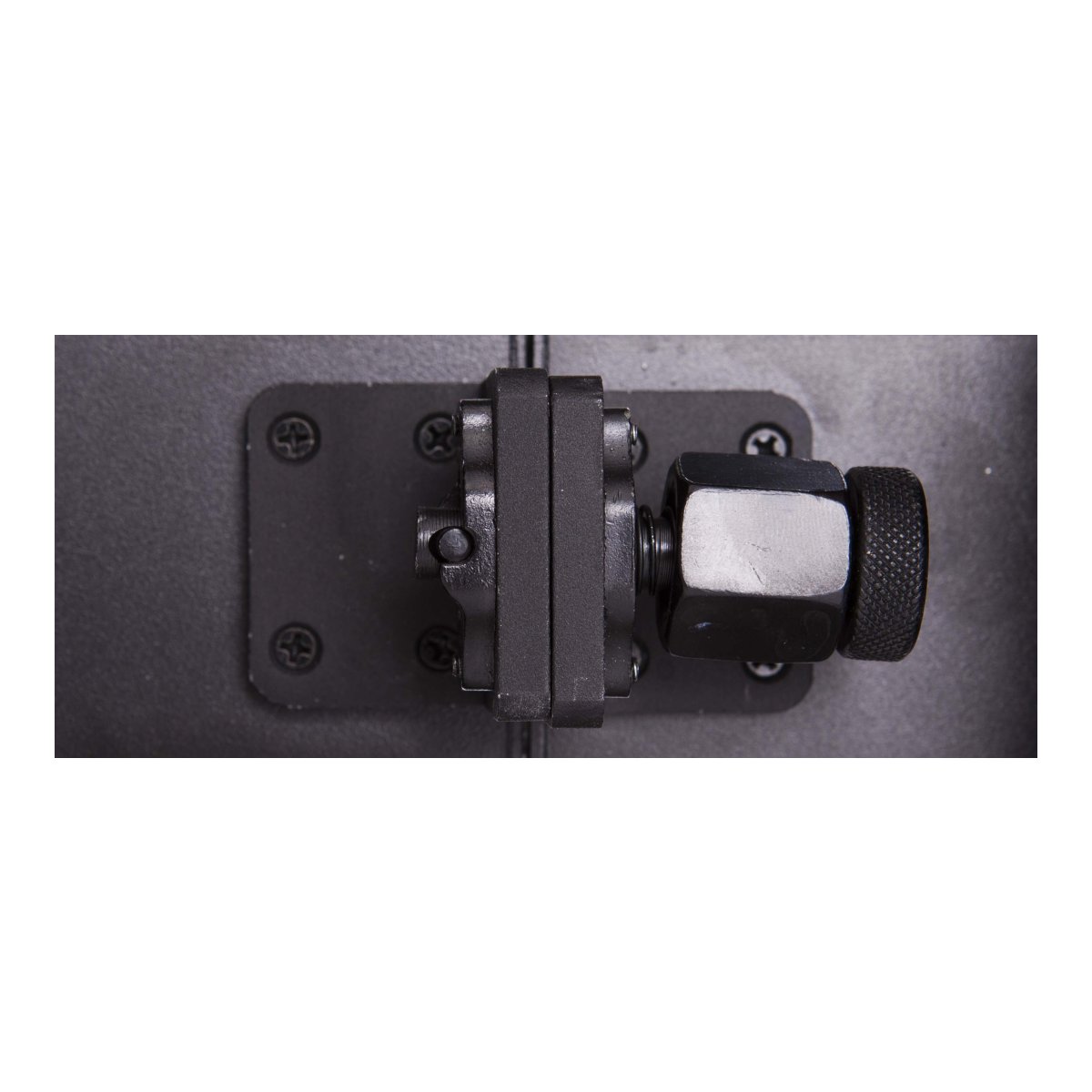

Specific hardware for connection between panels
3-poles XLR in/out connection
IP rating: IP 20
Fan cooling system without fans
Power supply Input Voltage: AC~100-240V 50/60Hz
Switching power supply unit
Power consumption 280W
Power IN/OUT connection with powerCON socket
Power supply cable 1,5 mt included
Max 6 pcs linkable @240V
Weight and dimensions Net weight: 6,8 kg
Dimensions: 399x399x113 mm
