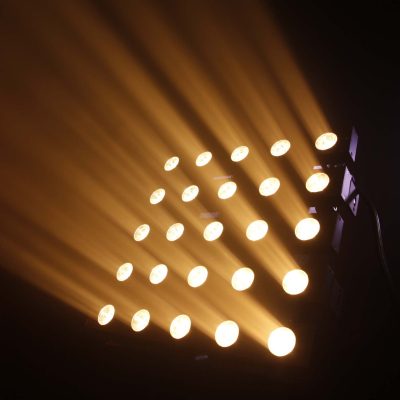

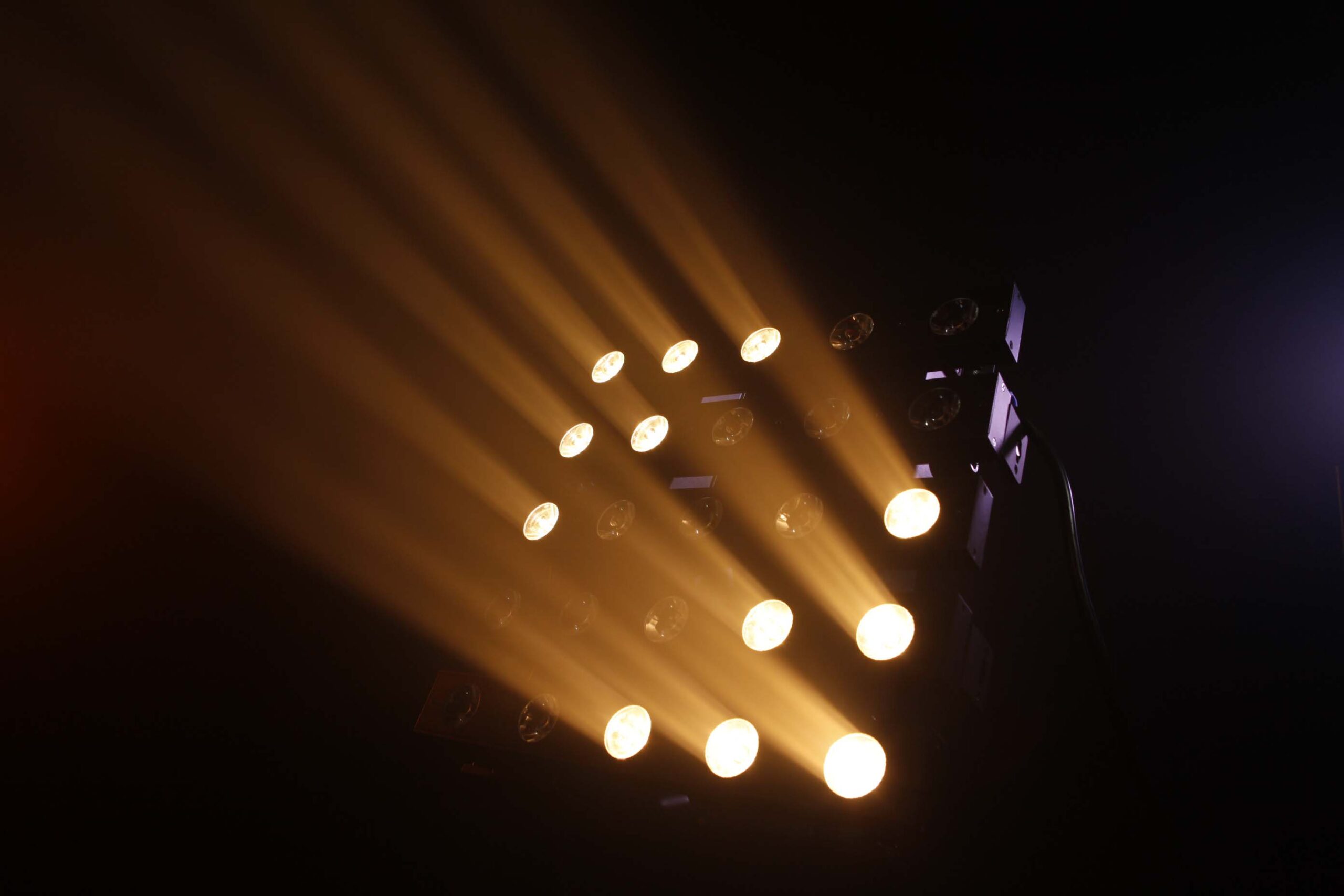

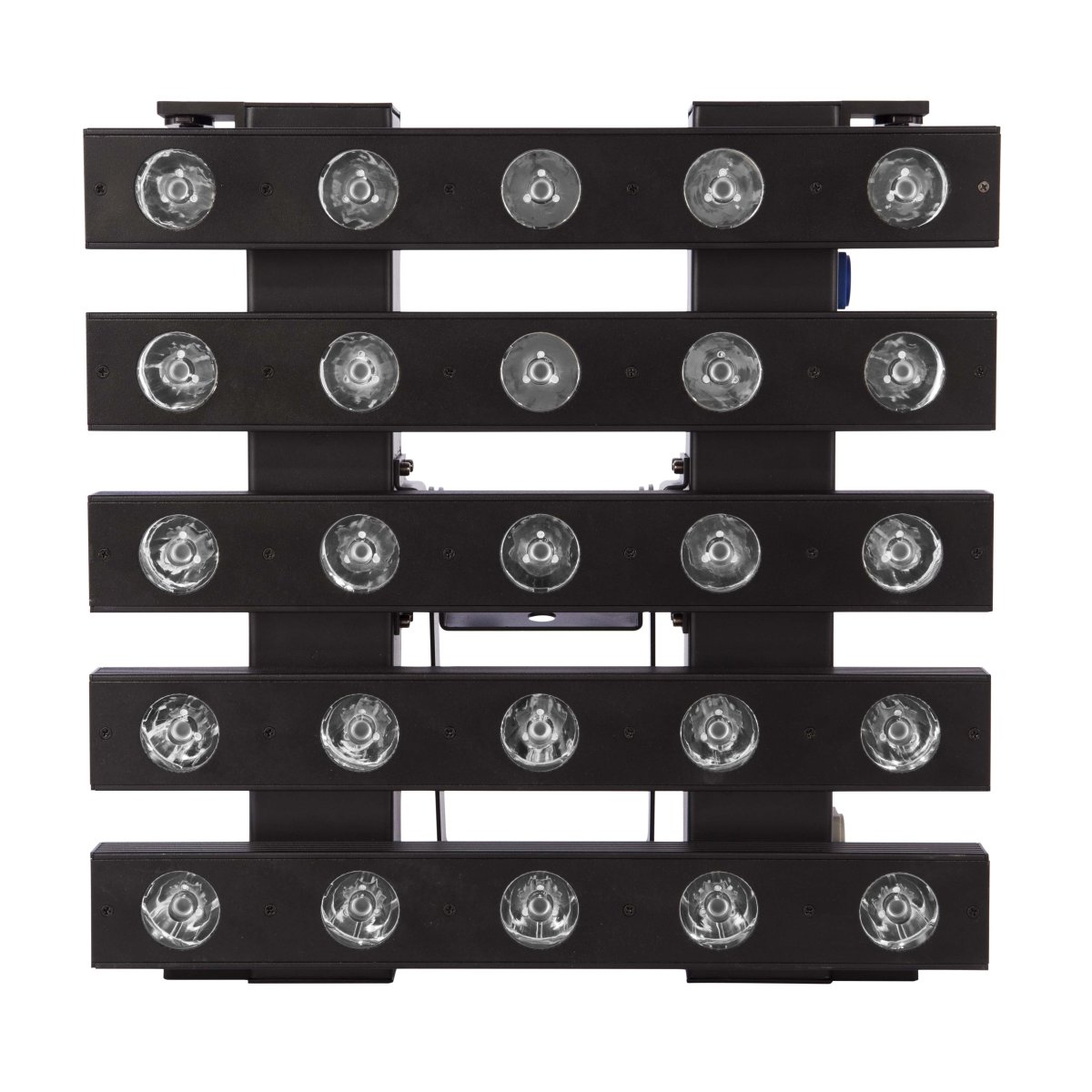

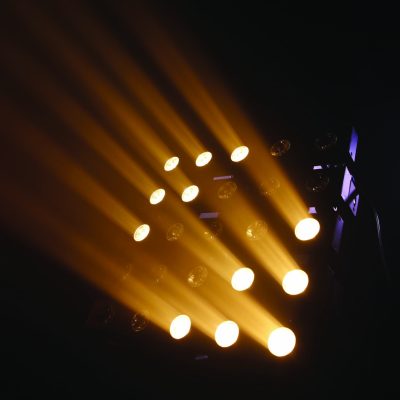

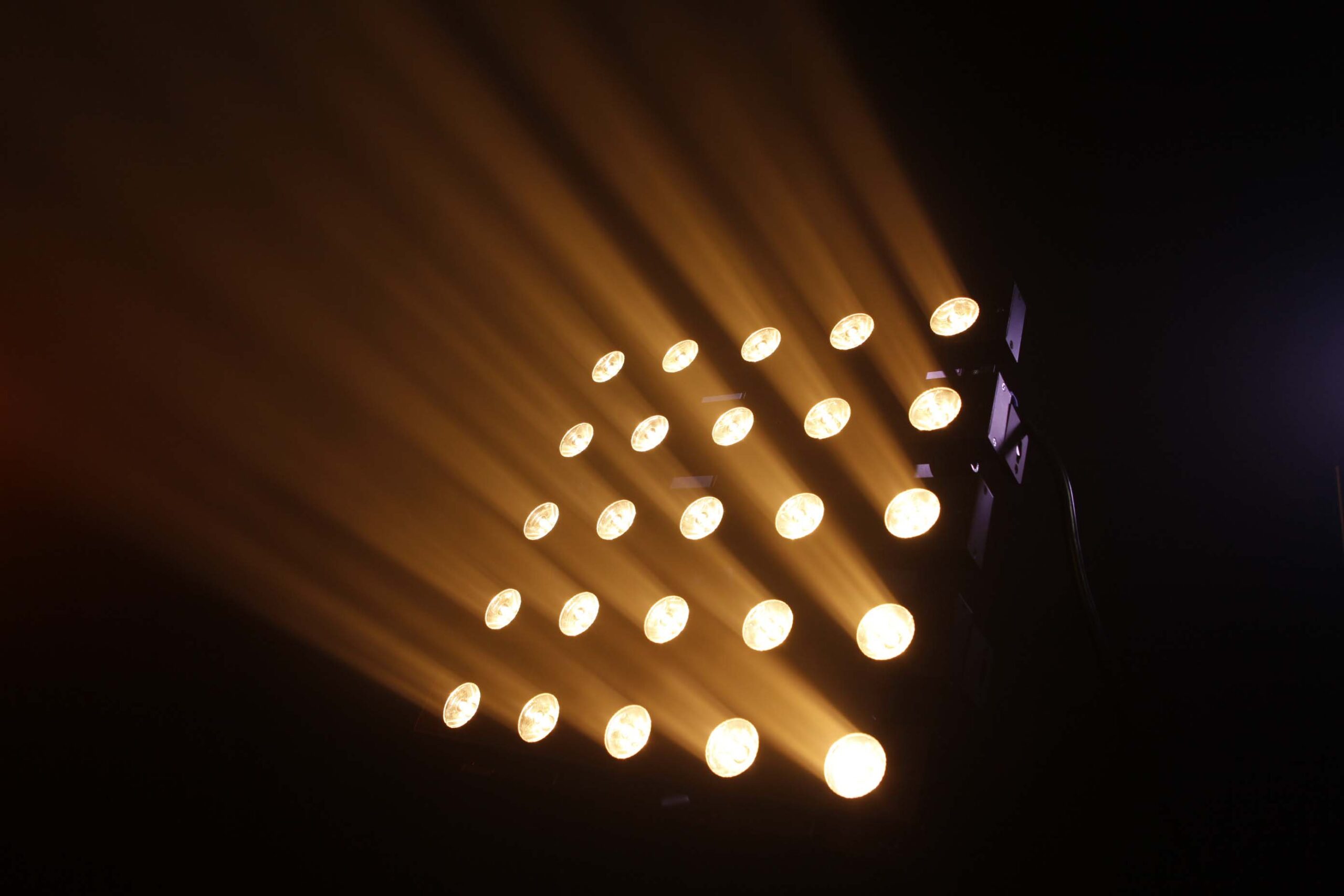

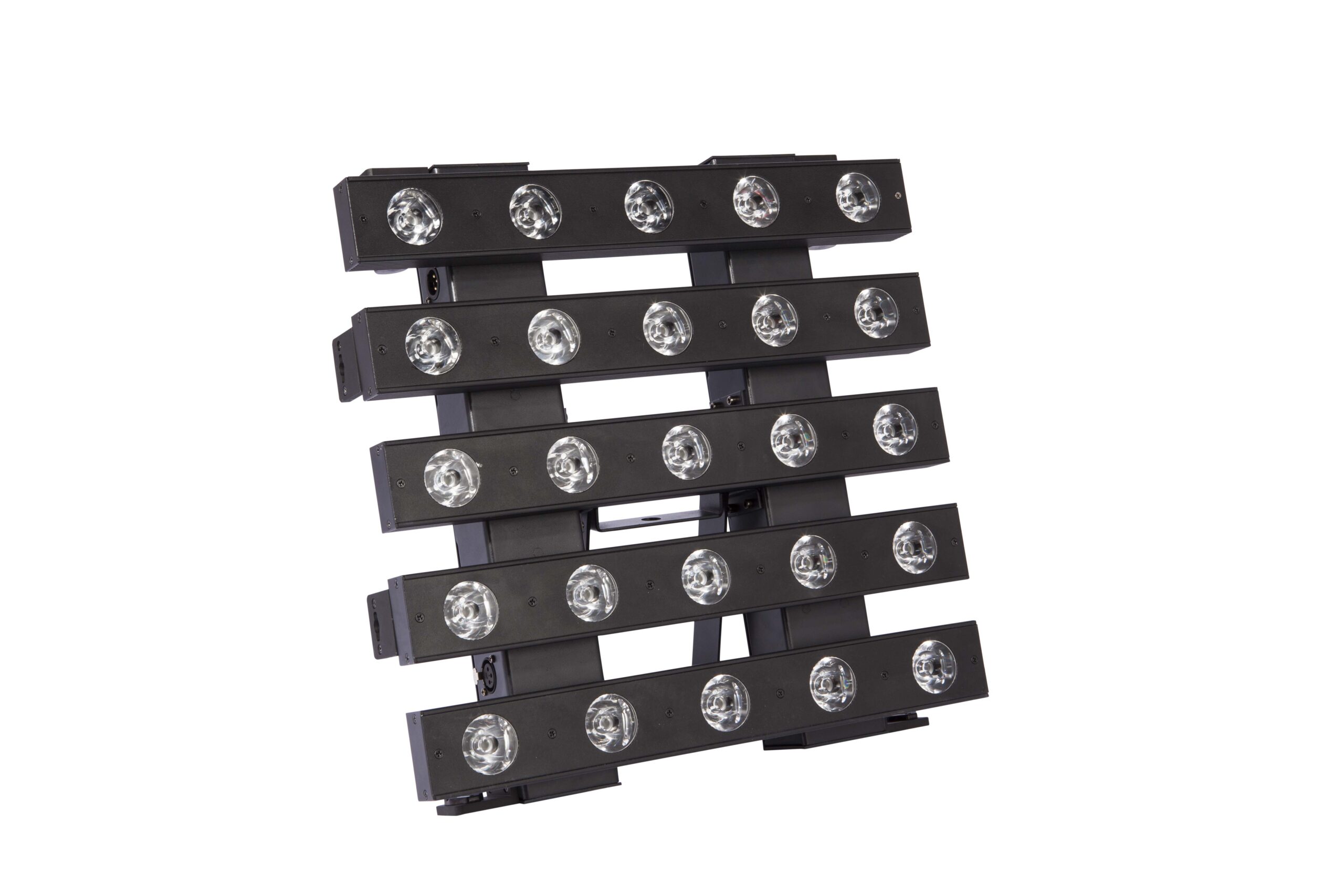

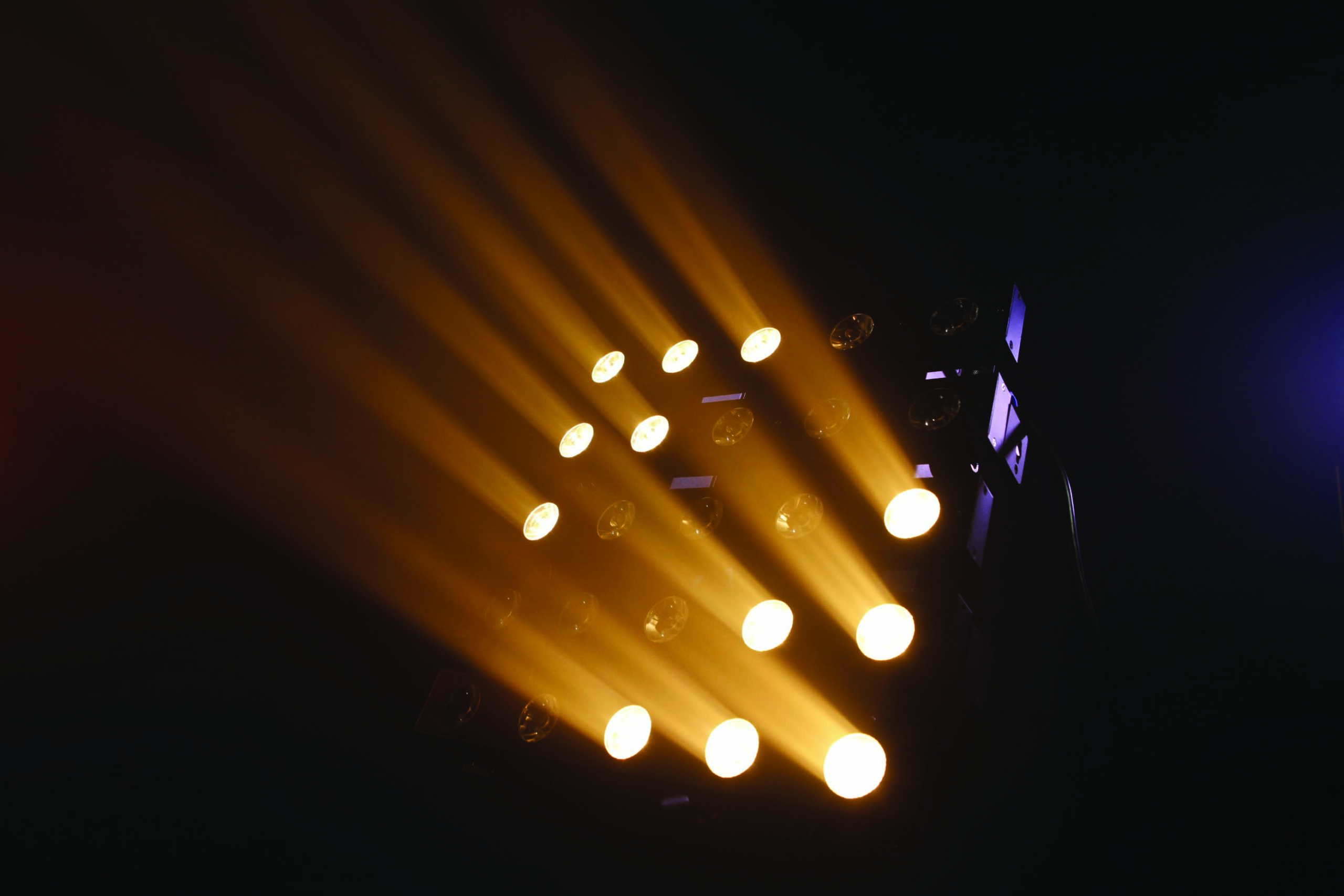

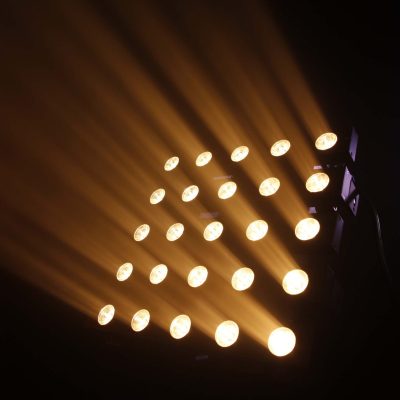

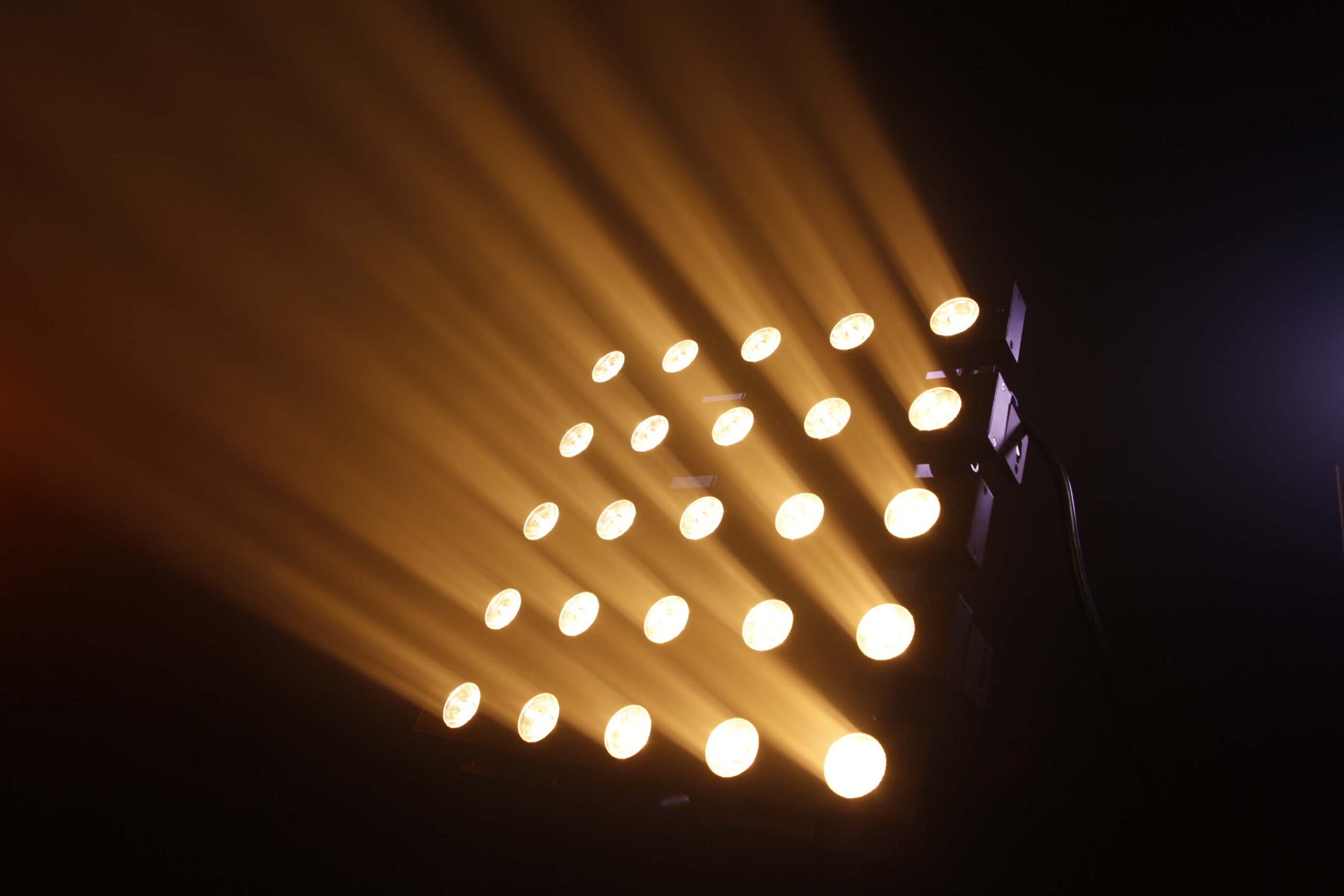

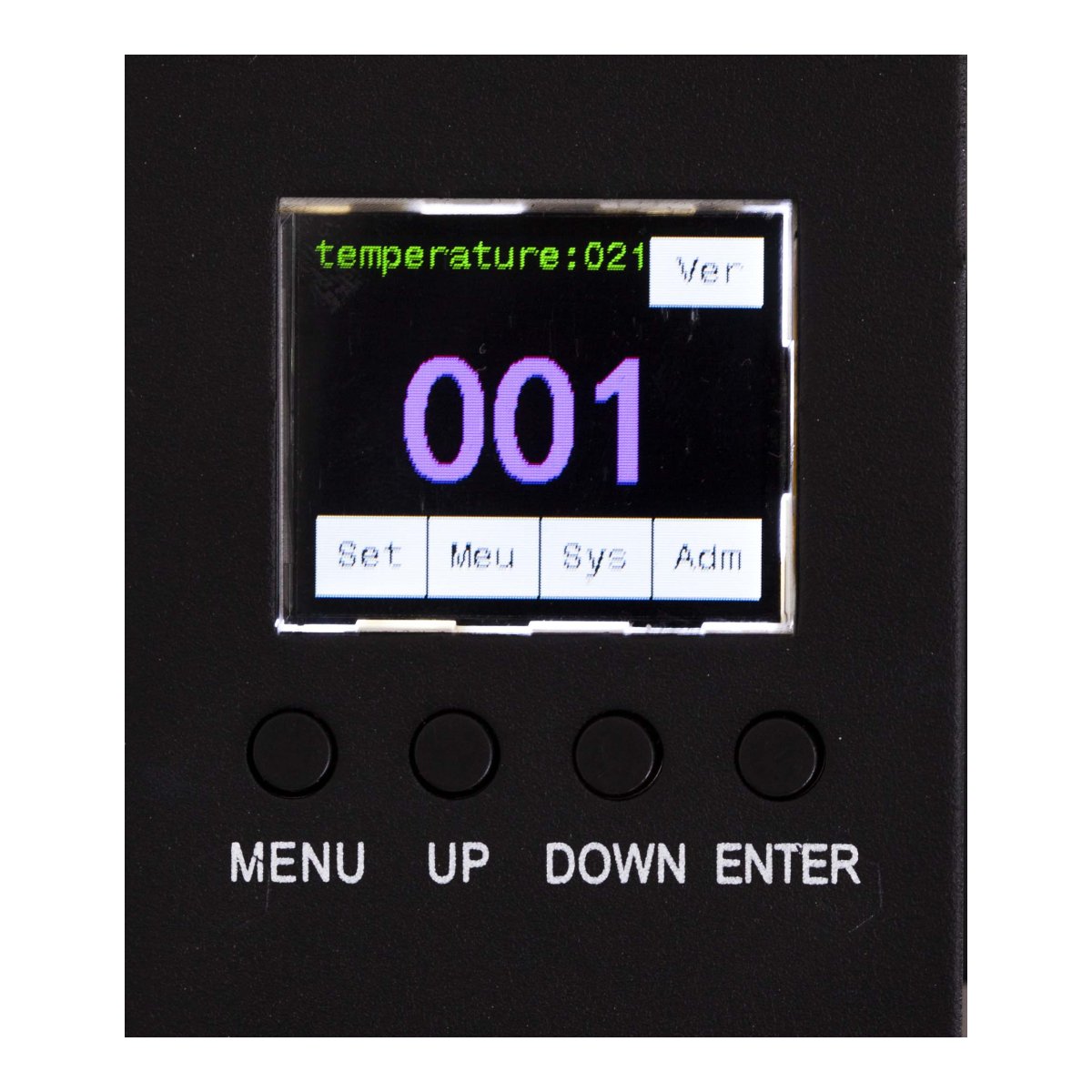

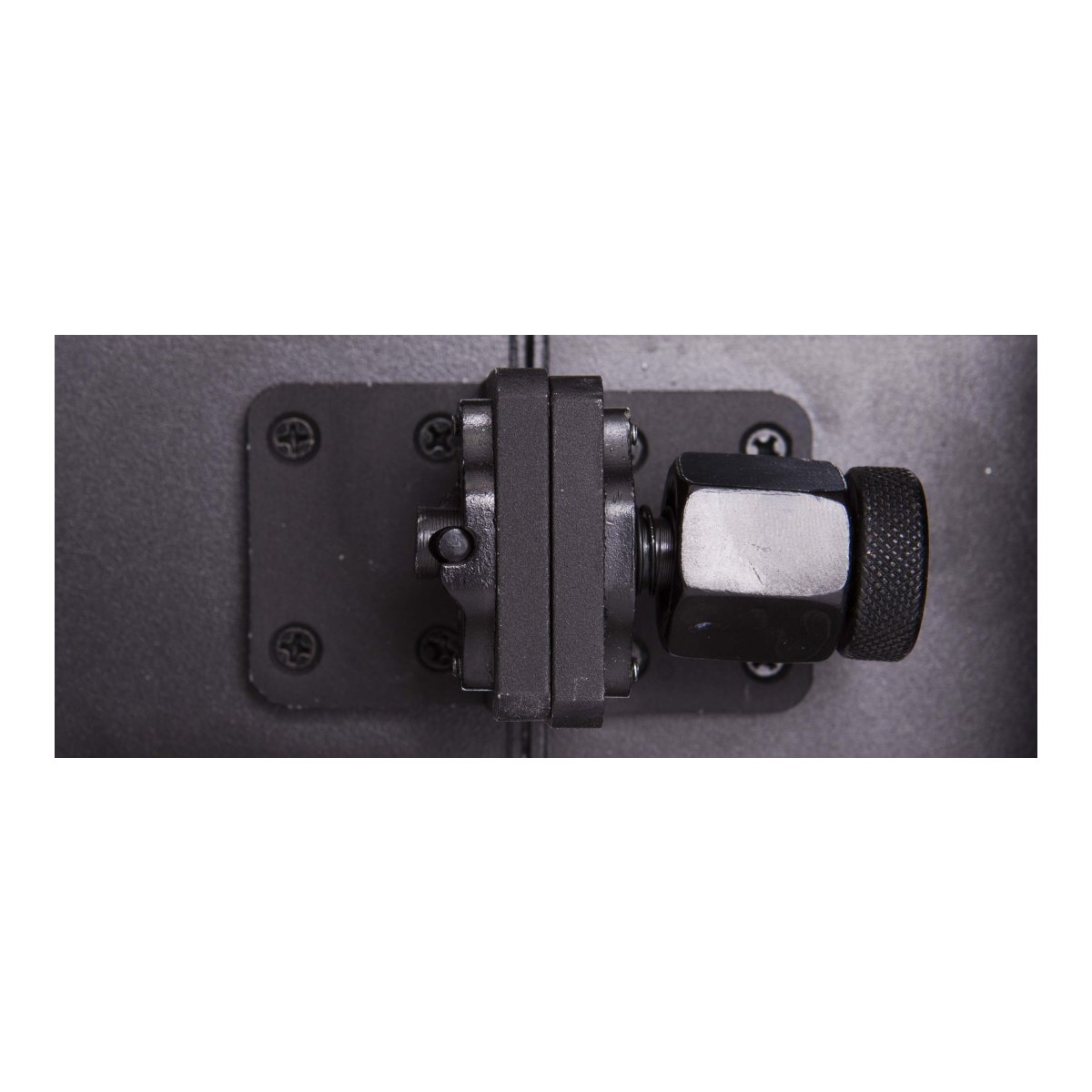

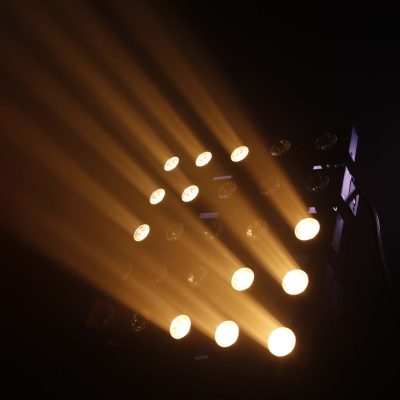

The PIX.i series has been designed by transferring the many needs of the live entertainment world in the indoor club entertainment industry, letting the occasional and non-occasional user to approach the “pixel to pixel” control with a pair of innovative 5×5 matrices, easy to use and install. PIX.i 5 White Beam is a 25 pixel LED matrix with a high power 3W Warm White 2800K source. The optics, conceived with a beam projection angle of 5°, is equipped with an anti-reflection DC (dark cover) optical insulation system which ensures a precise and defined pixel effect, without any internal reflection interfering in the light effect. For an ultra easy-to-use experience, many macros have been included, which can be recalled via DMX with graphic pixel effects such as letters of the alphabet and numbers. A colour LCD display features an intuitive software interface, a black aluminium body with “fast lock” hardware for the connection of the modules ensures low weight and perfect alignment between the pixels.
| Light source | 25x3W CREE XPE led Warm White 2800K LED lifespan: >50.000h LED refresh frequency: >400Hz flicker free |
| Optic system | Beam angle: 5° Luminous flux: 7750 lux @5mt (15°) DC (dark cover) optical insulation system |
| Color system | LED source CREE Warm White 2800K |
| Effects | Linear Dimmer 0-100% Electronic strobe: 1-20 flashes/s with adjustable speed Color macros and pixel can be recalled by DMX |
| Control and programming | 4 DMX configurations available: 1/2/6/25 channels 3 selectable dimmer curve Pixel to pixel control Protocol USITT DMX 512 Master / Slave mode Sound mode with adjustable mic sensitivity Static color mode with independent adjustment of strobe Automatic mode with 120 different programs selectable from the display with independent adjustment of the speed |

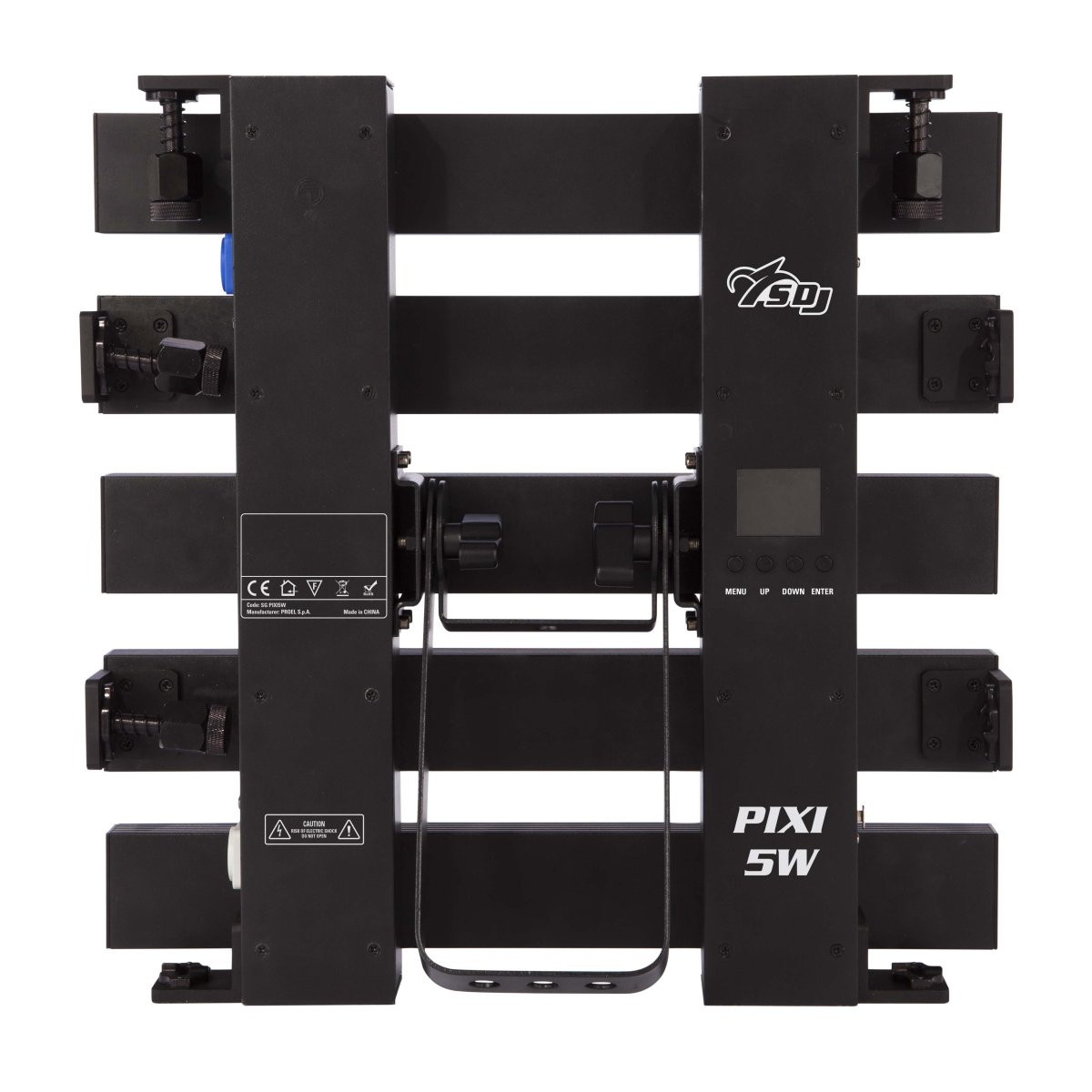

| Structure and cabinet | Alimunum housing, black color LCD color display Mounting points: double central adjustable bracket Specific hardware for connection between panels 3-poles XLR in/out connection IP rating: IP 20 Fan cooling system without fans |
| Power supply | Input Voltage: AC~100-240V 50/60Hz Switching power supply unit Power consumption 80W Power IN/OUT connection with powerCON socket Power supply cable 1,5 mt included Max 8 pcs linkable @240V |
| Weight and dimensions | Net weight: 6,8 kg Dimensions: 399x399x113 mm |
