| Light source | 144 SMD led RGB high efficiency (for each QPix 360) Led refresh frequency >400Hz flicker free |
| Optic system | Viewing angle 120° x 120° Flat smoked diffuser (flat white diffuser on request) 24 sectors control (for each QPix 360) Pitch 16,6 mm |
| Color system | RGB led source |
| Effects | Individual control for each RGB sectors Linear dimmer Electronic strobe Color macro and sectors macro can be recalled by DMX |
| Control and programming | 6 different DMX configuration available 4/7/18/108/432/436 Proprietary signal control between QPix 360 (cable include) DMX control by QPix 360 BOX (sold separately) Each QPix 360 BOX control 6 pcs of QPix 360 maximum Master/Slave mode |

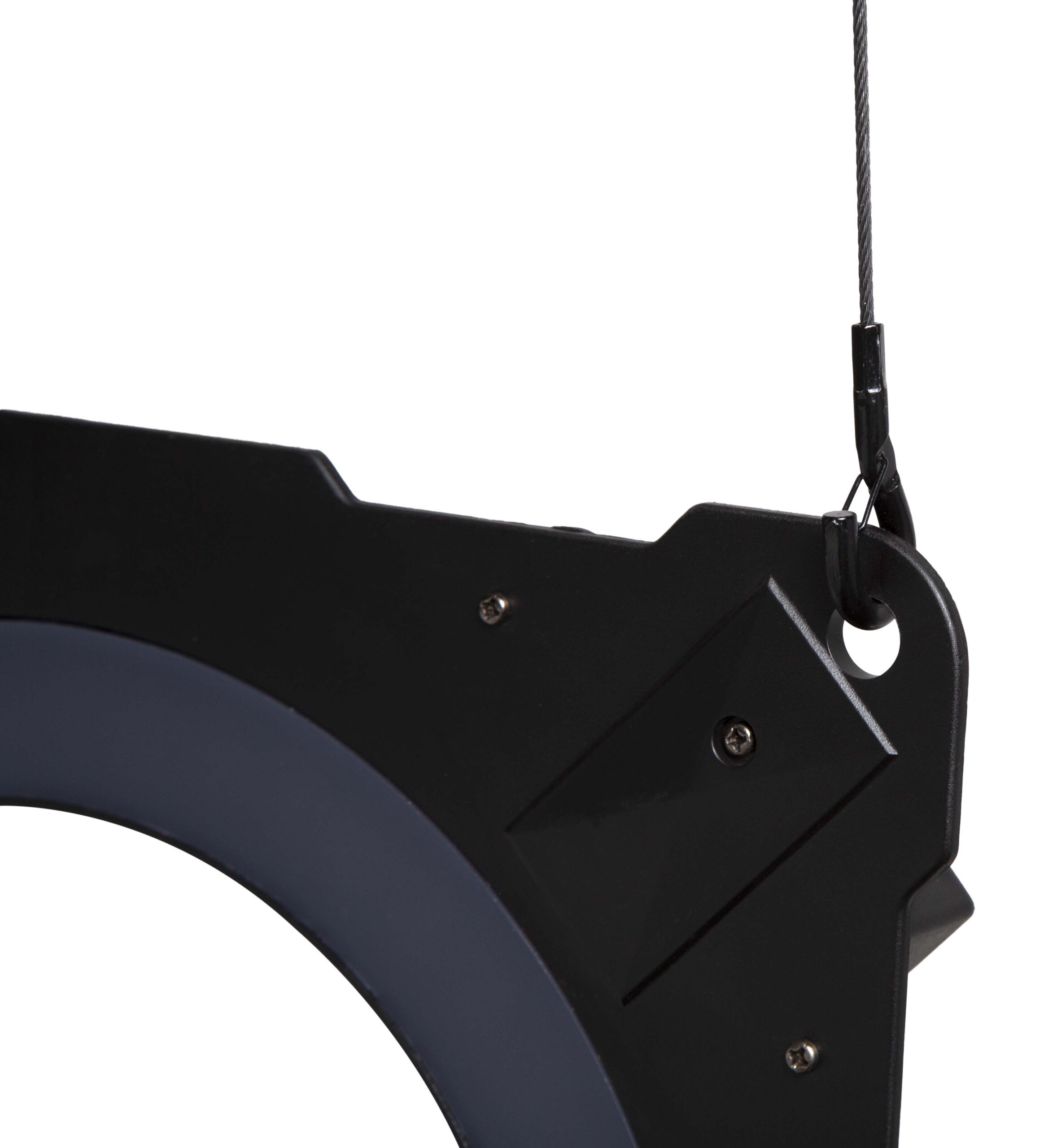

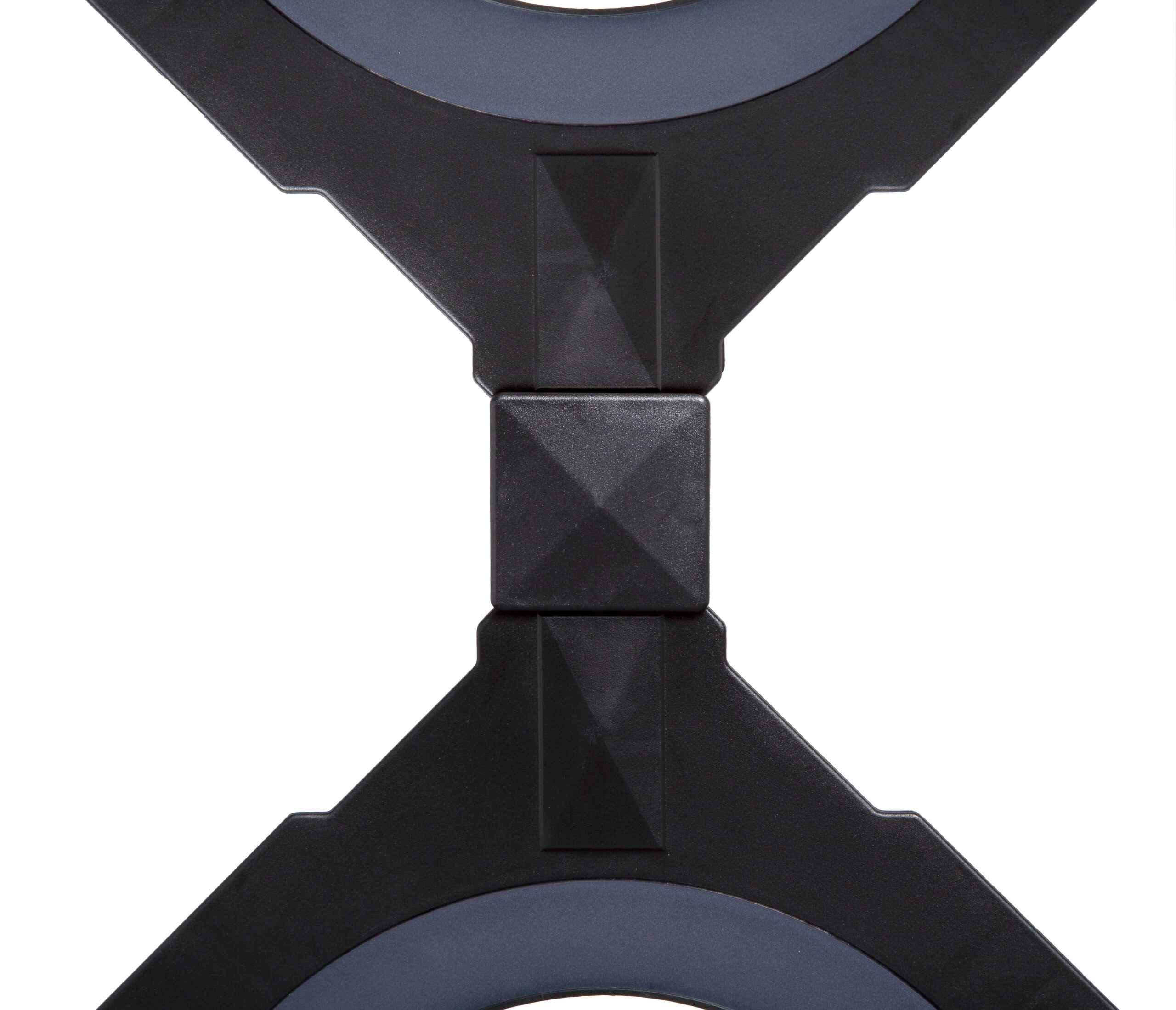

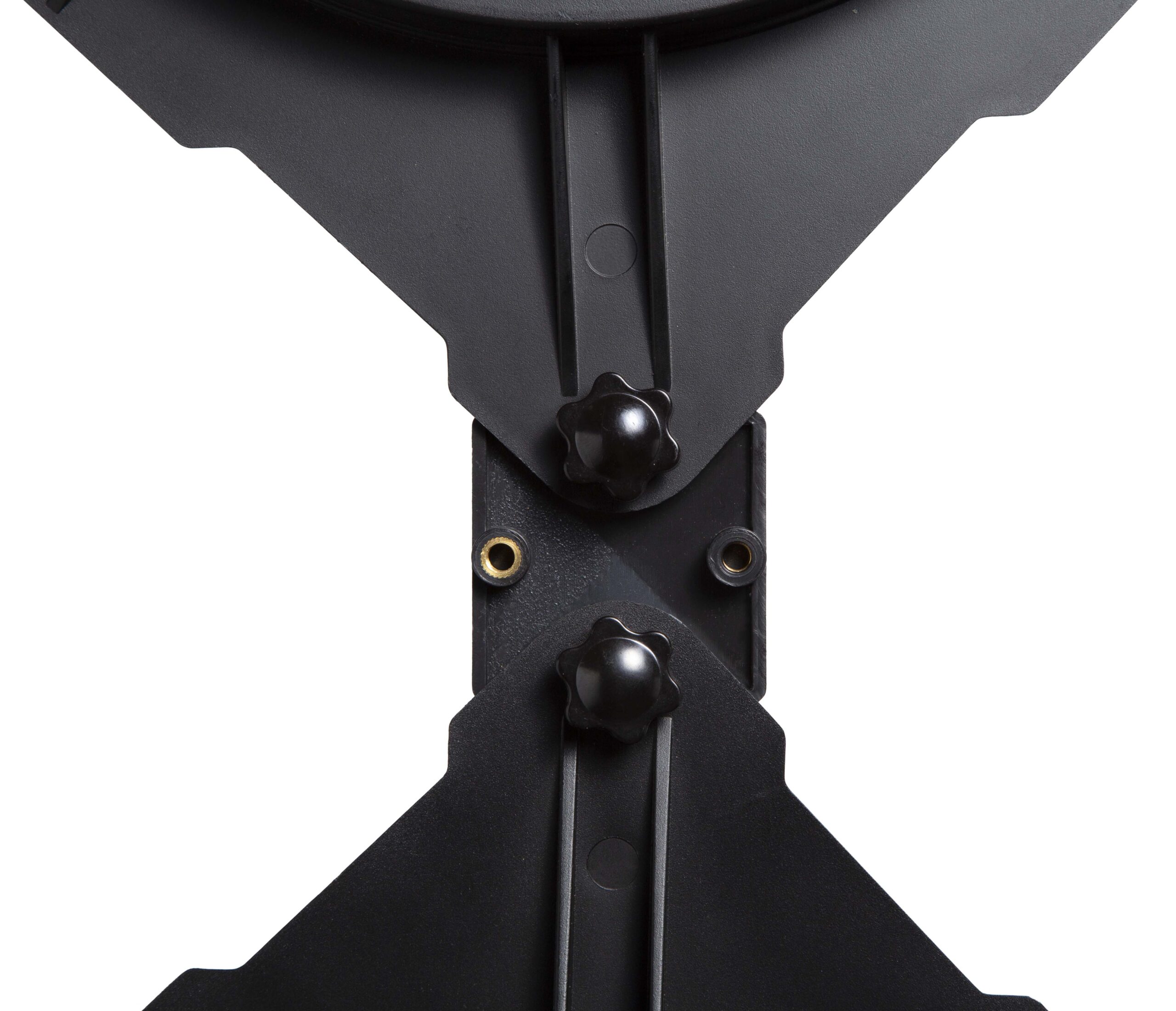

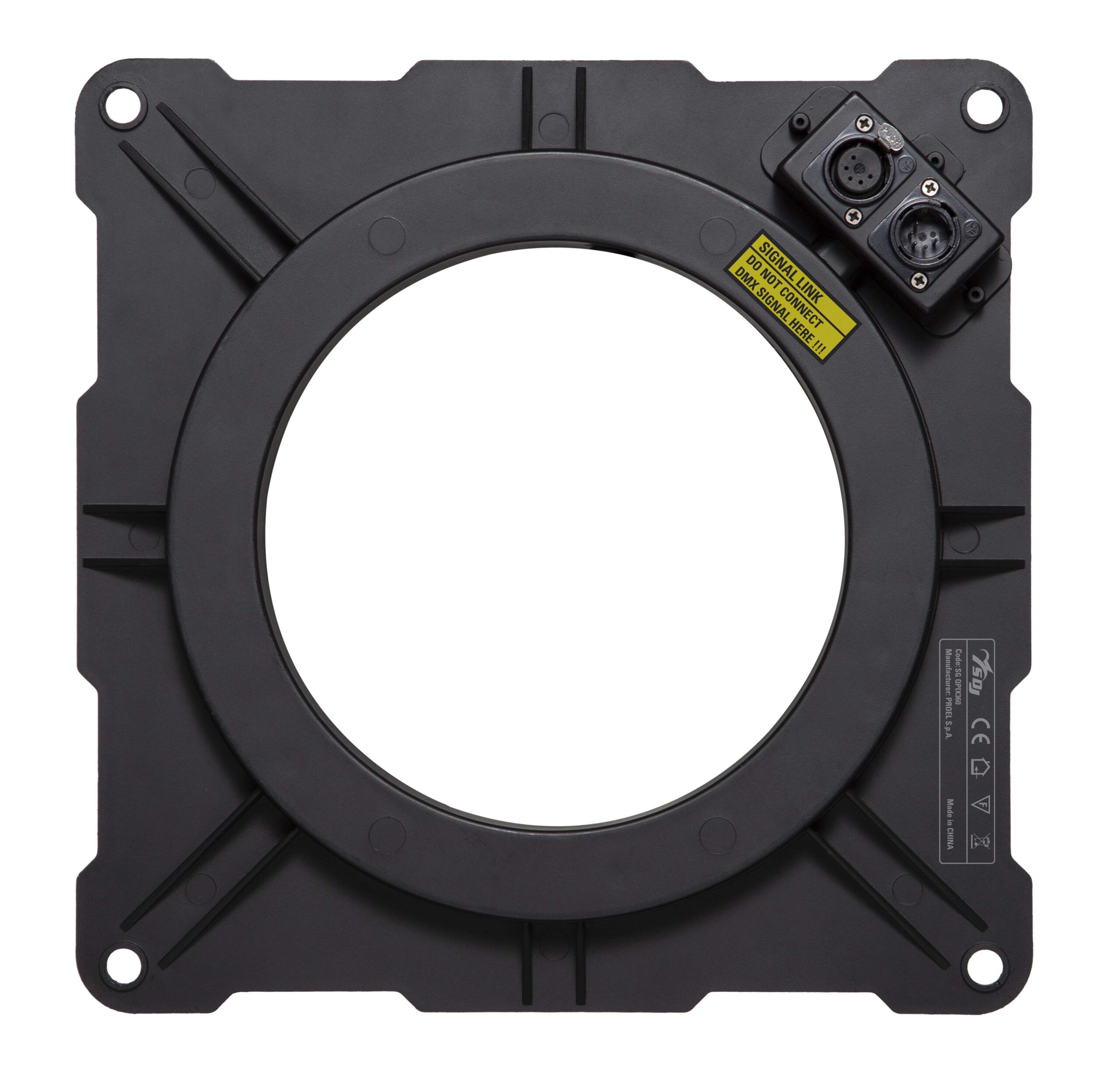

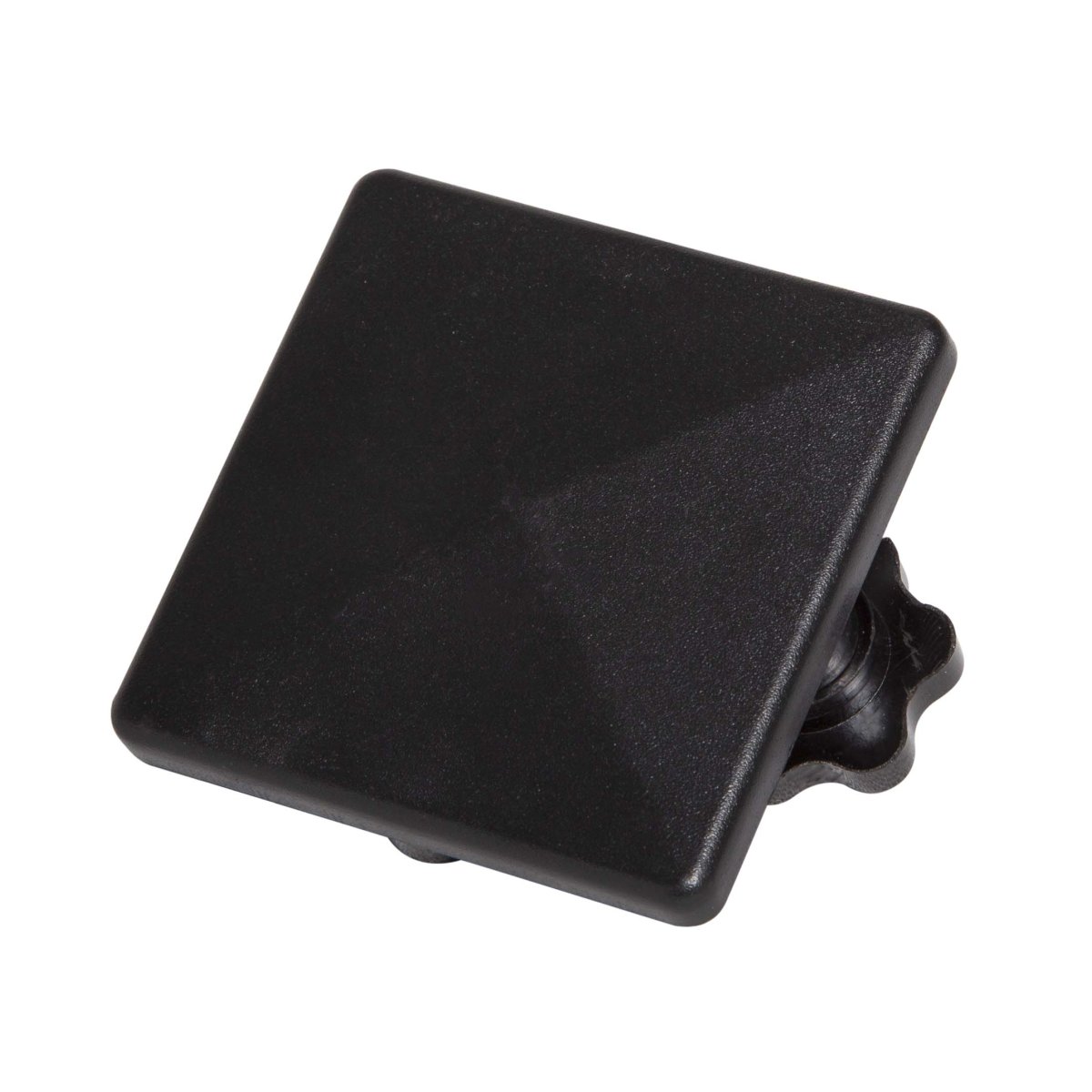

| Structure and cabinet | ABS housing black color 4 Mounting points 2 steel connection ropes (included) for each QPix 360 1 multi ways kit connection (included) for each QPix 360 1 clamp mounting point for each QPix 360 Box 5-poles XLR IN/OUT on the QPix 360 (only for dedicated signal cable) 3-poles XLR IN/OUT on the QPix 360 Box for the DMX signal 5-poles XLR OUT on the QPix 360 Box (only for dedicated signal cable) IP rating 20 |
| Power supply | Maximum power for the QPix 360: 28W Maximum power for the QPix 360 Box: 32W IN/OUT power connection with PowerCON on the QPix 360 Box 85cm signal cable 5-poles XLR (included inside each QPix 360/QPix 360 box) |
| Weight and dimensions | QPix 360 weight: 1kg QPix 360 Box: 2kg QPix 360 sizes: 320x320x30 mm QPix 360 Box sizes: 200x10x70 mm |
| Light source | 144 SMD led RGB high efficiency (for each QPix 360) Led refresh frequency >400Hz flicker free |
| Optic system | Viewing angle 120° x 120° Flat smoked diffuser (flat white diffuser on request) 24 sectors control (for each QPix 360) Pitch 16,6 mm |
| Color system | RGB led source |
| Effects | Individual control for each RGB sectors Linear dimmer Electronic strobe Color macro and sectors macro can be recalled by DMX |
| Control and programming | 6 different DMX configuration available 4/7/18/108/432/436 Proprietary signal control between QPix 360 (cable include) DMX control by QPix 360 BOX (sold separately) Each QPix 360 BOX control 6 pcs of QPix 360 maximum Master/Slave mode |
| Structure and cabinet | ABS housing black color 4 Mounting points 2 steel connection ropes (included) for each QPix 360 1 multi ways kit connection (included) for each QPix 360 1 clamp mounting point for each QPix 360 Box 5-poles XLR IN/OUT on the QPix 360 (only for dedicated signal cable) 3-poles XLR IN/OUT on the QPix 360 Box for the DMX signal 5-poles XLR OUT on the QPix 360 Box (only for dedicated signal cable) IP rating 20 |
| Power supply | Maximum power for the QPix 360: 28W Maximum power for the QPix 360 Box: 32W IN/OUT power connection with PowerCON on the QPix 360 Box 85cm signal cable 5-poles XLR (included inside each QPix 360/QPix 360 box) |
| Weight and dimensions | QPix 360 weight: 1kg QPix 360 Box: 2kg QPix 360 sizes: 320x320x30 mm QPix 360 Box sizes: 200x10x70 mm |
