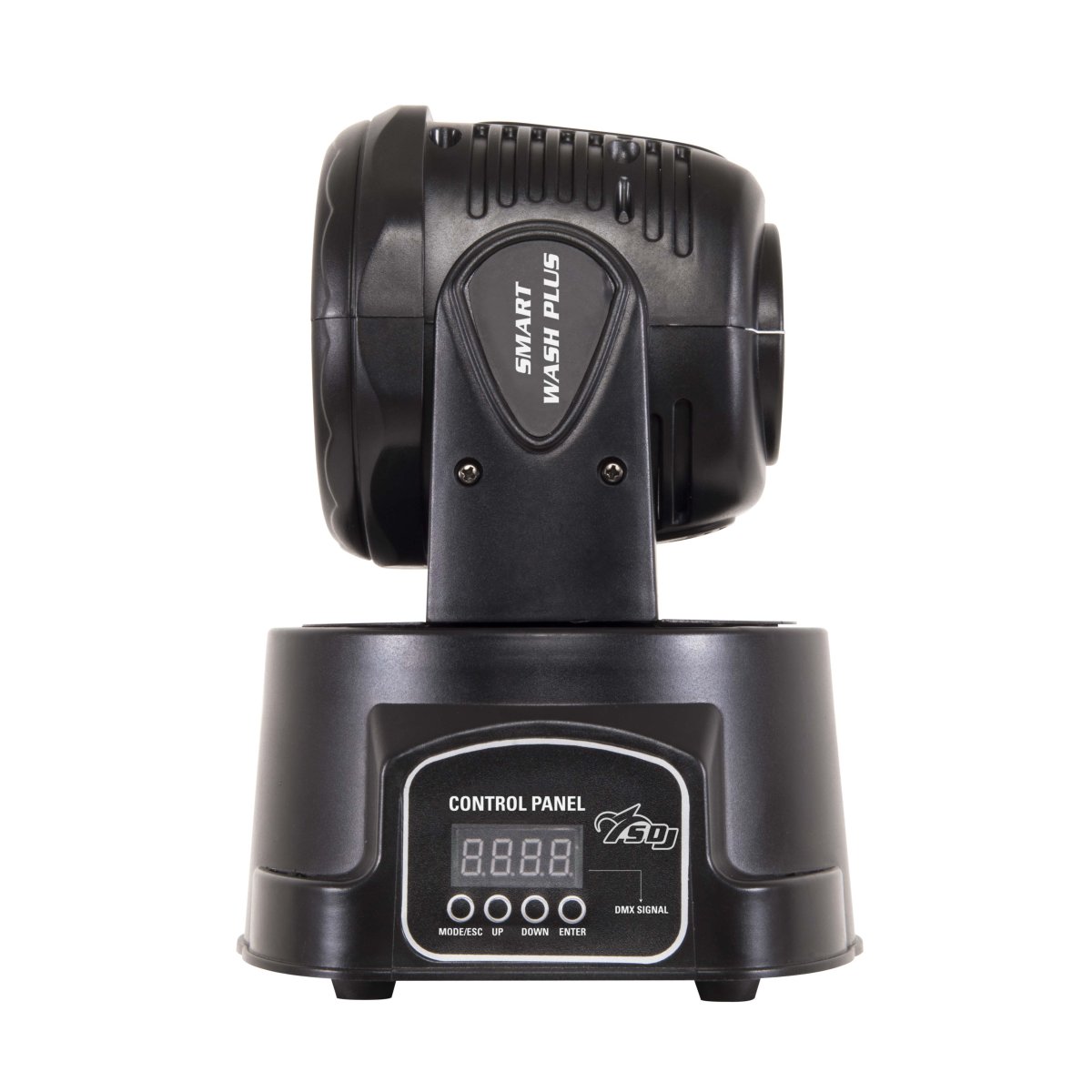

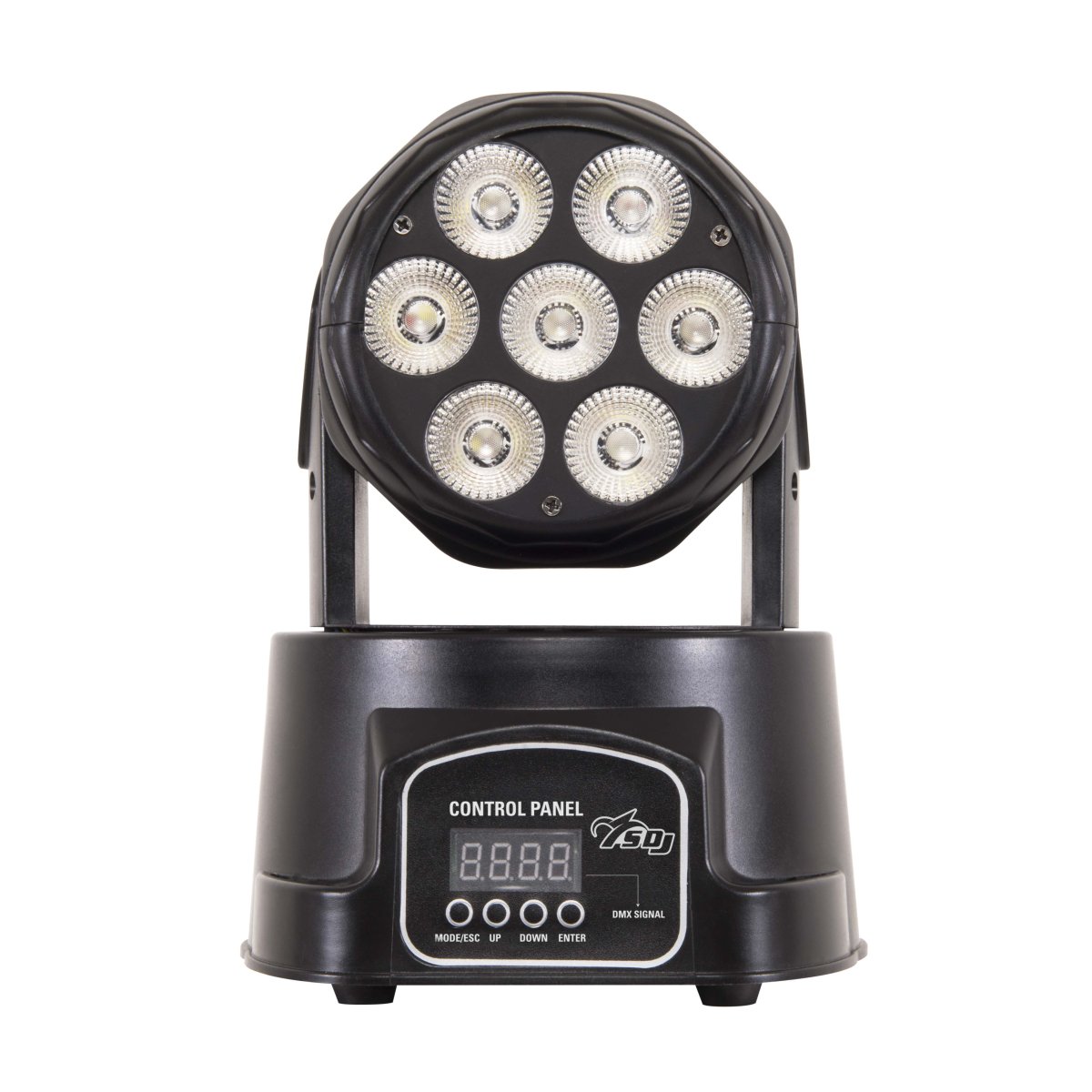

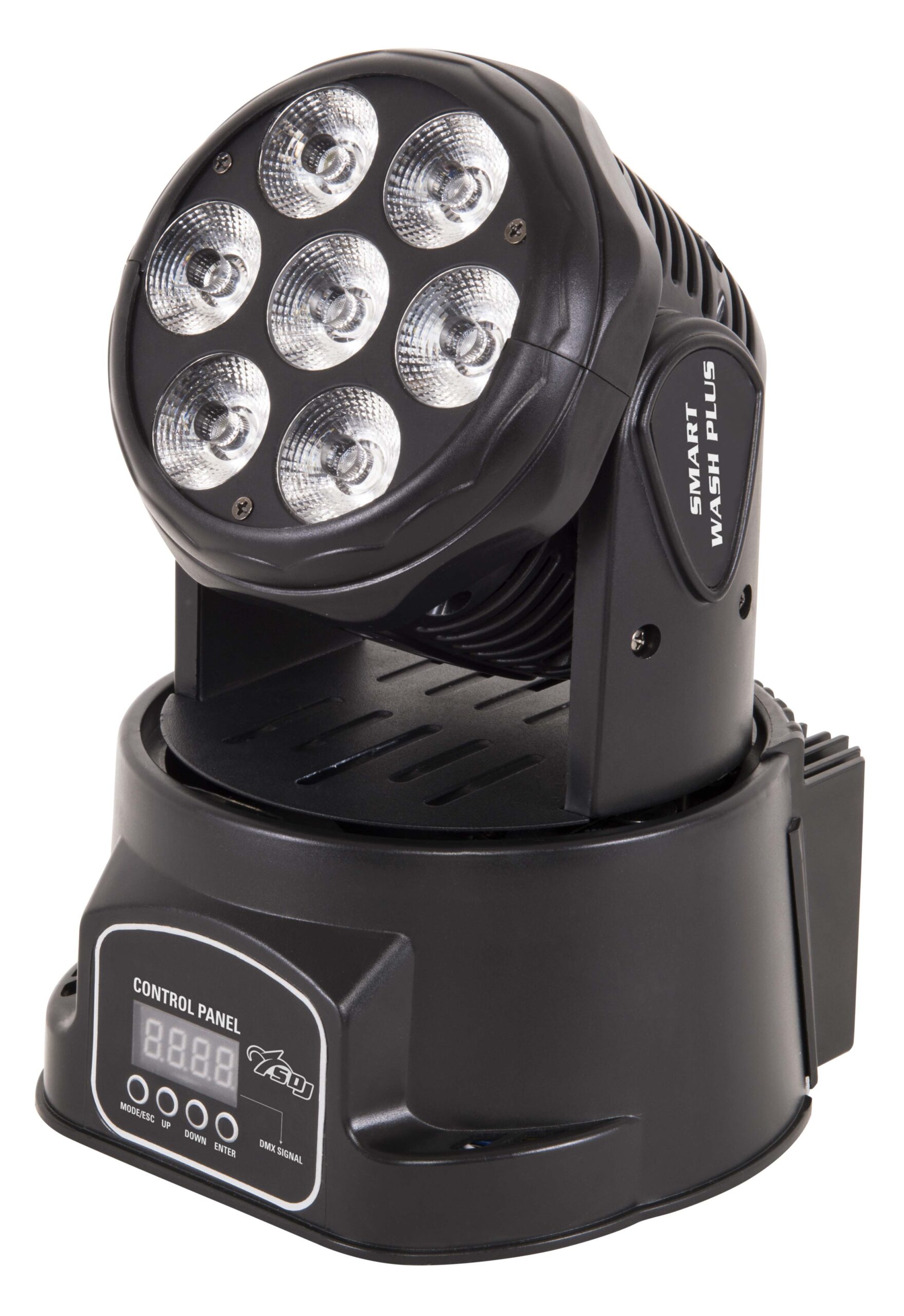

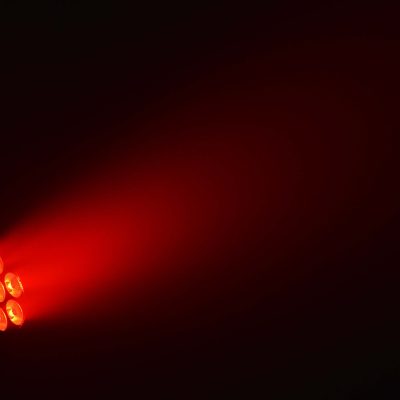

Moving head Smart wash led 7X12W RGBWA/FC

Smart Wash Plus
Led wash moving head
7X12W led RGBWA
DMX control

Description

SMART is the first real line created for the DJ world and for occasional users, designed in every detail to offer maximum possibilities to those approaching the world of lighting or indoor entertainment for the first time. Smart wash is a mobile high lighting efficiency head. Thanks to the use of these innovative high yield LED sources 5 in 1 RGBWA/FC it is possible to obtain a number of Colour hues. The internal software was designed using one of the most intuitive interfaces of the market, giving the user many customisation options that can be accessed directly from the control panel.

SG SMTWHPLUS

Technical Specifications

Light source 7x12W led RGBWA Full Color
LED lifespan: > 50.000h
Optic system Beam Angle: 25°
Color system Led Source 5 in 1 RGBWA Full Color
Infinite chromatic possibilities
Effects Linear dimmer 0-100%
Adjustable strobe effect
Color macro selectable from DMX
Control and programming 2 DMX configurations available: 5/14 channels
Protocol USITT DMX 512
Master/Slave mode
Sound mode with adjustable microphone sensitivity
Auto mode
Structure and cabinet Black metal housing and high resistance plastic materials
Red LED display
Pan angle 540°
Tilt angle 180°
Mounting points: 1 omega holder + “safety ring”

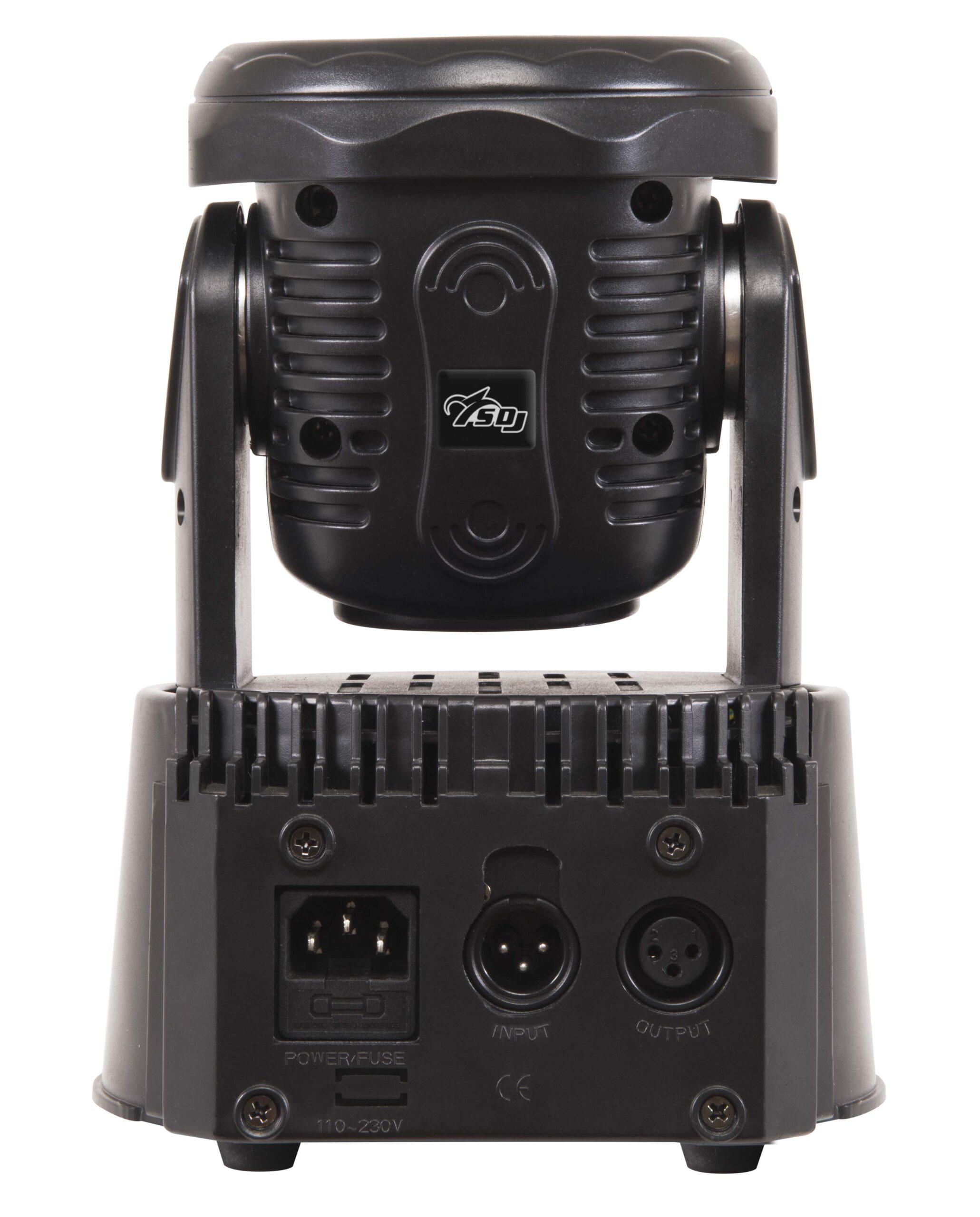

XLR 3-poles DMX IN/OUT connection
IP rating: IP20
Forced air cooling system
Power supply Input Voltage: AC~100-240V, 50/60 Hz
Switching power supply unit
Power consumption: 100W
Power supply cable 1mt included
Weight and dimensions Net weight: 3,5 kg
Dimensions 175x175x250 mm
