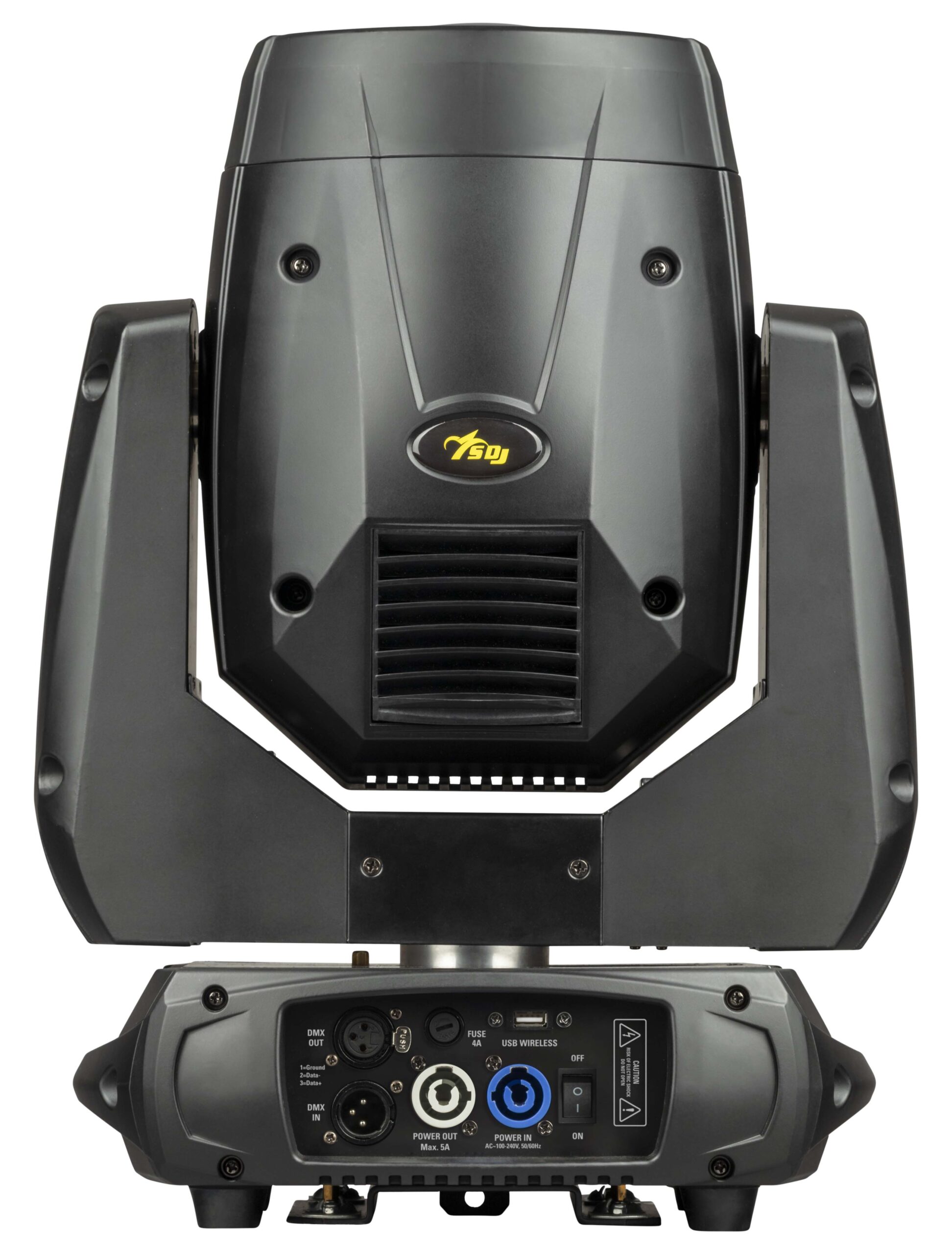

| Light source | Osram Sirius HRI 231W Lamp lifespan: 2000 h Electronic ballast |

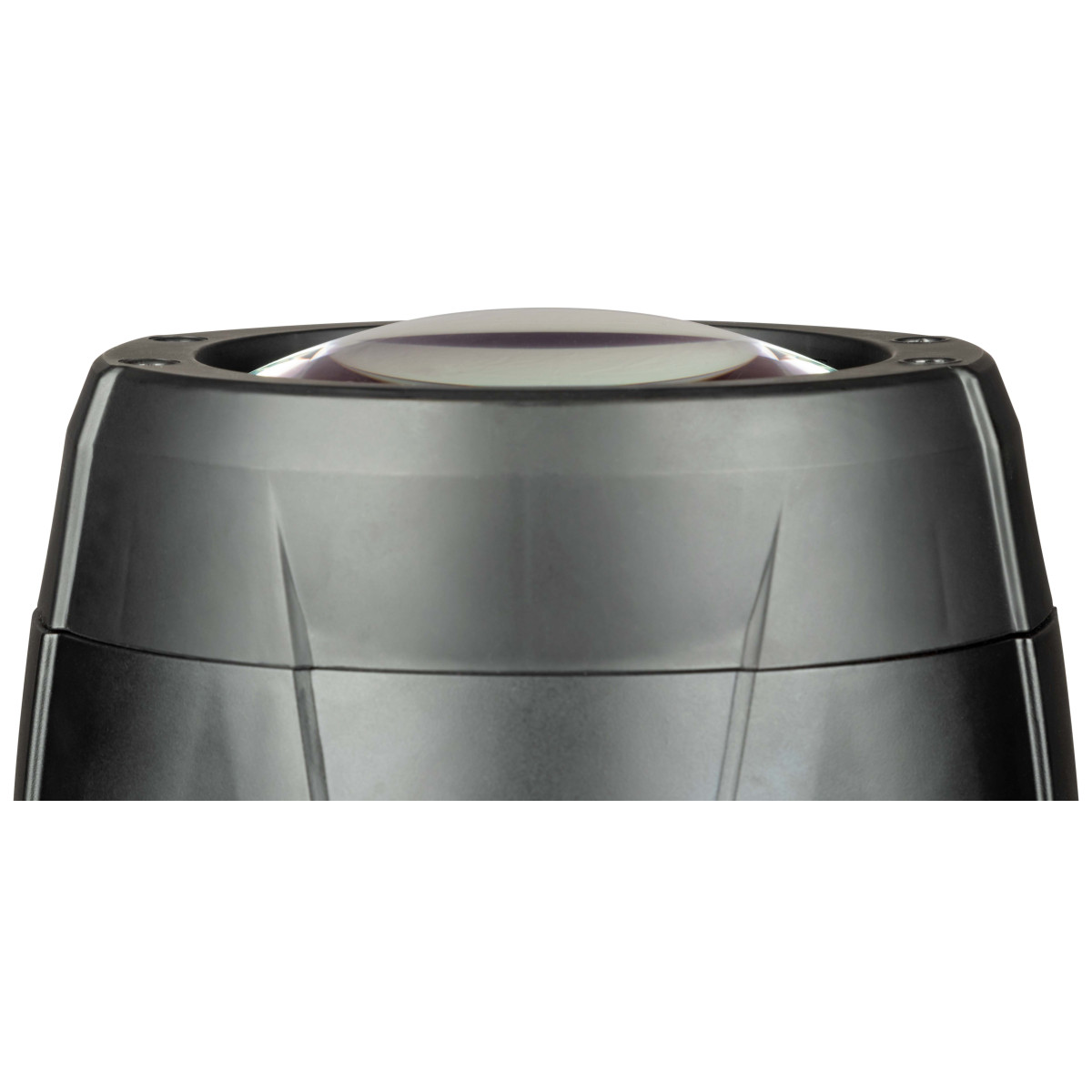

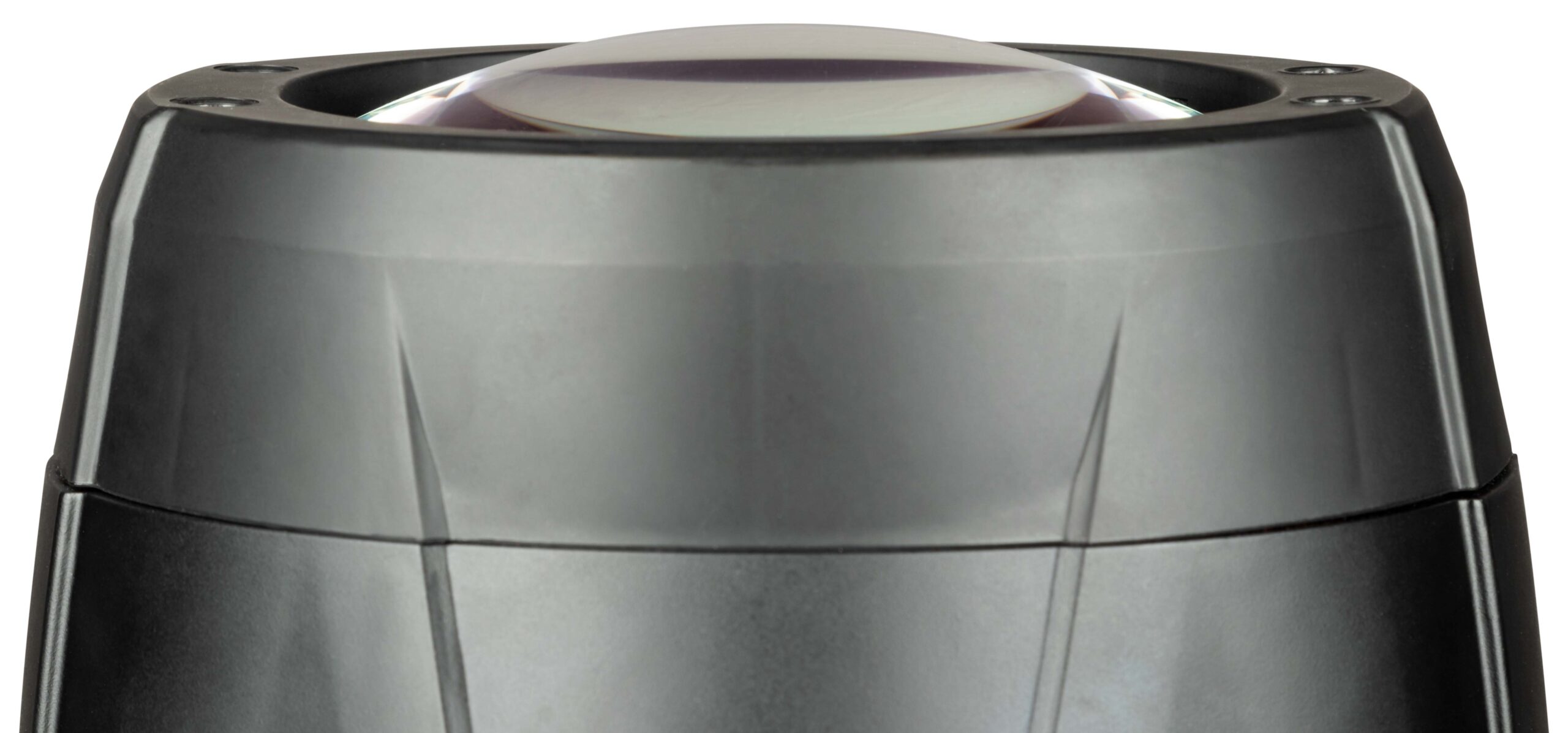

| Optic system | Beam Angle: 2,5° Electronic focus Illuminance: 66.000 lux @ 15 mt |
| Color system | Color wheel with 11 dichroic filters + white |
| Effects | Linear dimmer 0 – 100 % Electronic strobo, pulse, random Fixed gobo wheel with 16 gobos and 3 steps “beam reducer” Gobo shaking effect Gobo scroll effect with adjustable speed 16 + 24 facet circular rotating prism with adjustable speed Color rainbow effect Selectable half color function Frost filter |
| Control and programming | 3 DMX configurations available: 13/15/17 channels Protocol USITT DMX 512 Master / Slave mode Sound mode with adjustable microphone sensitivity Auto mode with 9 internal programs selectable from display Reset function via DMX |

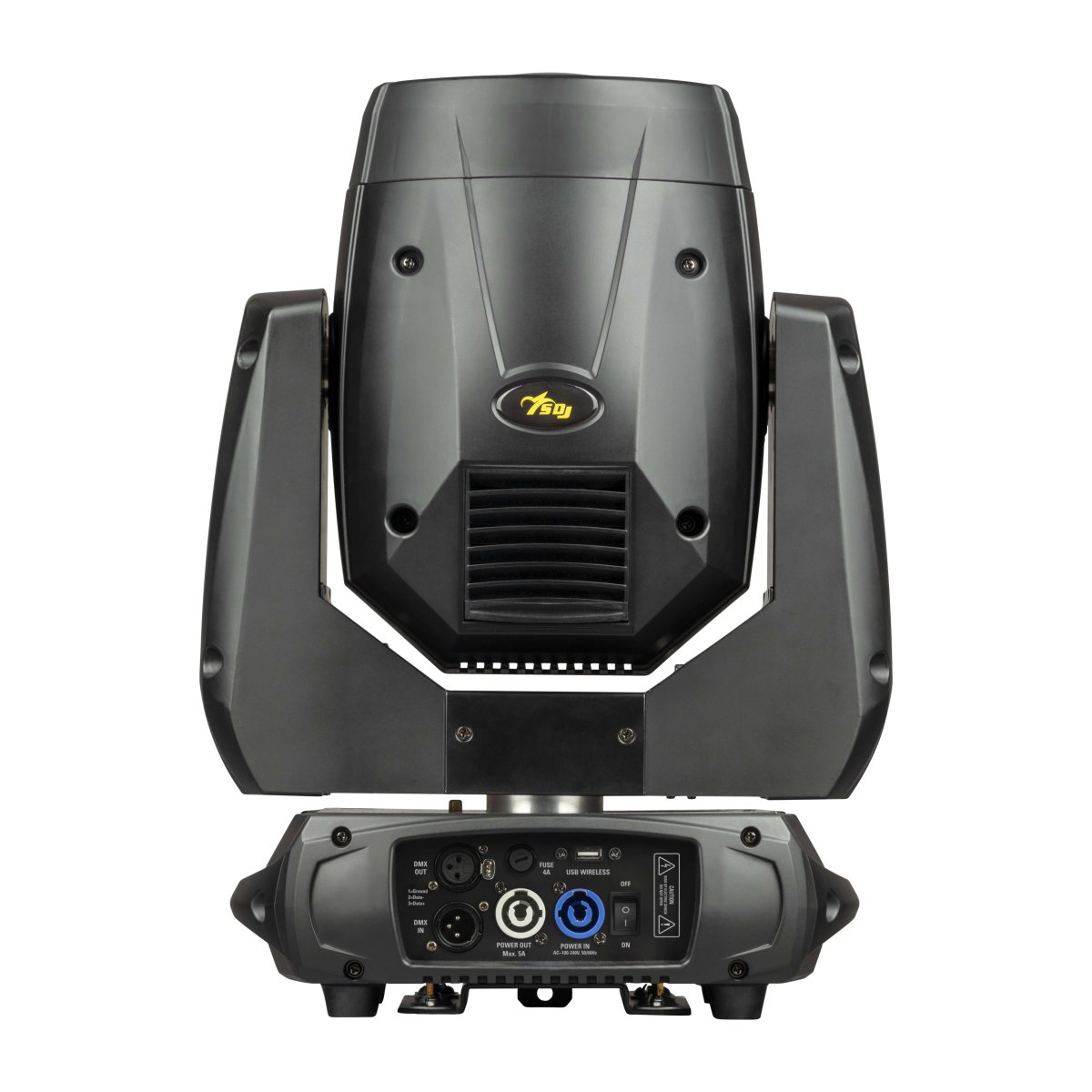

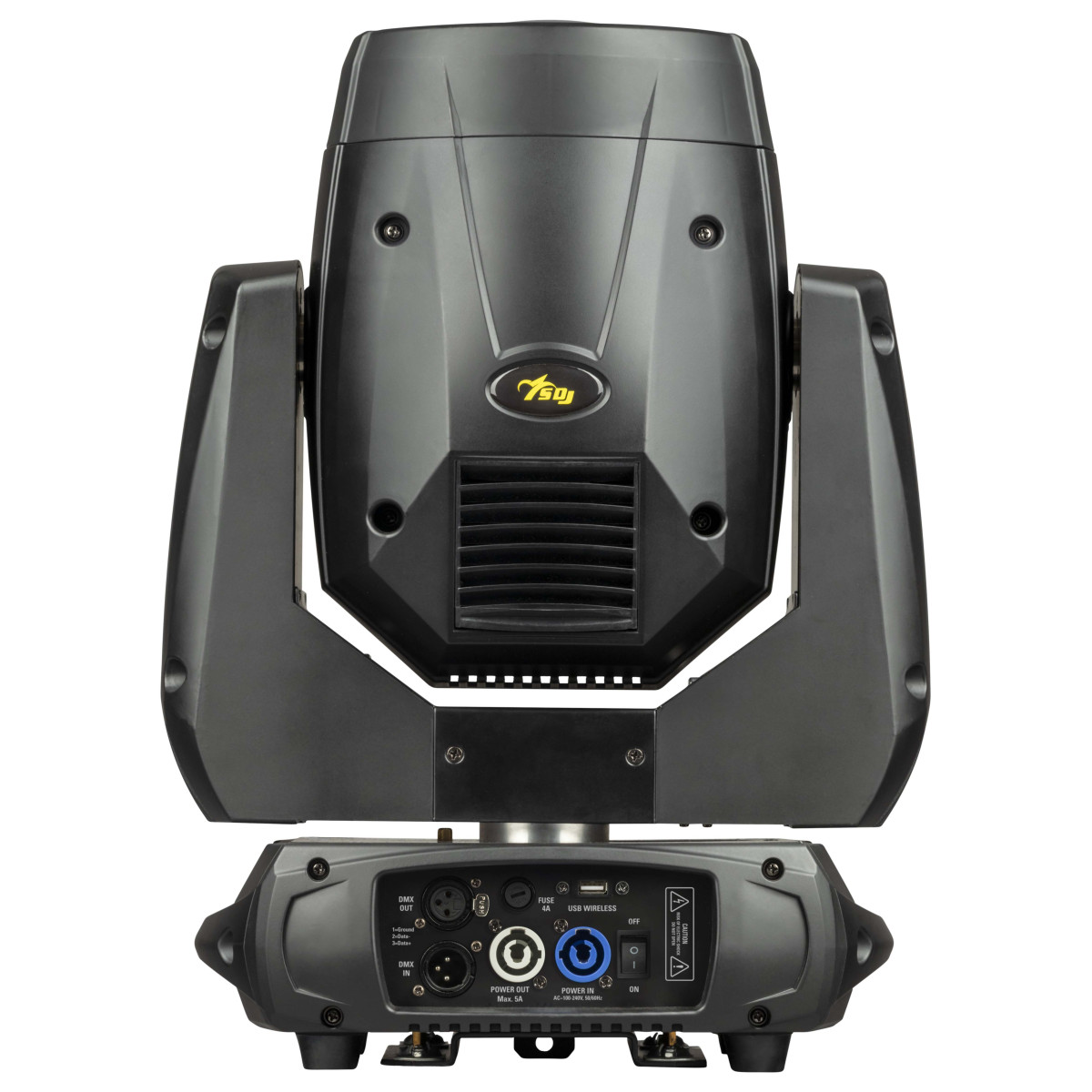

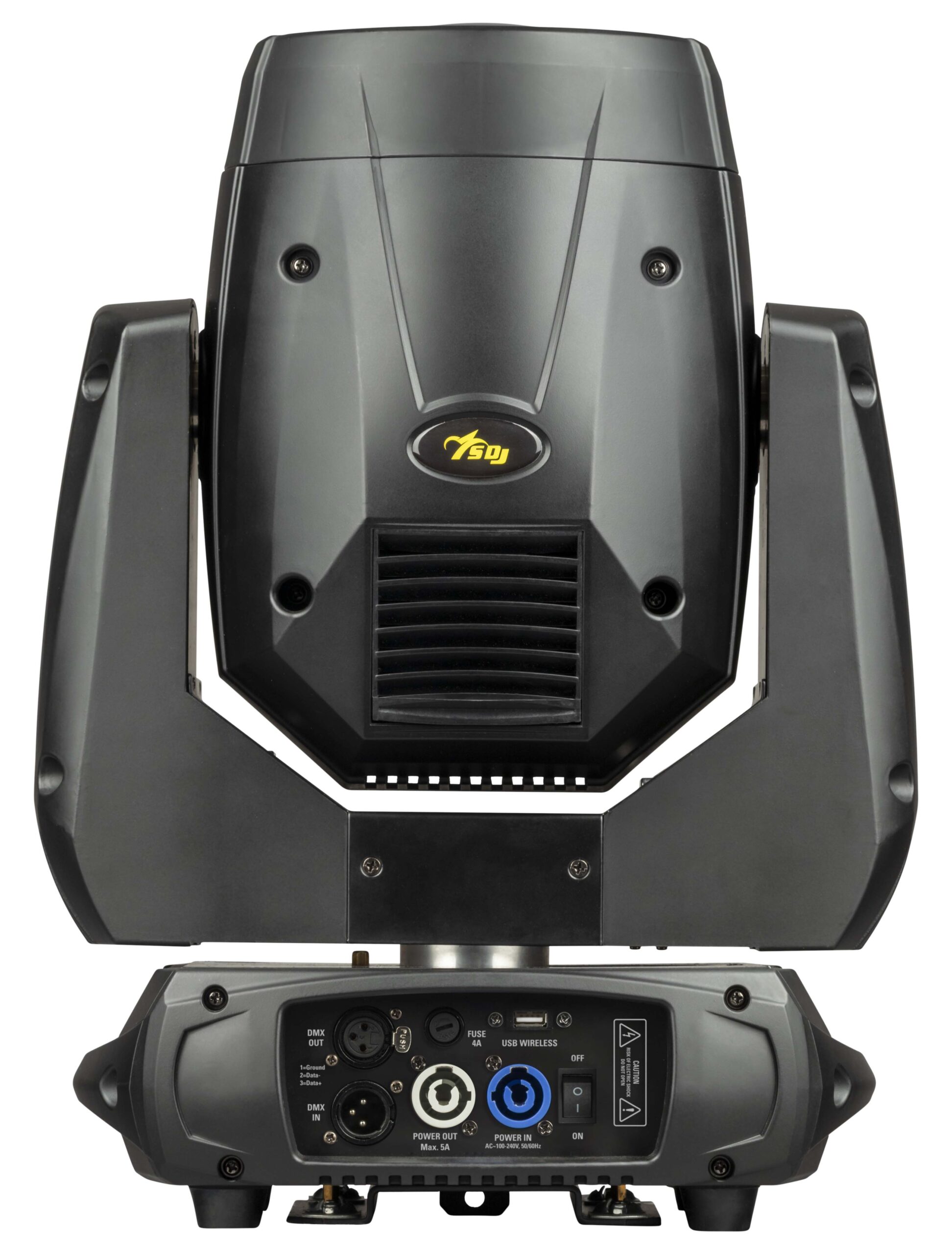

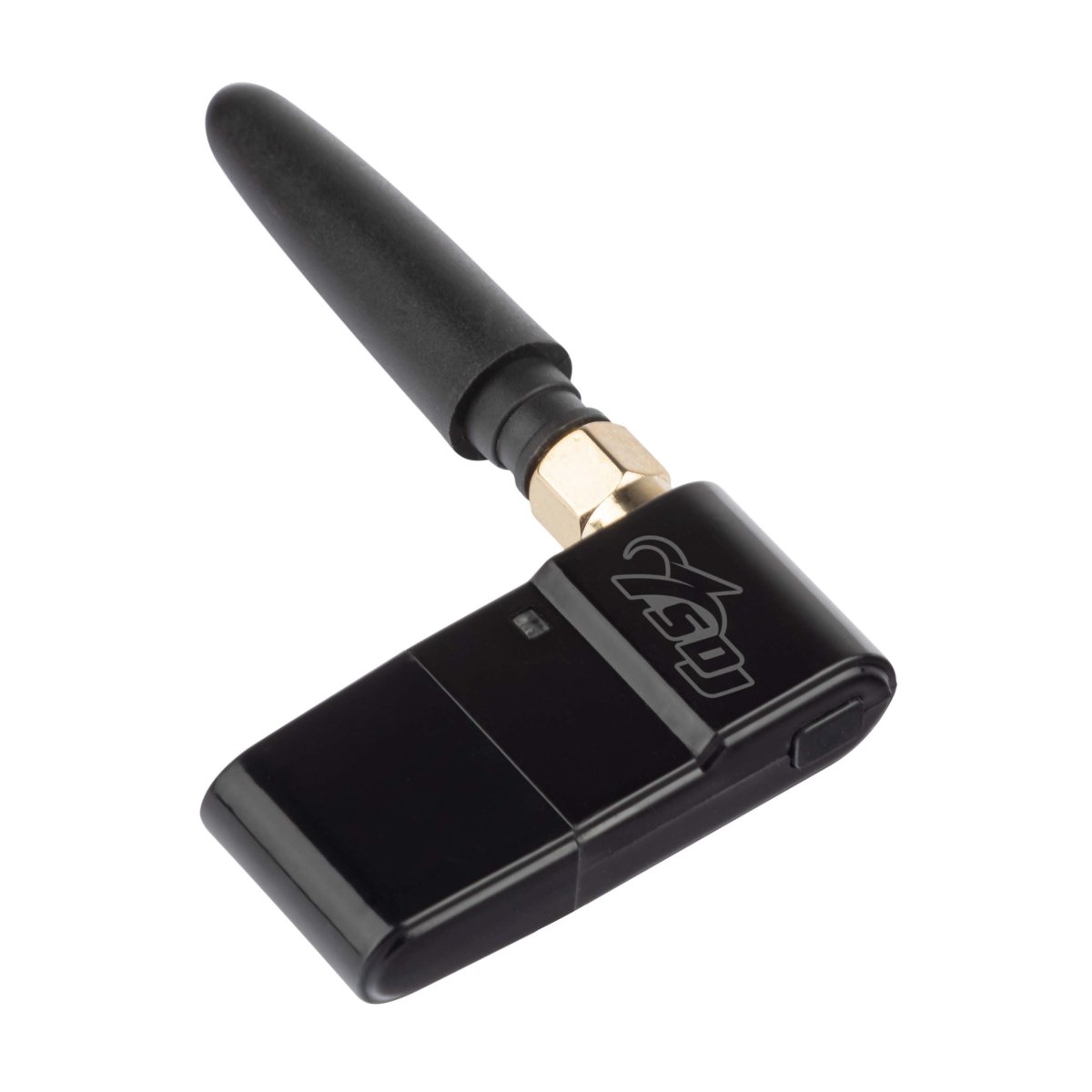

| Structure and cabinet | Black metal housing and high resistance plastic material Graphic LCD color display Pan angle: 360°/540°/630° Tilt angle: 90°/180°/270° Mounting points: 2 pairs of 1 / 4 turn locks Automatic repositioning of Pan&Tilt after accidental movements XLR 3-poles DMX IN/OUT connectors USB port for optional wireless DMX receiver (order code: SG WECONUSB) IP Rating: IP 20 Forced air cooling system with electronic control |
| Power supply | Input Voltage: AC~100 – 240 V, 50/60 Hz Switching power supply unit Max power: 360W @ 230VAC Power IN/OUT Powercon connectors Power supply cable 1 mt included |
| Weight and dimensions | Net weight: 12,5 kg Dimensions: 338 x 469 x 224 mm |
| Light source | Osram Sirius HRI 231W Lamp lifespan: 2000 h Electronic ballast |
| Optic system | Beam Angle: 2,5° Electronic focus Illuminance: 66.000 lux @ 15 mt |
| Color system | Color wheel with 11 dichroic filters + white |
| Effects | Linear dimmer 0 – 100 % Electronic strobo, pulse, random Fixed gobo wheel with 16 gobos and 3 steps “beam reducer” Gobo shaking effect Gobo scroll effect with adjustable speed 16 + 24 facet circular rotating prism with adjustable speed Color rainbow effect Selectable half color function Frost filter |
| Control and programming | 3 DMX configurations available: 13/15/17 channels Protocol USITT DMX 512 Master / Slave mode Sound mode with adjustable microphone sensitivity Auto mode with 9 internal programs selectable from display Reset function via DMX |
| Structure and cabinet | Black metal housing and high resistance plastic material Graphic LCD color display Pan angle: 360°/540°/630° Tilt angle: 90°/180°/270° Mounting points: 2 pairs of 1 / 4 turn locks Automatic repositioning of Pan&Tilt after accidental movements XLR 3-poles DMX IN/OUT connectors USB port for optional wireless DMX receiver (order code: SG WECONUSB) IP Rating: IP 20 Forced air cooling system with electronic control |
| Power supply | Input Voltage: AC~100 – 240 V, 50/60 Hz Switching power supply unit Max power: 360W @ 230VAC Power IN/OUT Powercon connectors Power supply cable 1 mt included |
| Weight and dimensions | Net weight: 12,5 kg Dimensions: 338 x 469 x 224 mm |
