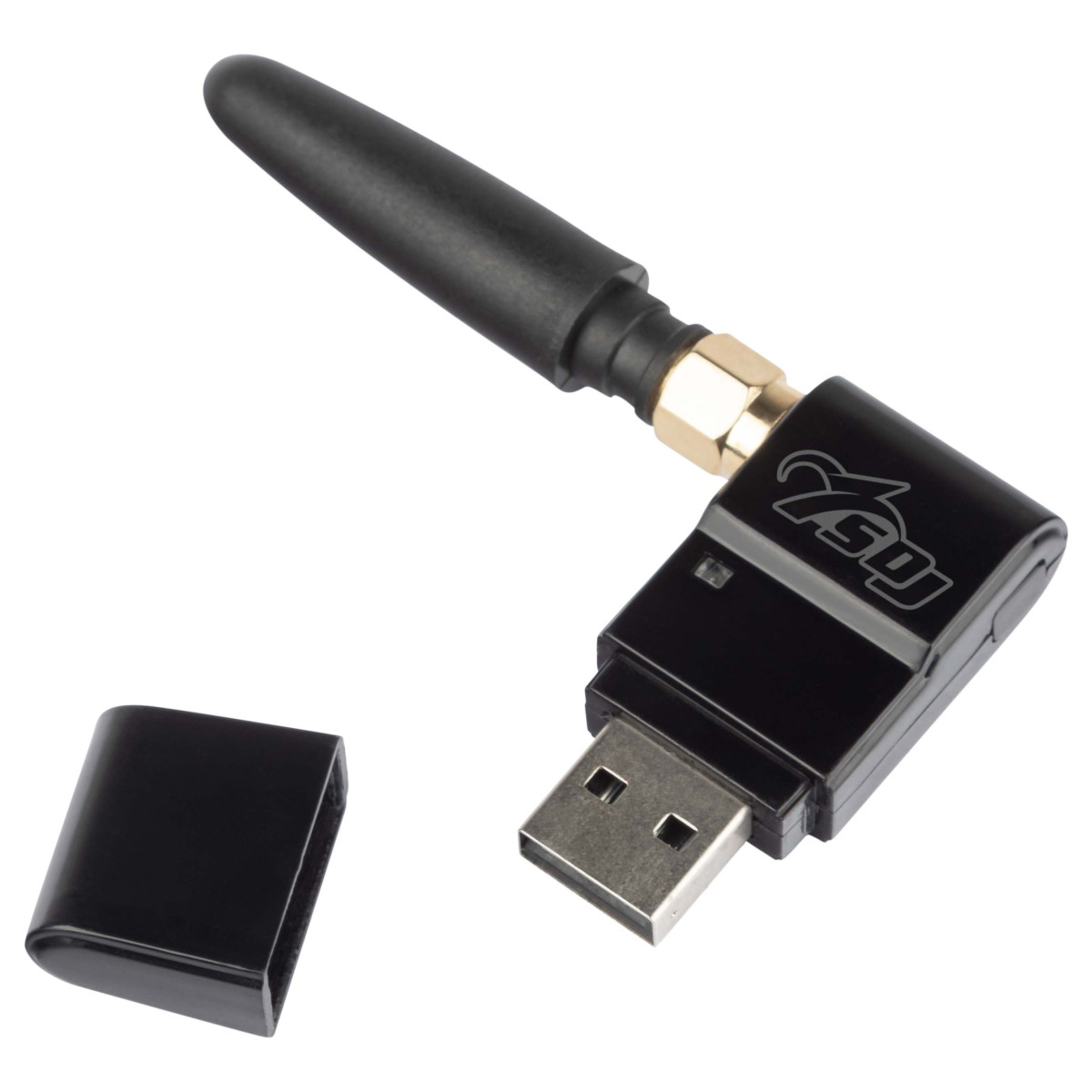

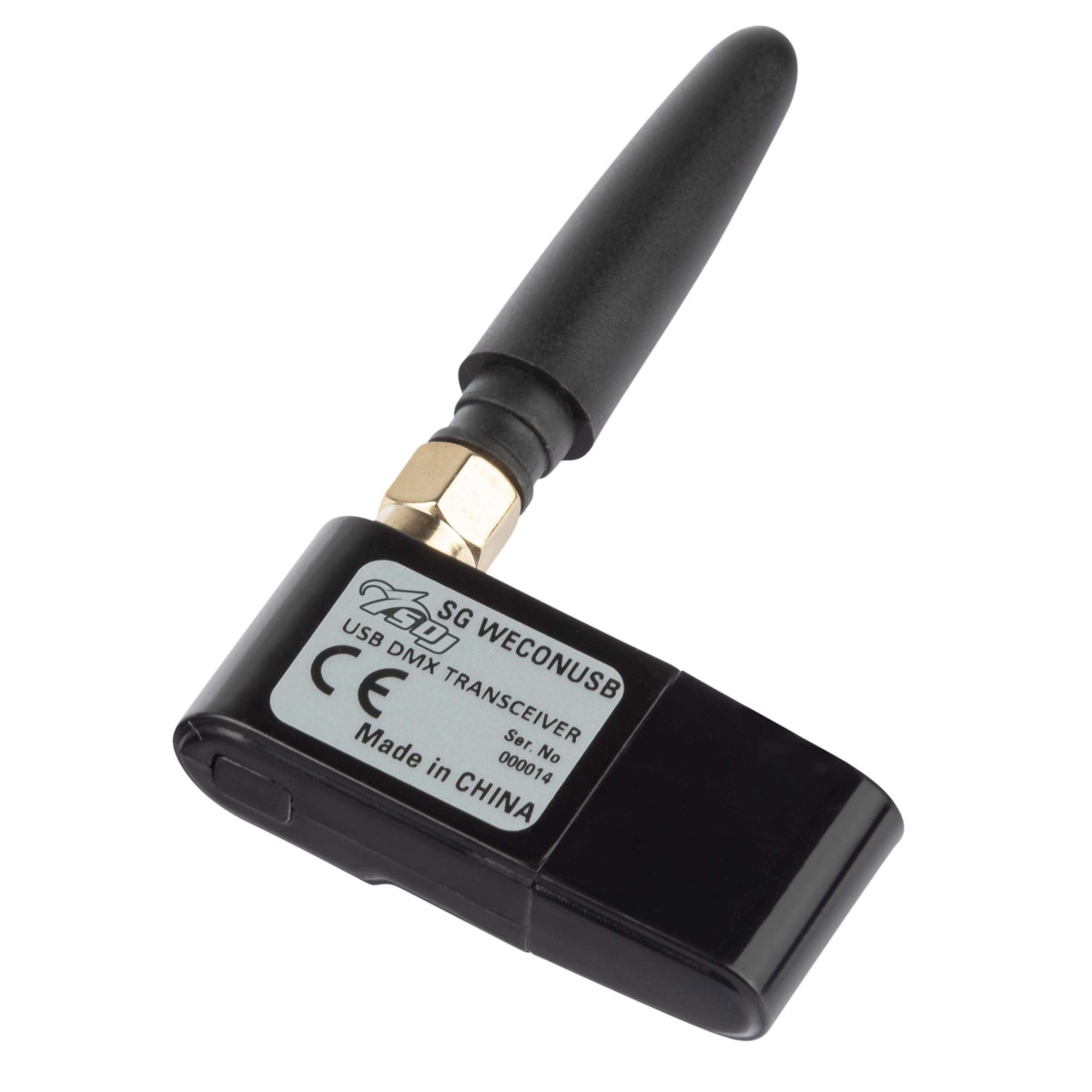

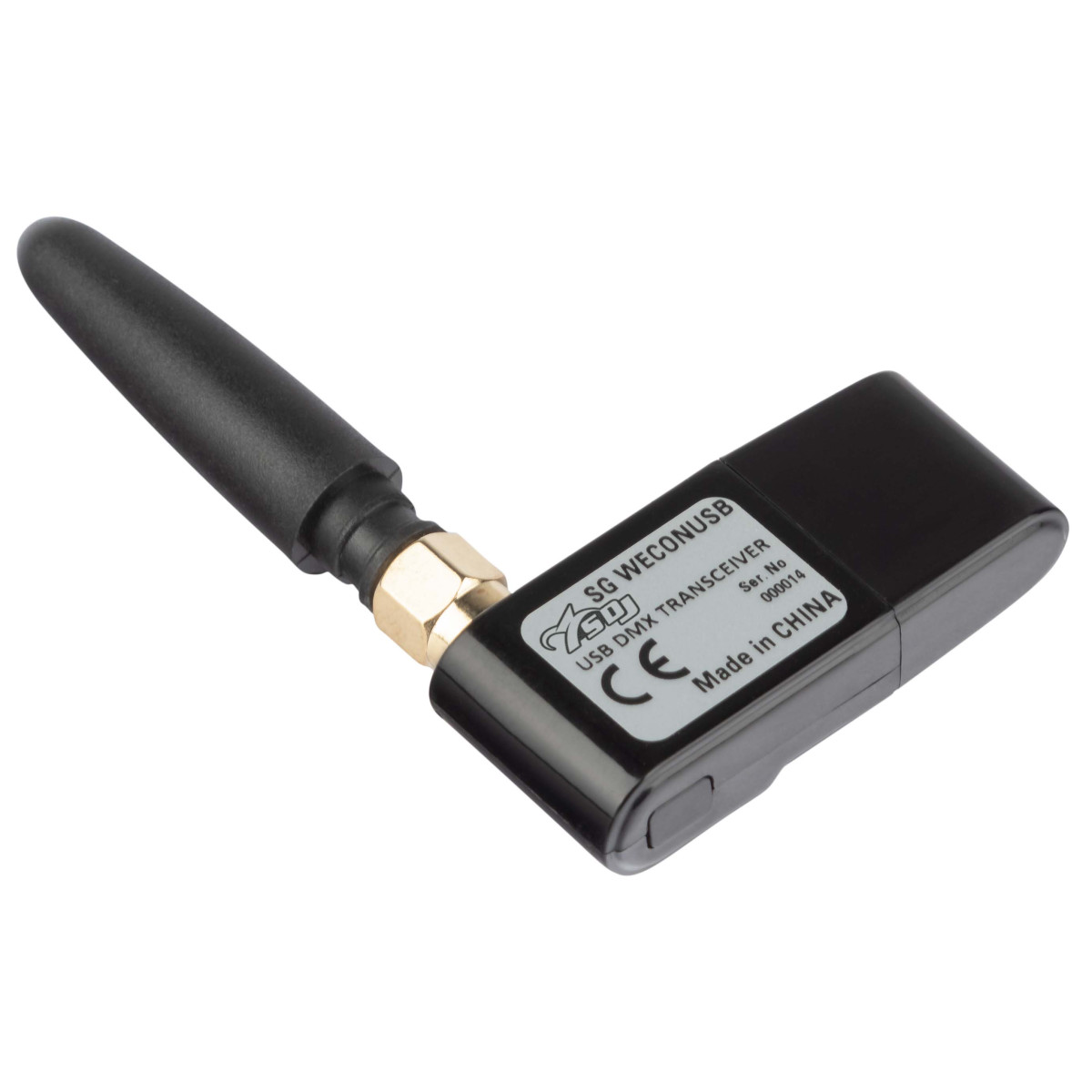

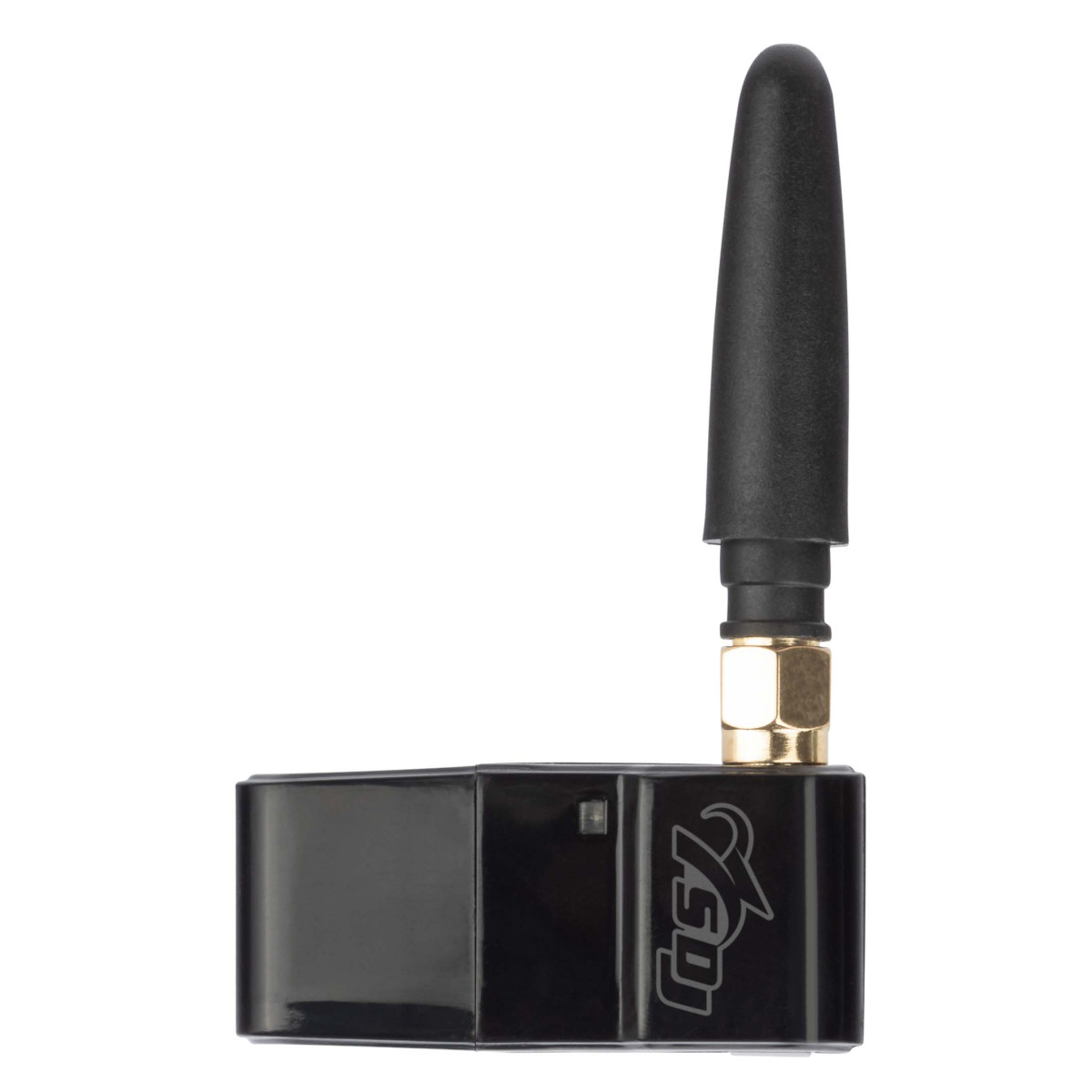

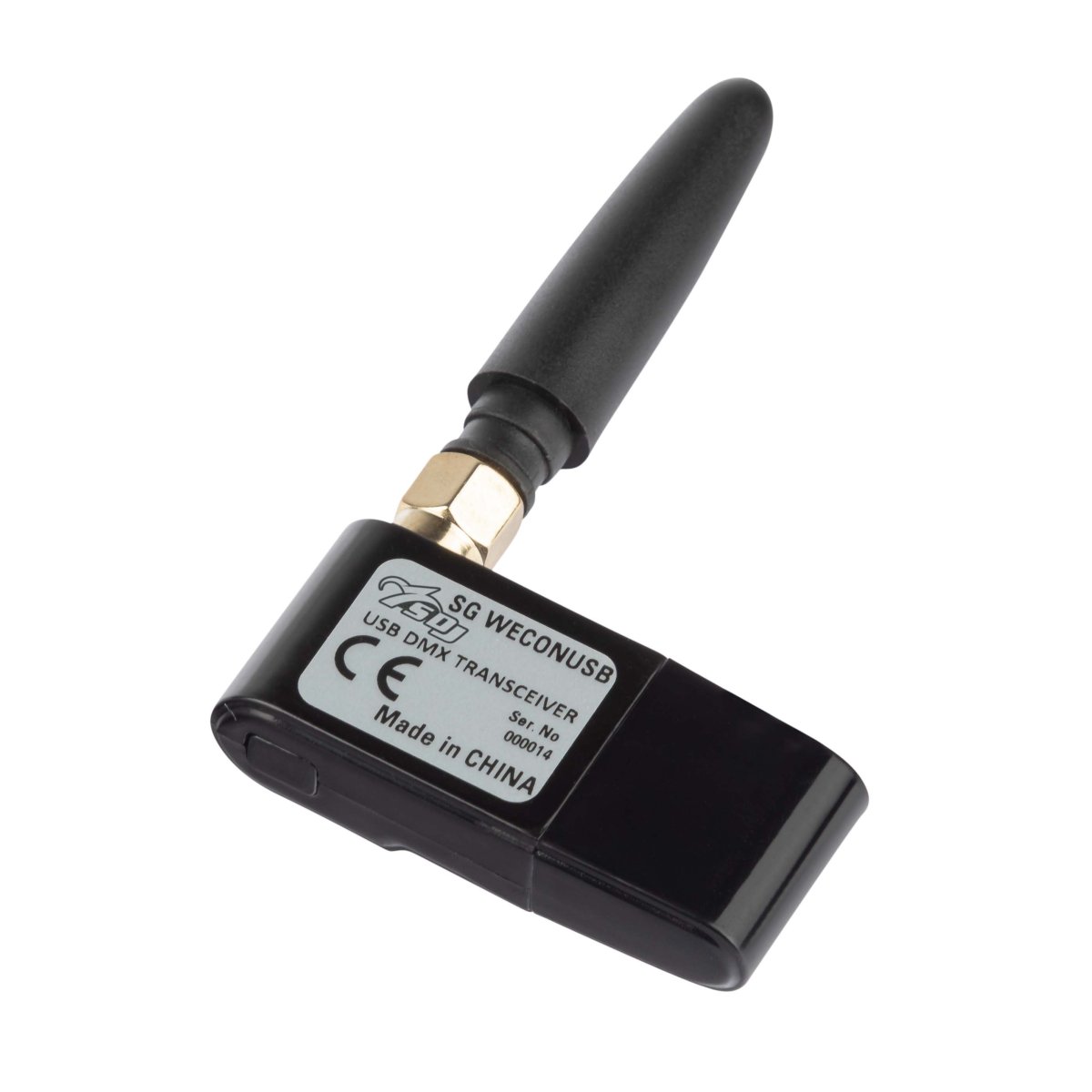

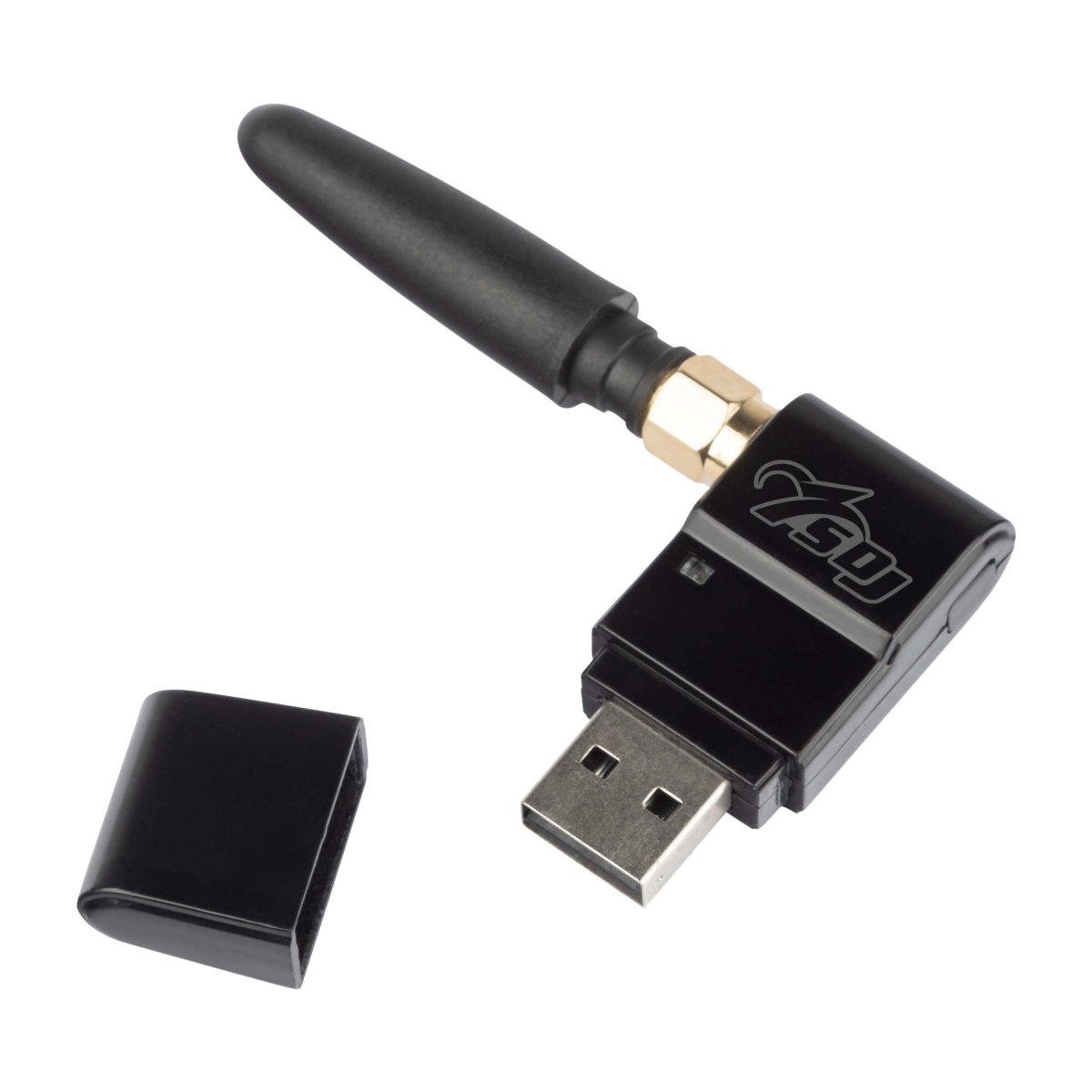

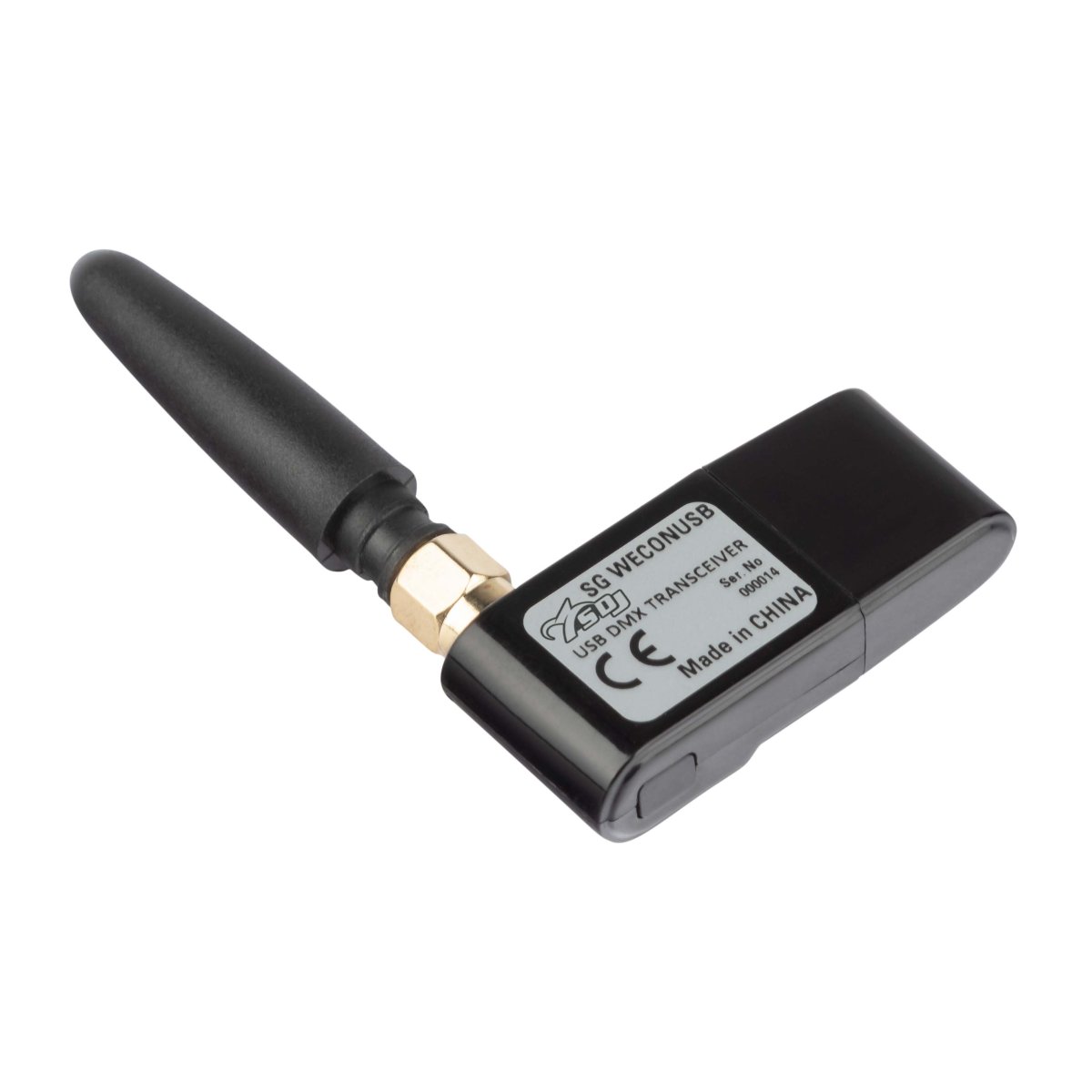

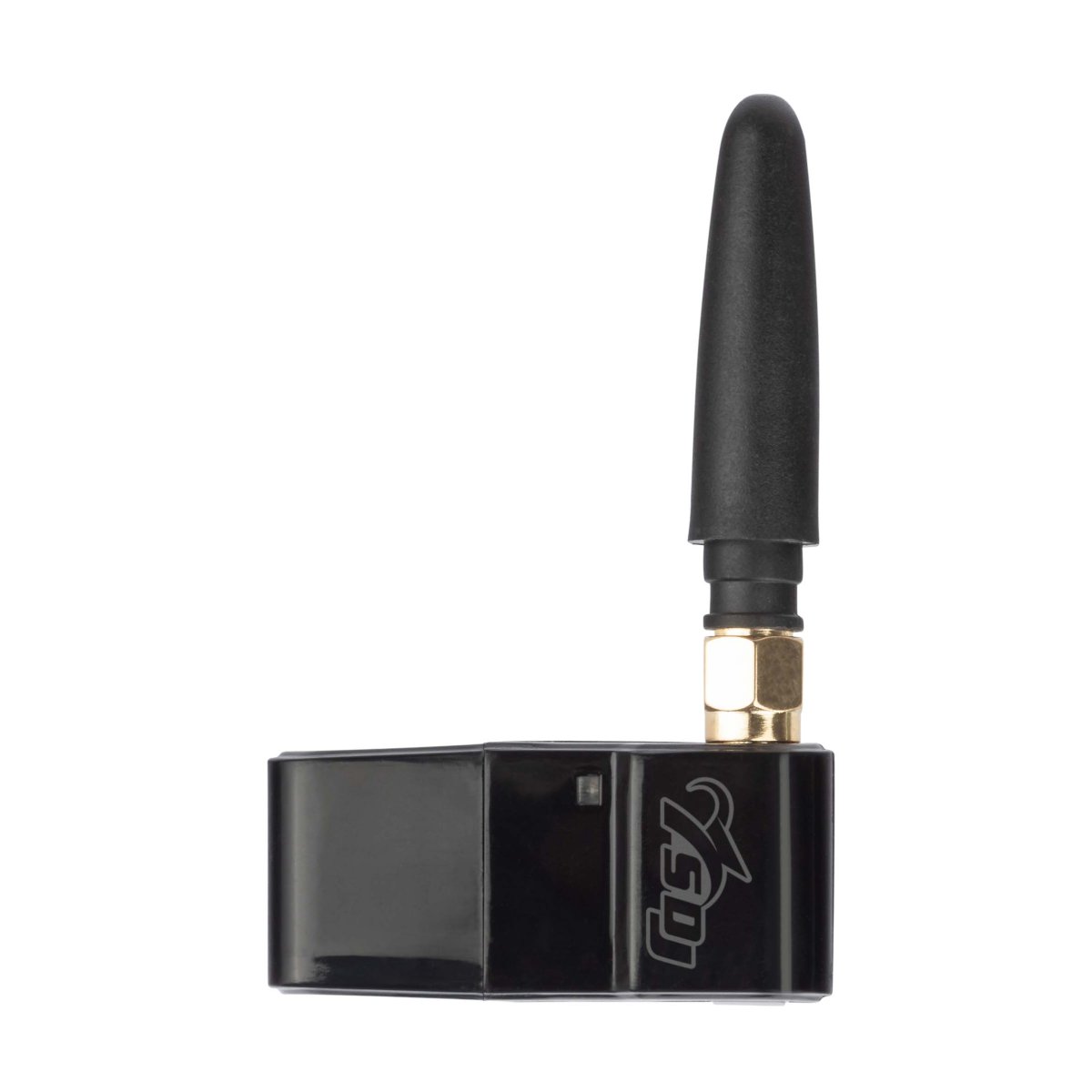

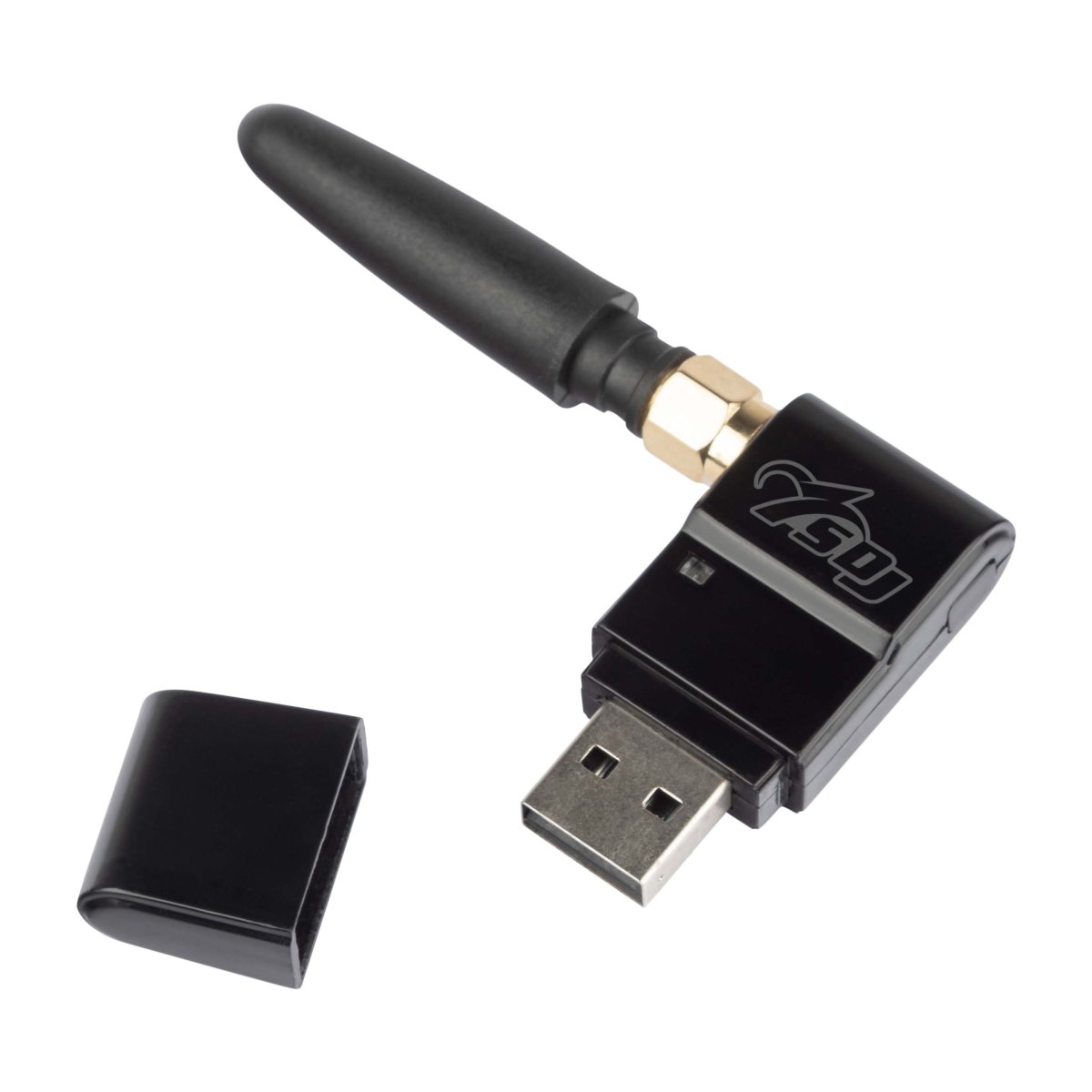

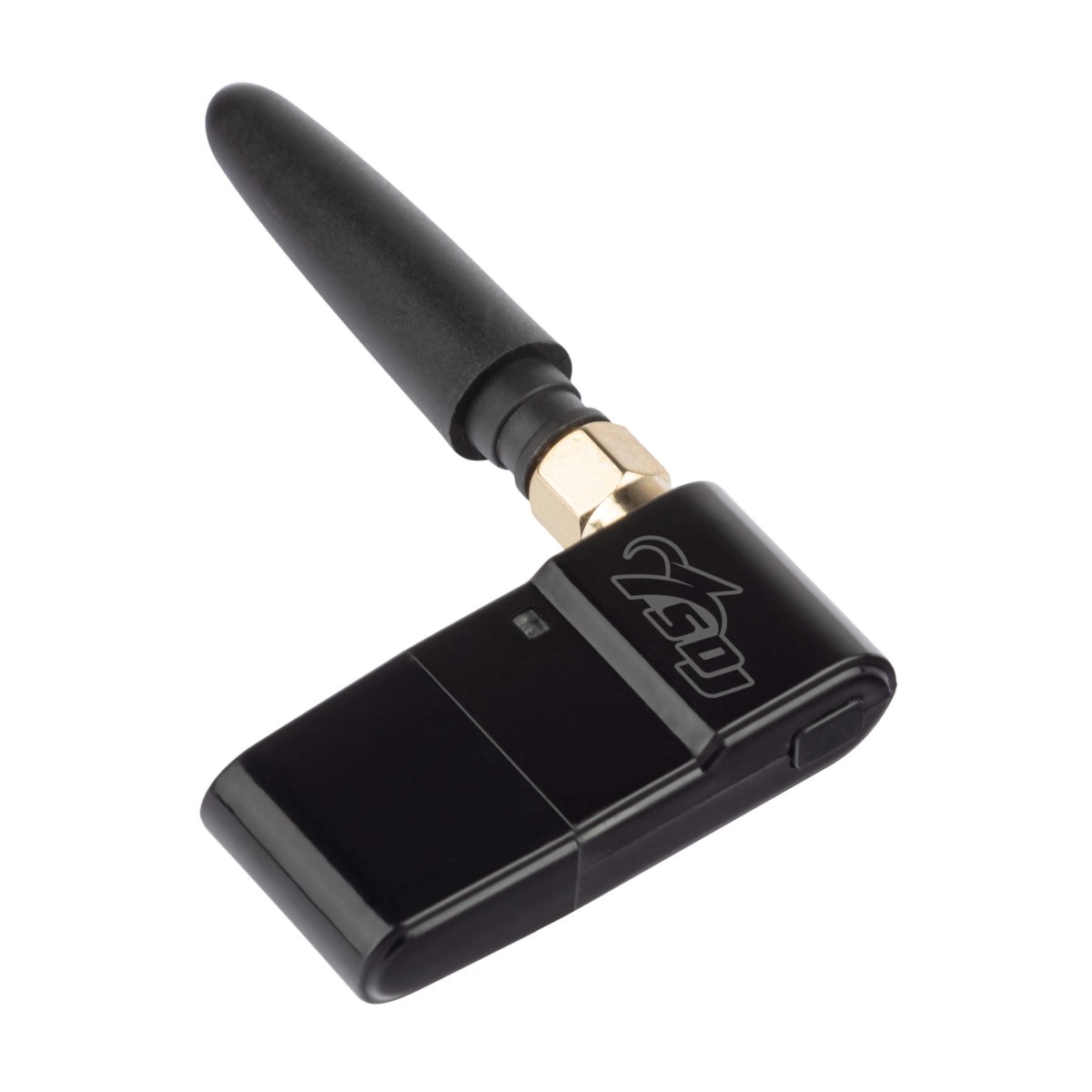

| Technical data | DMX Wireless Receiver Range: 600 meters (line-of-sight) Number of channels: 512 Operational Frequency: Frequency: 2.402 – 2.480GHz, ISM, 79 channels FHSS: 1100 hops / sec Modulation method: GFSK Maximum Transmit Power: 22dBm Receiver Sensitivity: -93dBm 32-bit ARM Processor, DMA transfer without delay USB Type A DMX connector One-touch button with a Tri-color status indicator Groups and dmx protocols easy selection Integrated antenna |
| Power supply | Input voltage: 5VDC with USB Type-A Max Power: 350 mA@5V DC |
| Weight and dimensions | Weight: 60g Dimensions: 40x20x10 mm |
| Technical data | DMX Wireless Receiver Range: 600 meters (line-of-sight) Number of channels: 512 Operational Frequency: Frequency: 2.402 – 2.480GHz, ISM, 79 channels FHSS: 1100 hops / sec Modulation method: GFSK Maximum Transmit Power: 22dBm Receiver Sensitivity: -93dBm 32-bit ARM Processor, DMA transfer without delay USB Type A DMX connector One-touch button with a Tri-color status indicator Groups and dmx protocols easy selection Integrated antenna |
| Power supply | Input voltage: 5VDC with USB Type-A Max Power: 350 mA@5V DC |
| Weight and dimensions | Weight: 60g Dimensions: 40x20x10 mm |
